DWG10 SERIES DIRECTIONAL VALVES - 4DWG10E30DC12NZ5L
DWG10 SERIES DIRECTIONAL VALVES - 4DWG10E30DC12NZ5L
Regular price
$189.87 USD
Regular price
$256.95 USD
Sale price
$189.87 USD
Unit price
per
We Will Update Once Inventory Is Available.
Please Use Contact Form for Whole Sale or Pricing Quote.

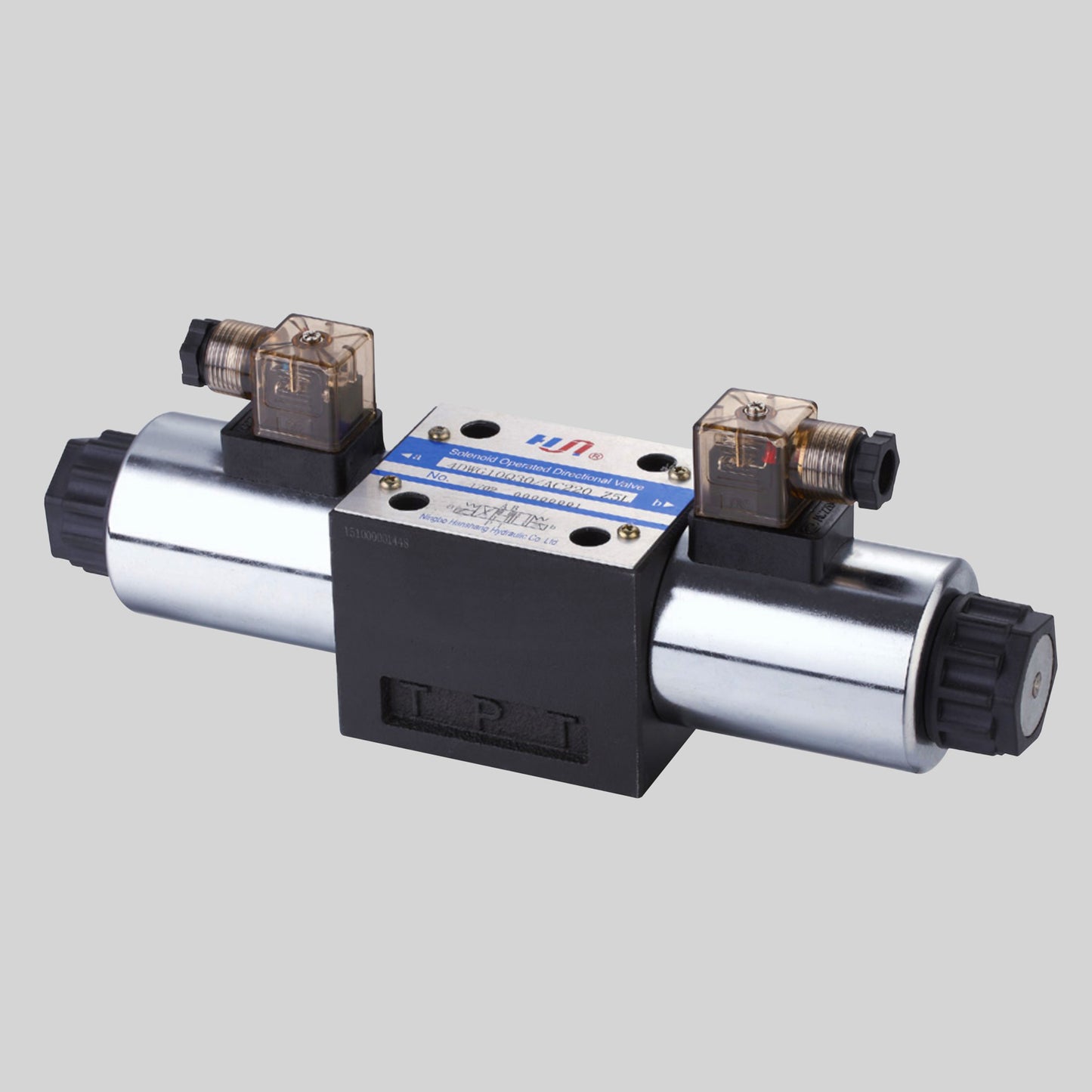

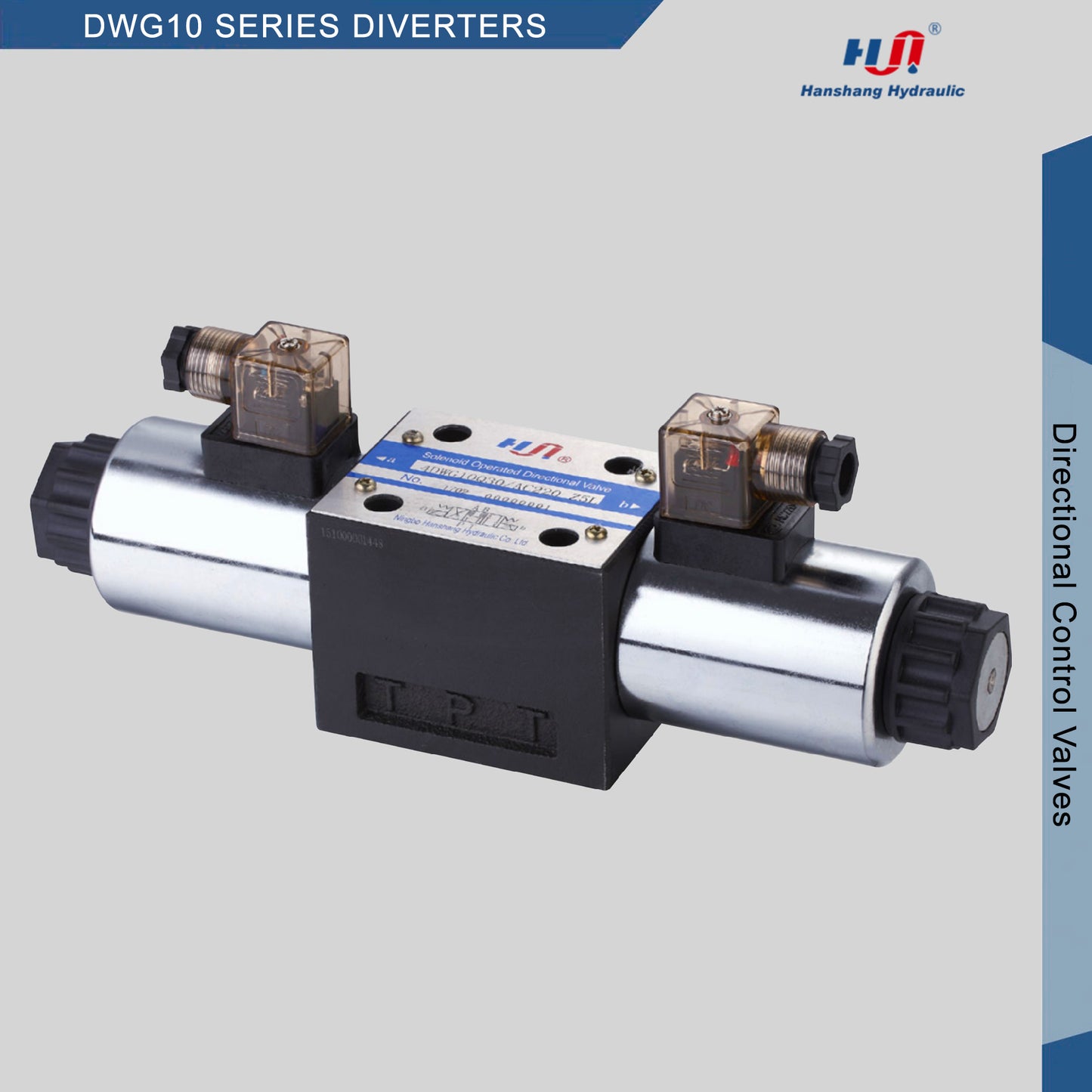

DWG10 SERIES SOLENOID OPERATED DIRECTIONAL CONTROL VALVES
DWG10 series directional control valves are solenoid operated directional spool valves, these valves are used to the start, stop and direct flow.
DWG10 series directional control valves are solenoid operated directional spool valves, these valves are used to the start, stop and direct flow.

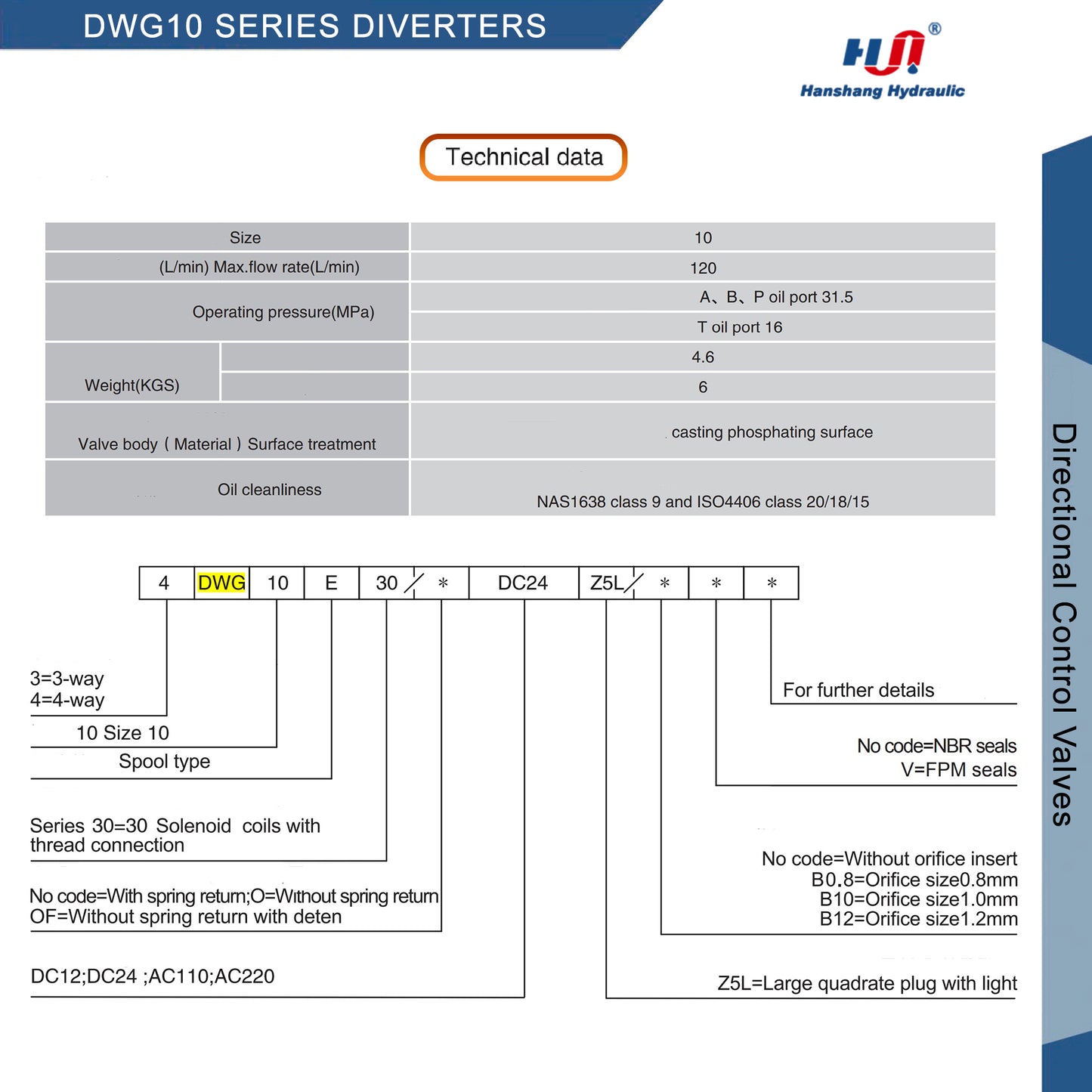

- Size: 10
- Max flow rate(L/min): 120 L/min
- Operating pressure(MPa): A、B、P oil port 31.5 MPa, T oil port 16 MPa
- Weight Single Head: Without Handle 4.6 KG
- Weight Double Head: Without Handle 6 KG
- Valve body（Material）Surface treatment: casting phosphating surface
- Oil cleanliness: NAS1638 class 9 and ISO4406 class 20/18/15
- Voltage: DC12, AC110
- Series 60 Solenoid Coil
- Large Quadrata Plug with Light
