DWG6 SERIES DIRECTIONAL VALVES - 4DWG6E60DC12NZ5
DWG6 SERIES DIRECTIONAL VALVES - 4DWG6E60DC12NZ5
Regular price
$139.87 USD
Regular price
$169.95 USD
Sale price
$139.87 USD
Unit price
per
We Will Update Once Inventory Is Available.
Please Use Contact Form for Whole Sale or Pricing Quote.

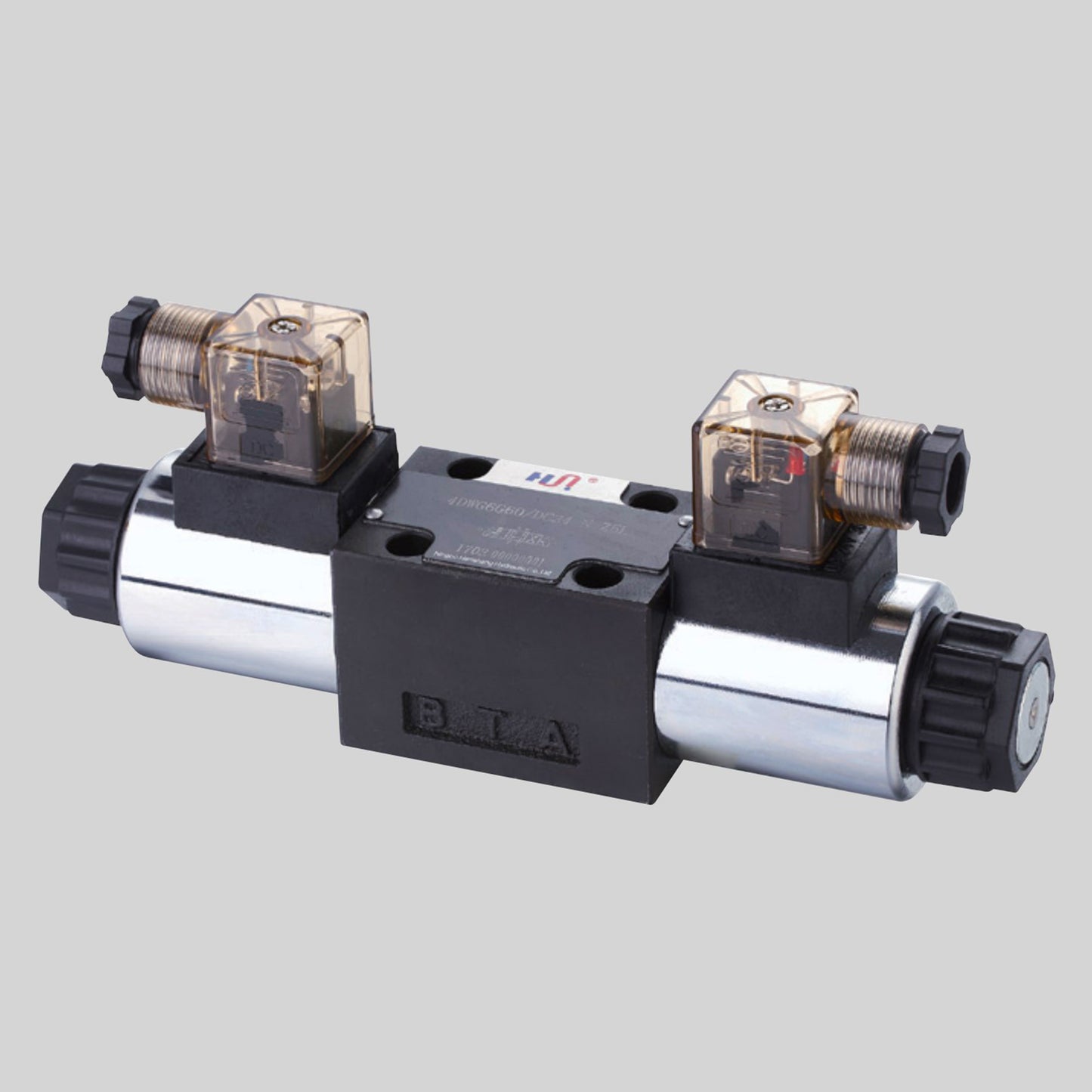

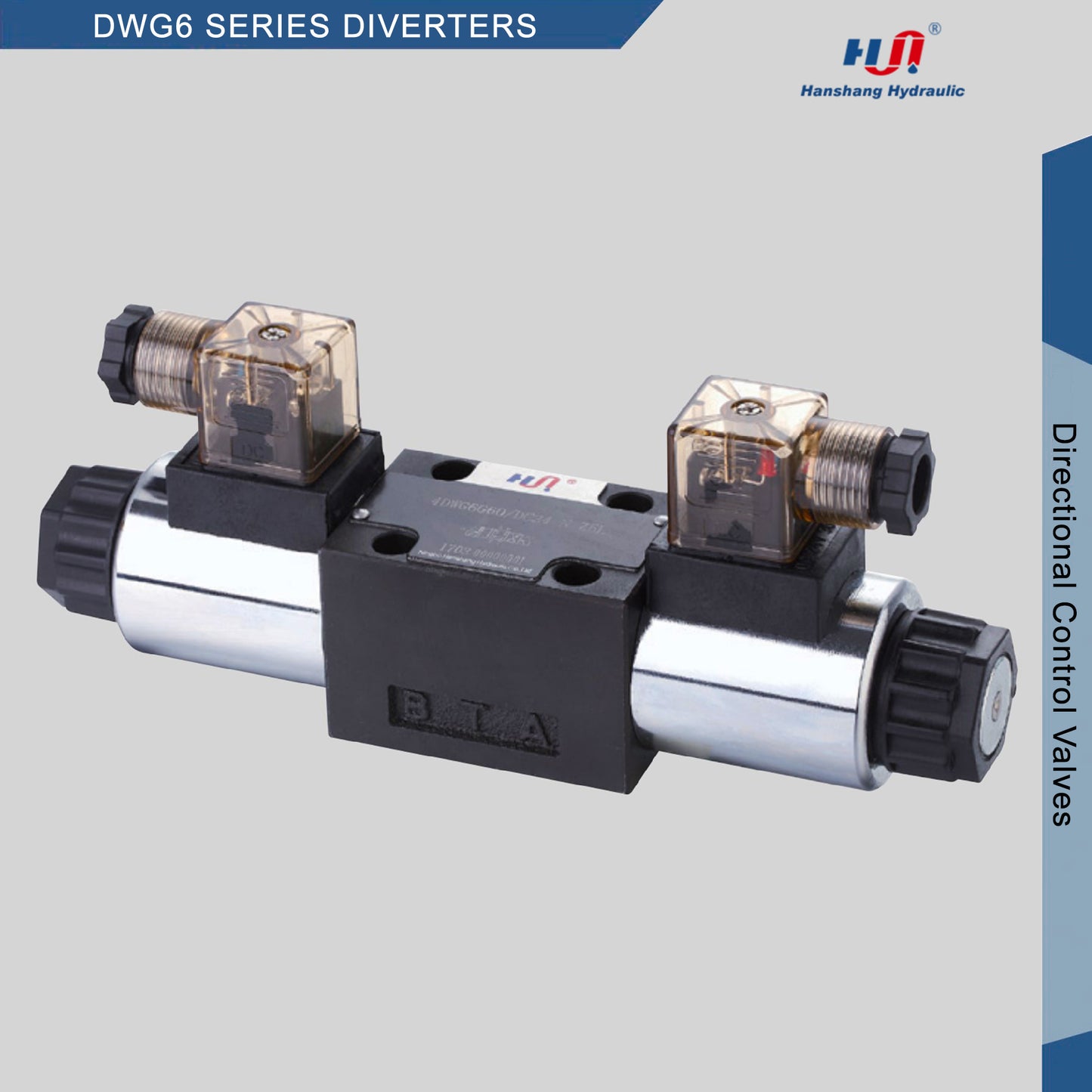

DWG6 SERIES SOLENOID OPERATED DIRECTIONAL CONTROL VALVES
DWG6 series directional control valves are solenoid operated directional spool valves ,these valves are used to the start ,stop and direct flow
DWG6 series directional control valves are solenoid operated directional spool valves ,these valves are used to the start ,stop and direct flow

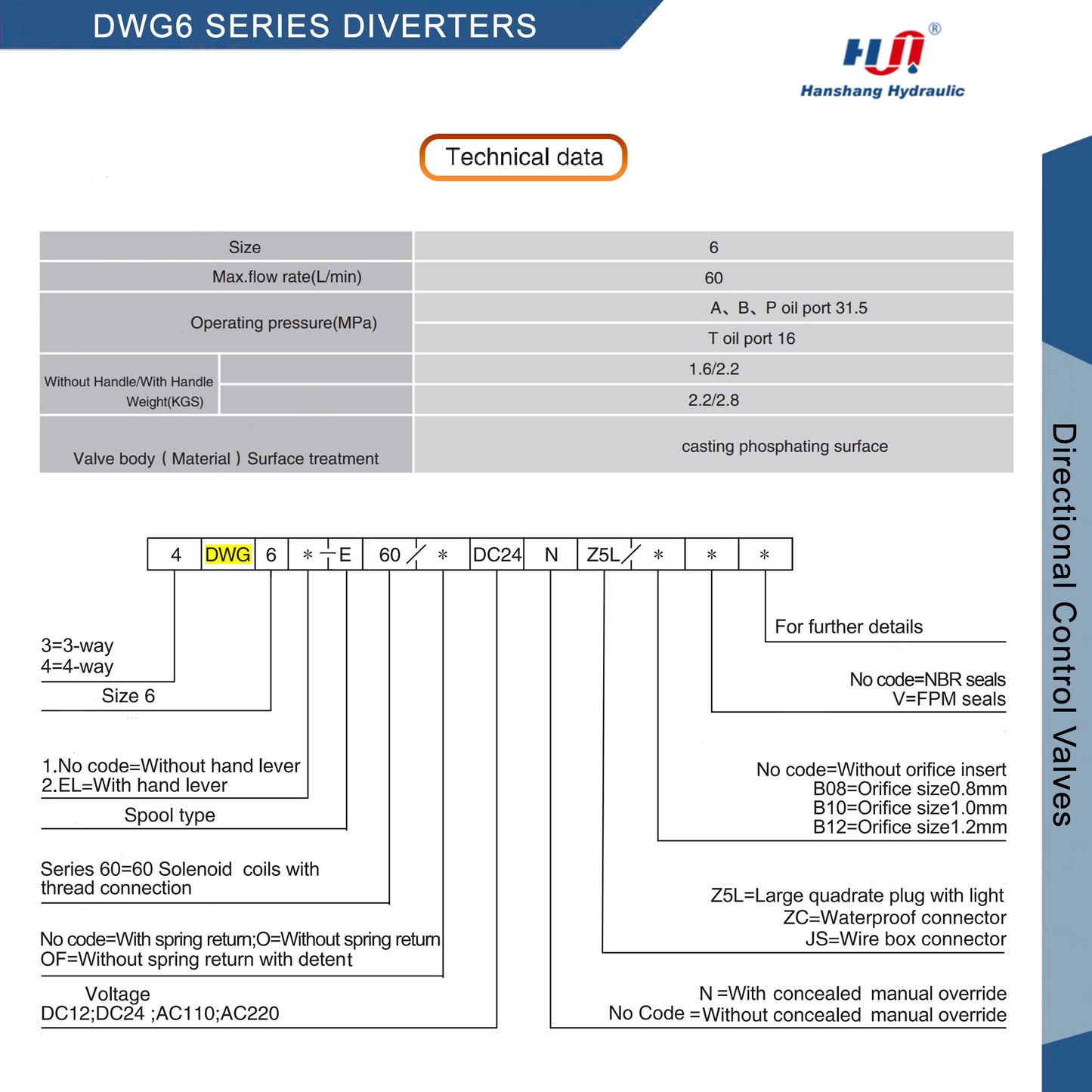

- Size: 6
- Max. flow rate(L/min): 60 L/min
- Operating pressure(MPa): A?B?P oil port 31.5 MPa, T oil port 16 MPa
- Weight Double Head: Without Handle 2.2 KG
- Valve body(Material)Surface treatment: casting phosphating surface
- Voltage: DC12, AC110
- Series 60 Solenoid Coil
- Large Quadrata Plug with Light
