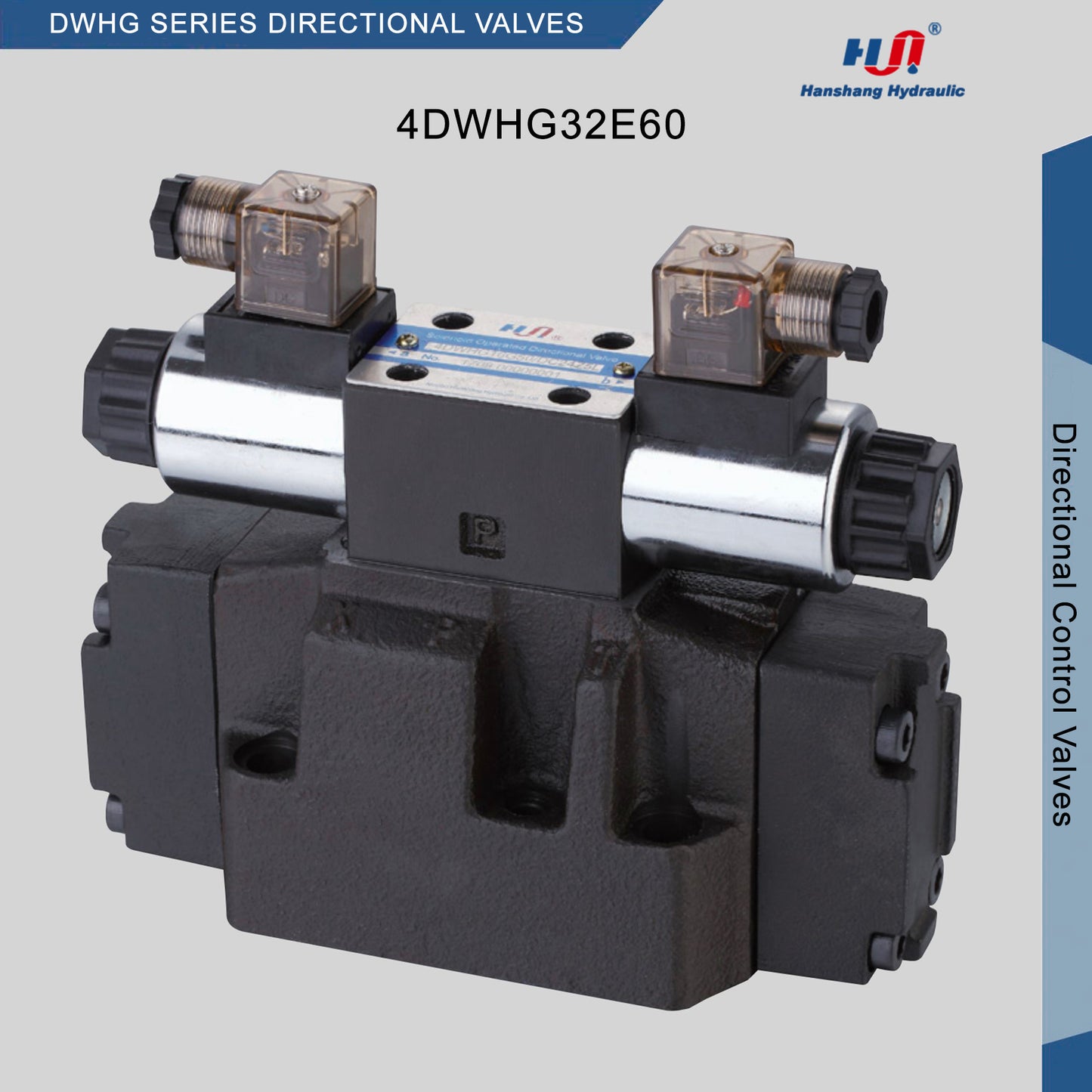

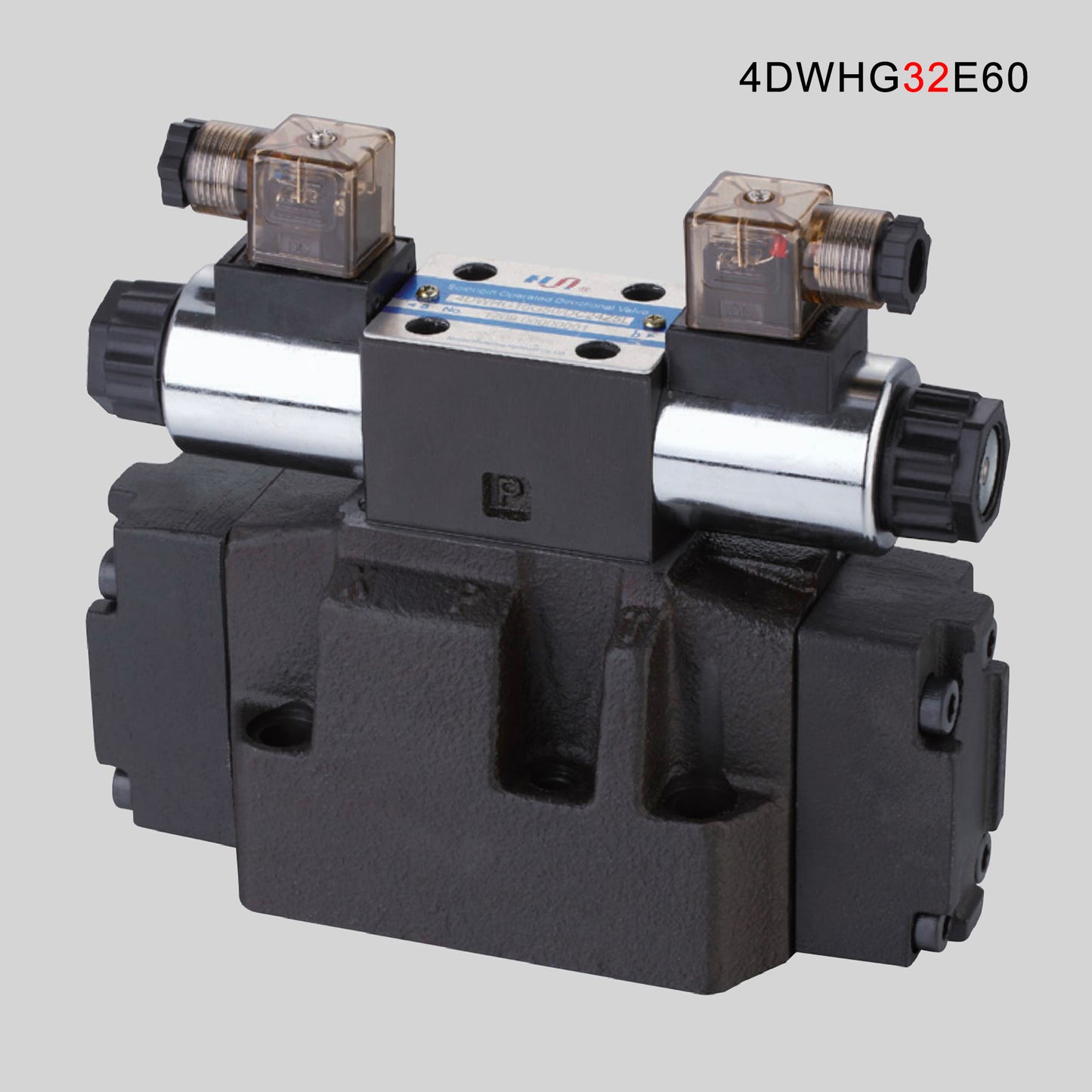

DWHG SERIES DIRECTIONAL VALVE - 4DWHG32E60DC24NZ5L

DWHG SERIES SOLENOID PILOT OPERATED DIRECTIONAL VALVES

DWHG series are solenoid pilot operated spool type valves . This series are used to control the start ,stop and direction of flow.

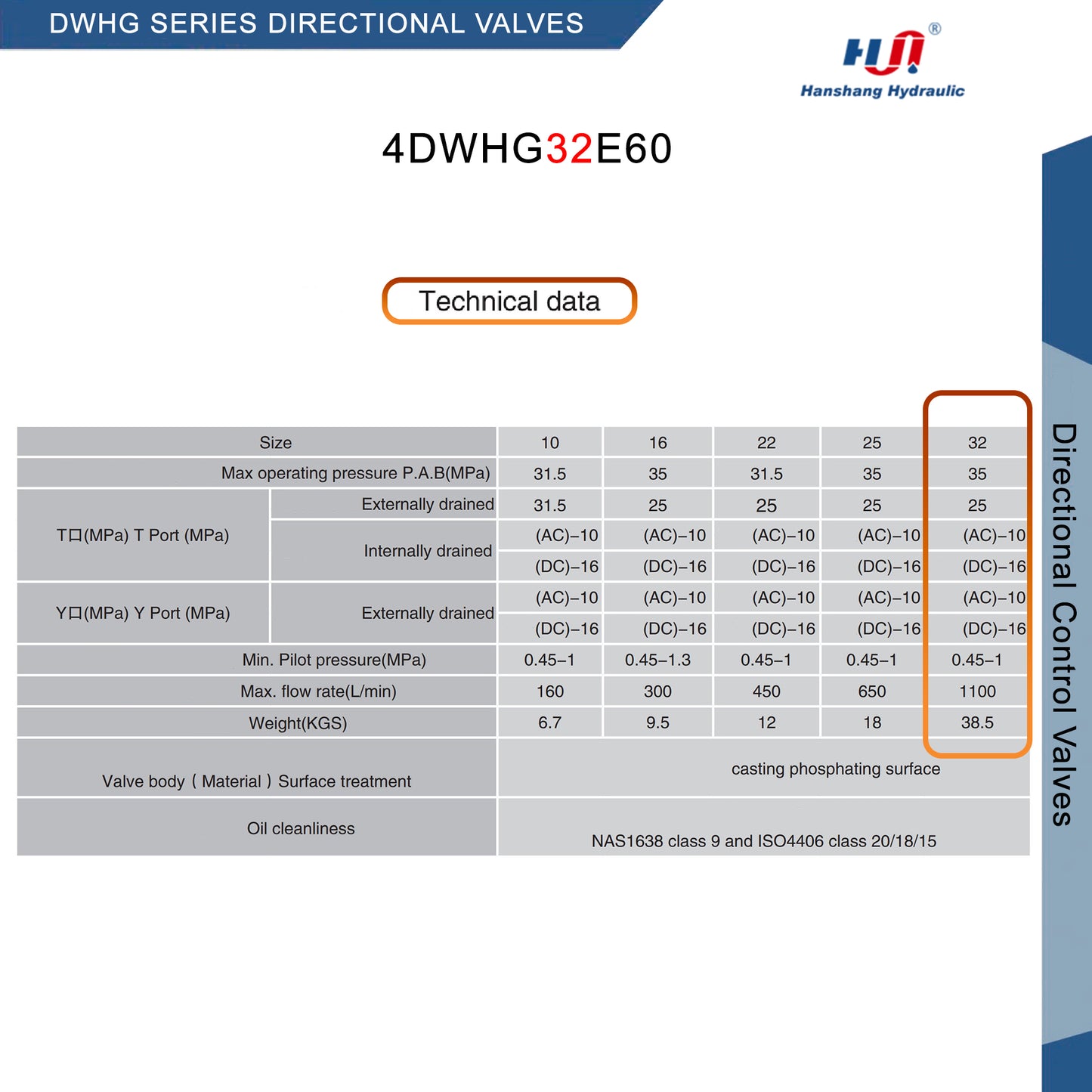

• Size: 32
• Max operating pressure P.A.B(MPa): 35 MPa
• T Port (MPa): Externally drained 25 MPa
• T Port (MPa): Internally drained AC 10 MPa, DC 16 MPa
• Y Port (MPa): Externally drained AC 10 MPa, DC 16 MPa
• Min. Pilot pressure(MPa): 0.45-1 MPa
• Max. flow rate(L/min): 1100 L/min
• Weight(KGS): 38.5 KG
• Valve body(Material)Surface treatment: casting phosphating surface
• Oil cleanliness: NAS1638 class 9 and ISO4406 class 20/18/15

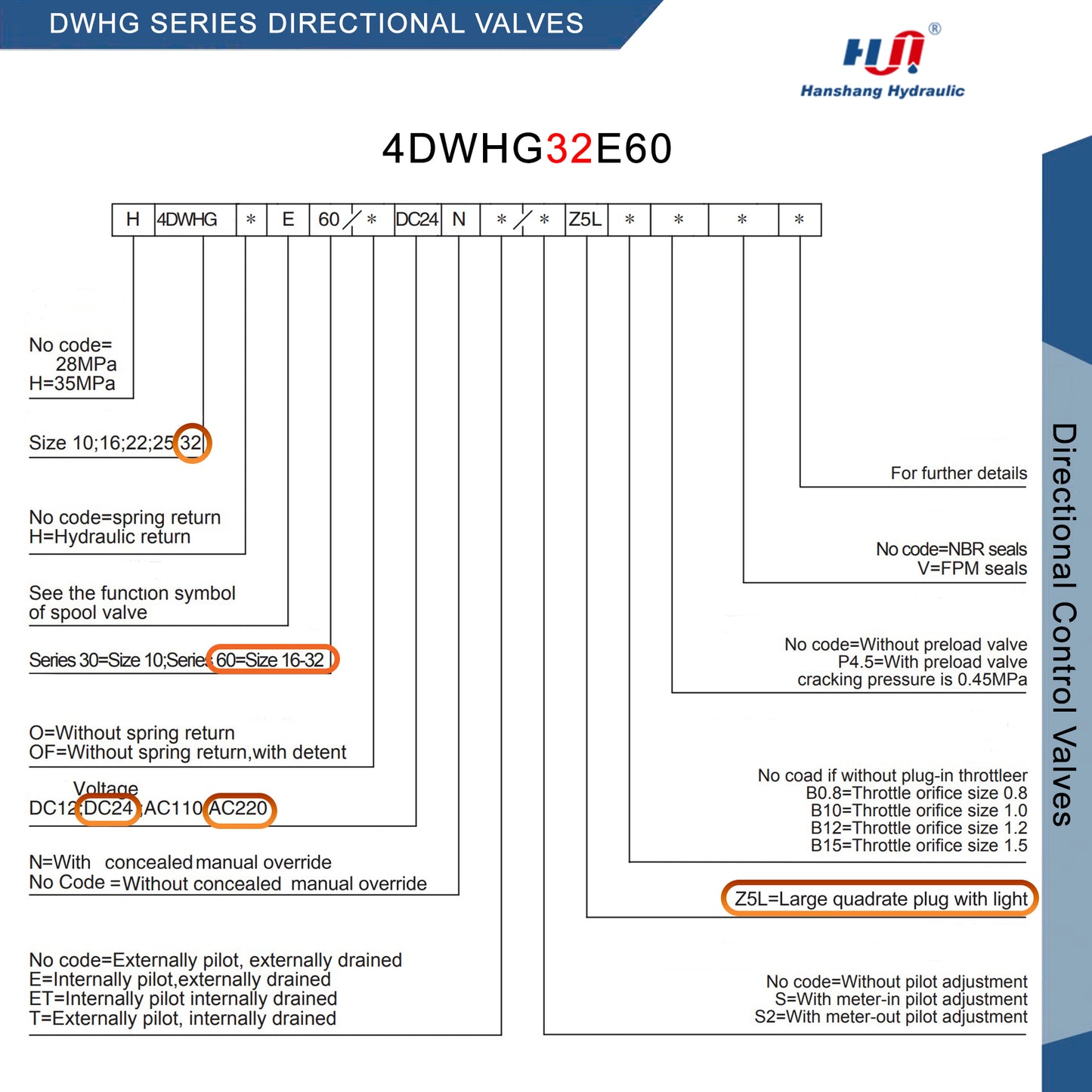

• Series 60: Size 16-32
• Voltage: DC24
• Z5L: Large Quadrate Plug with Light
