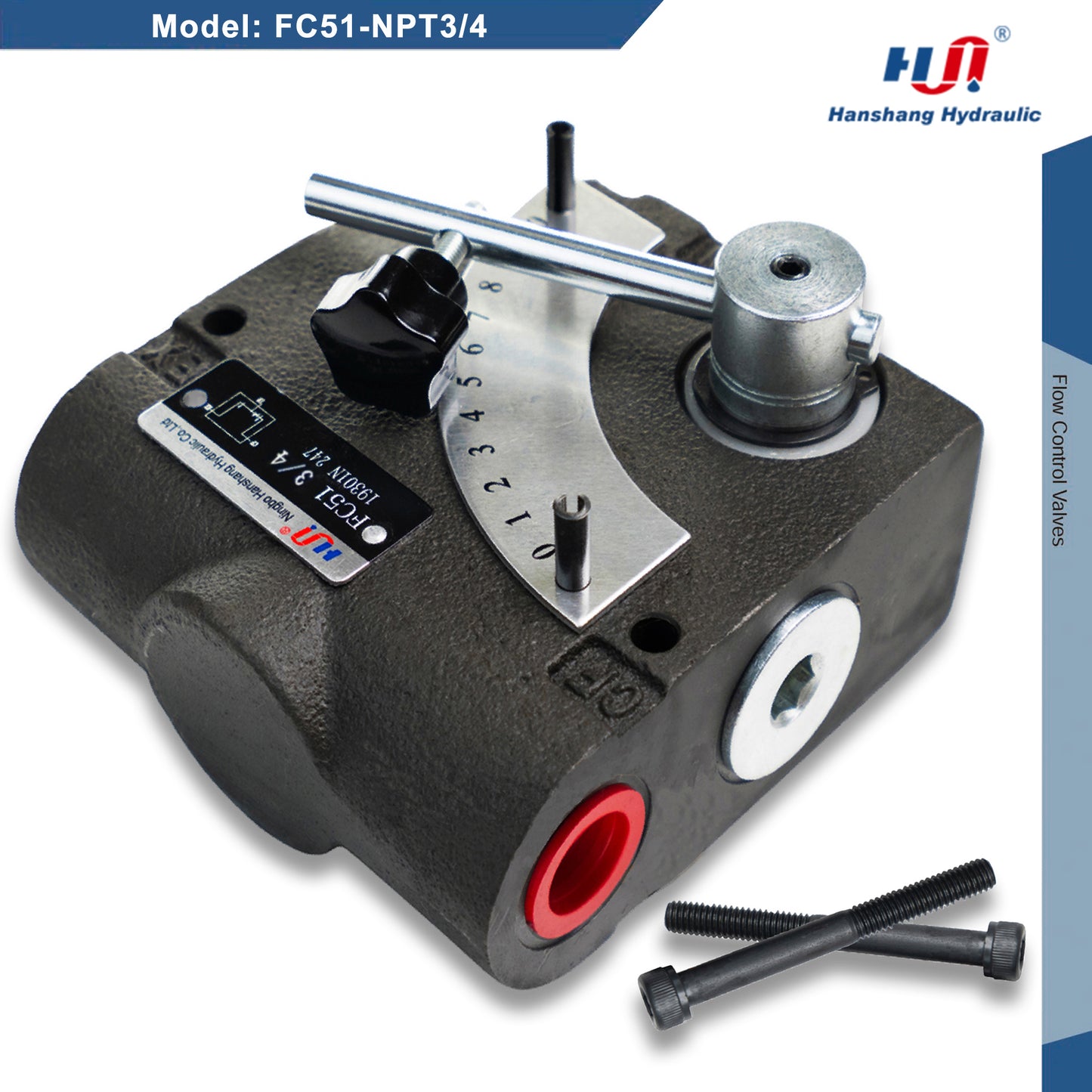

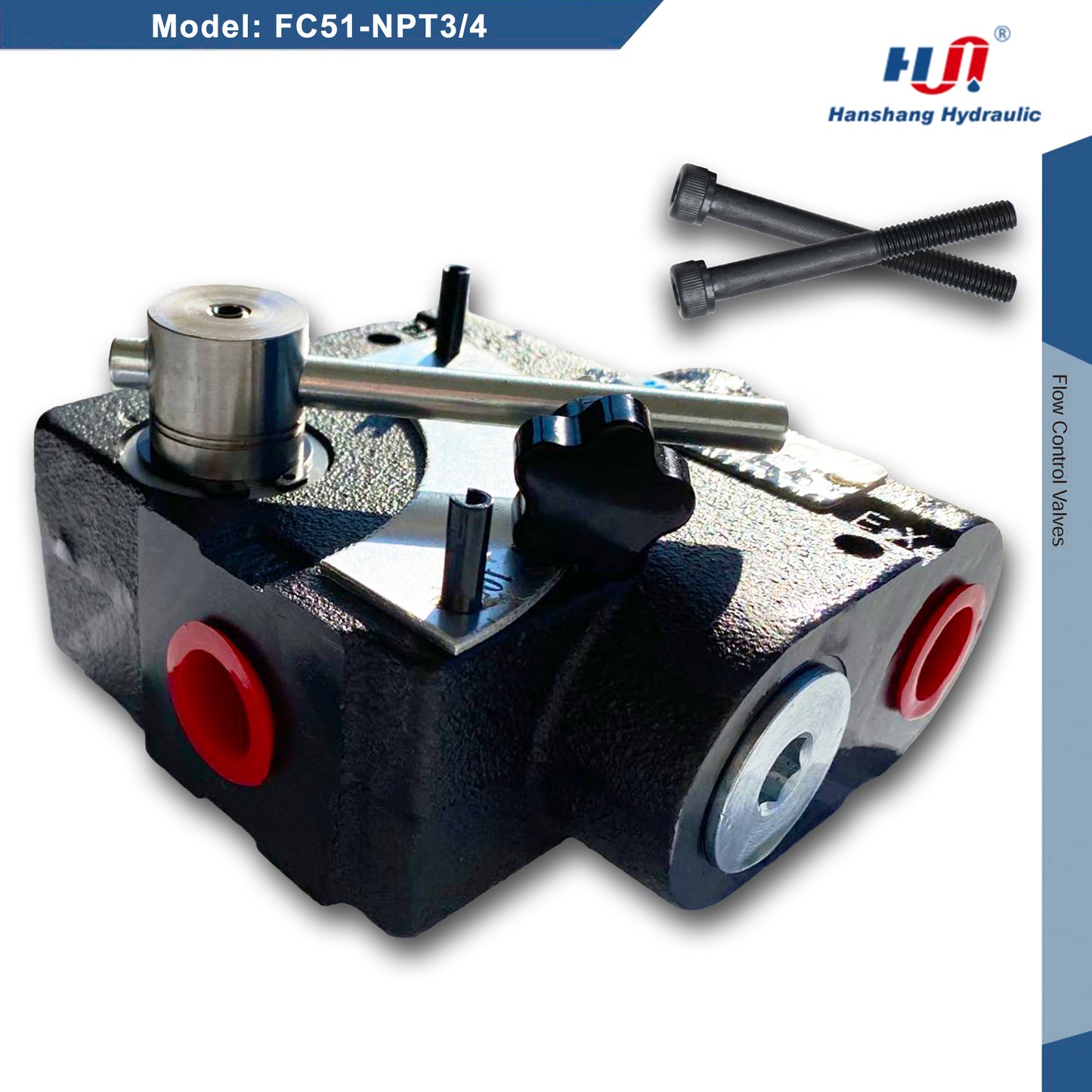

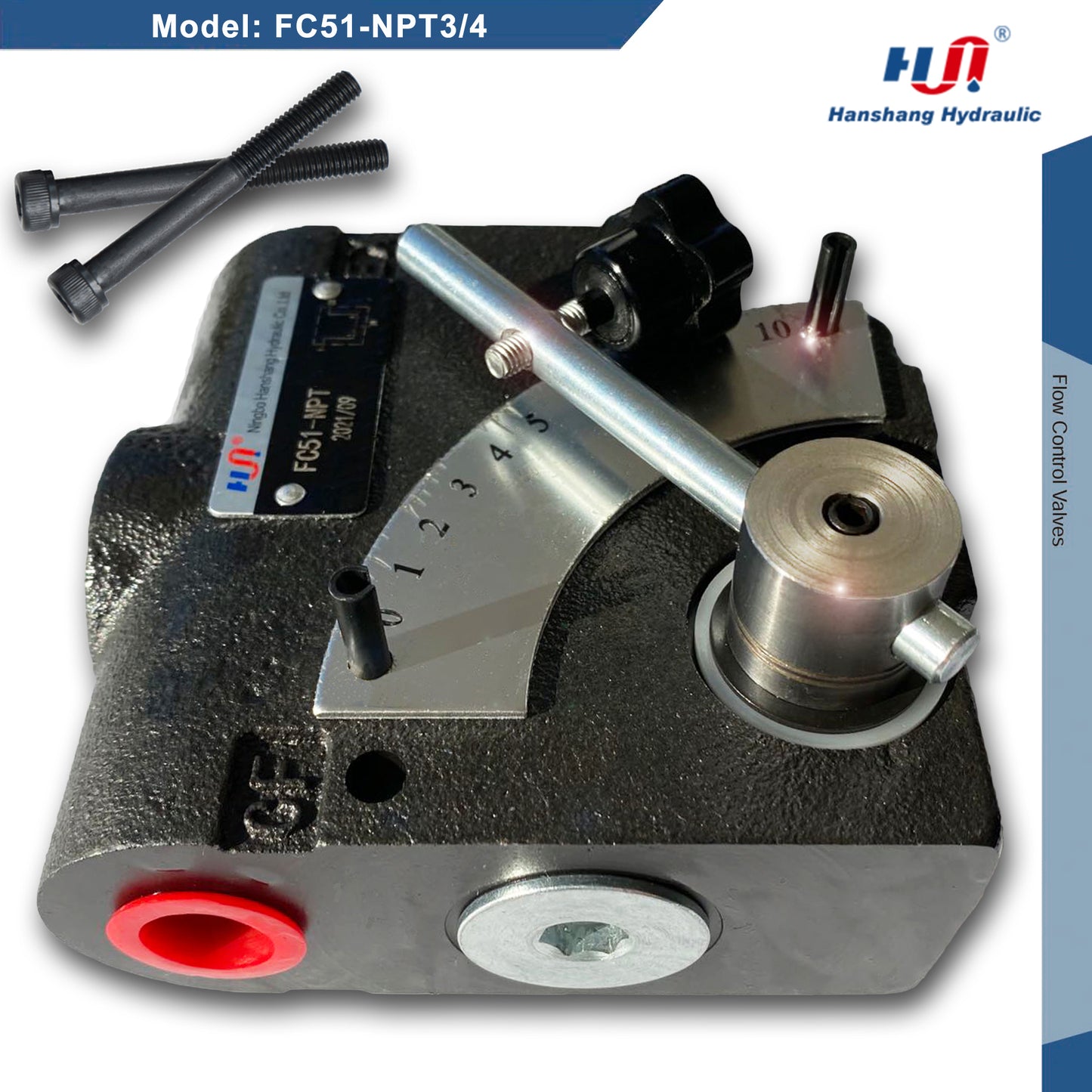

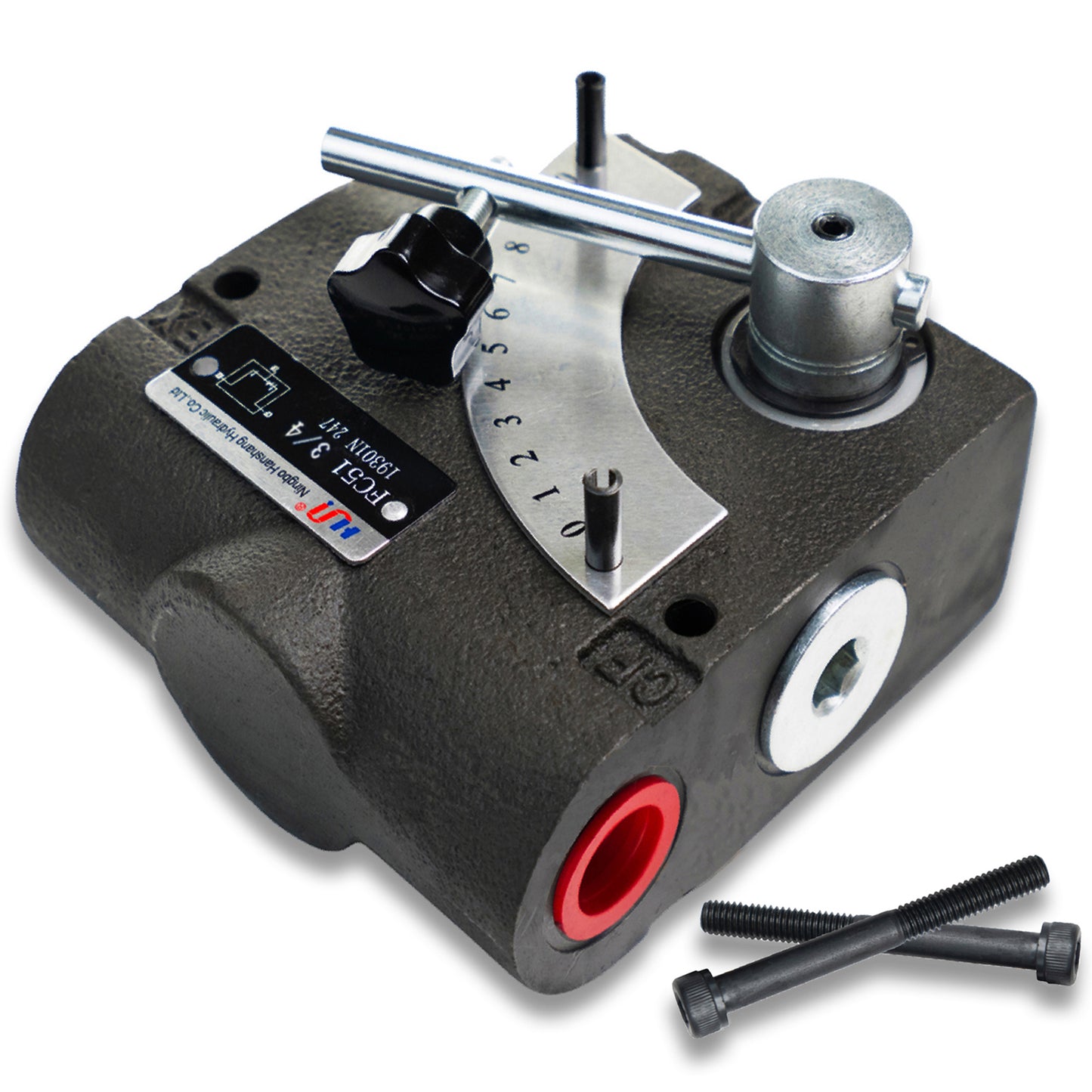

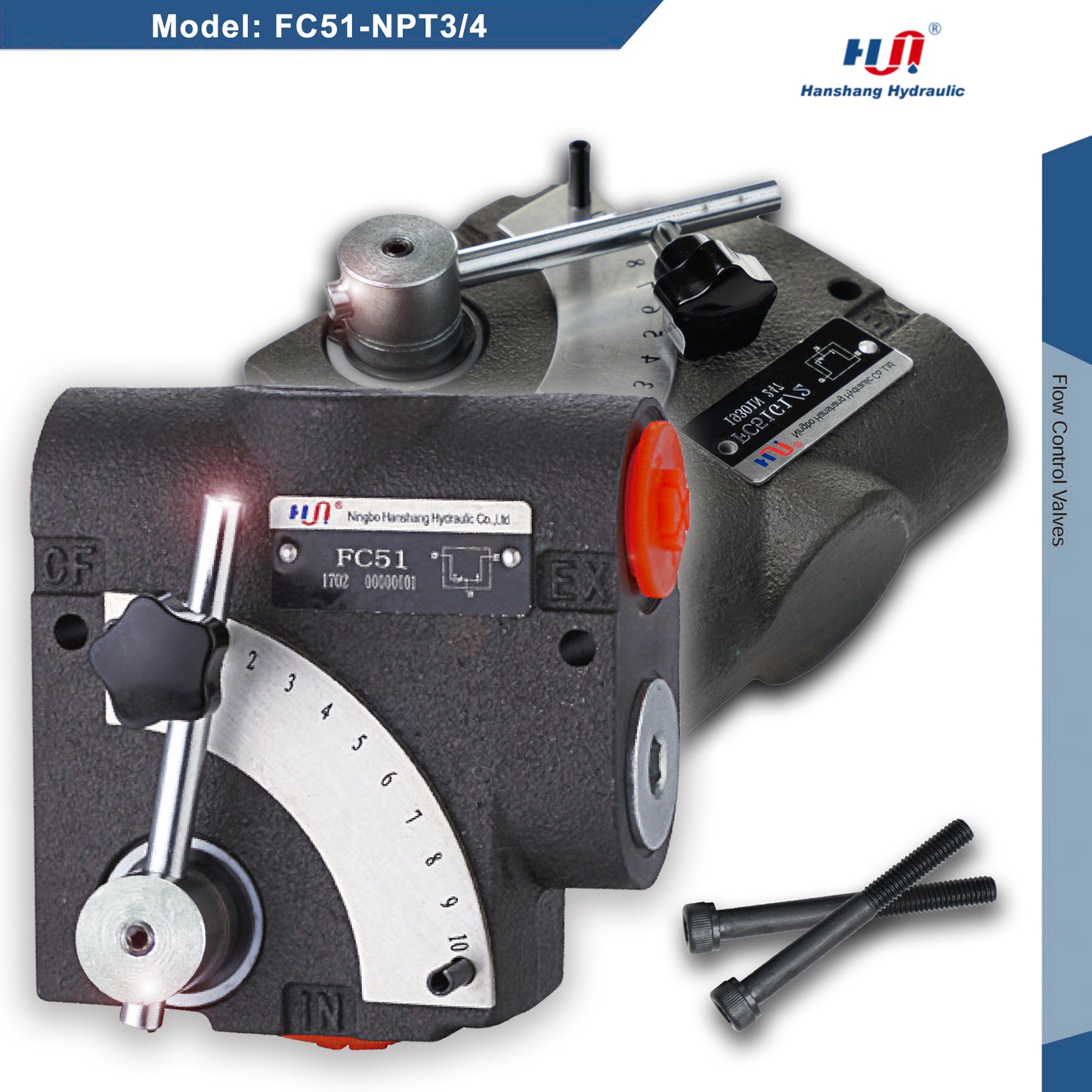

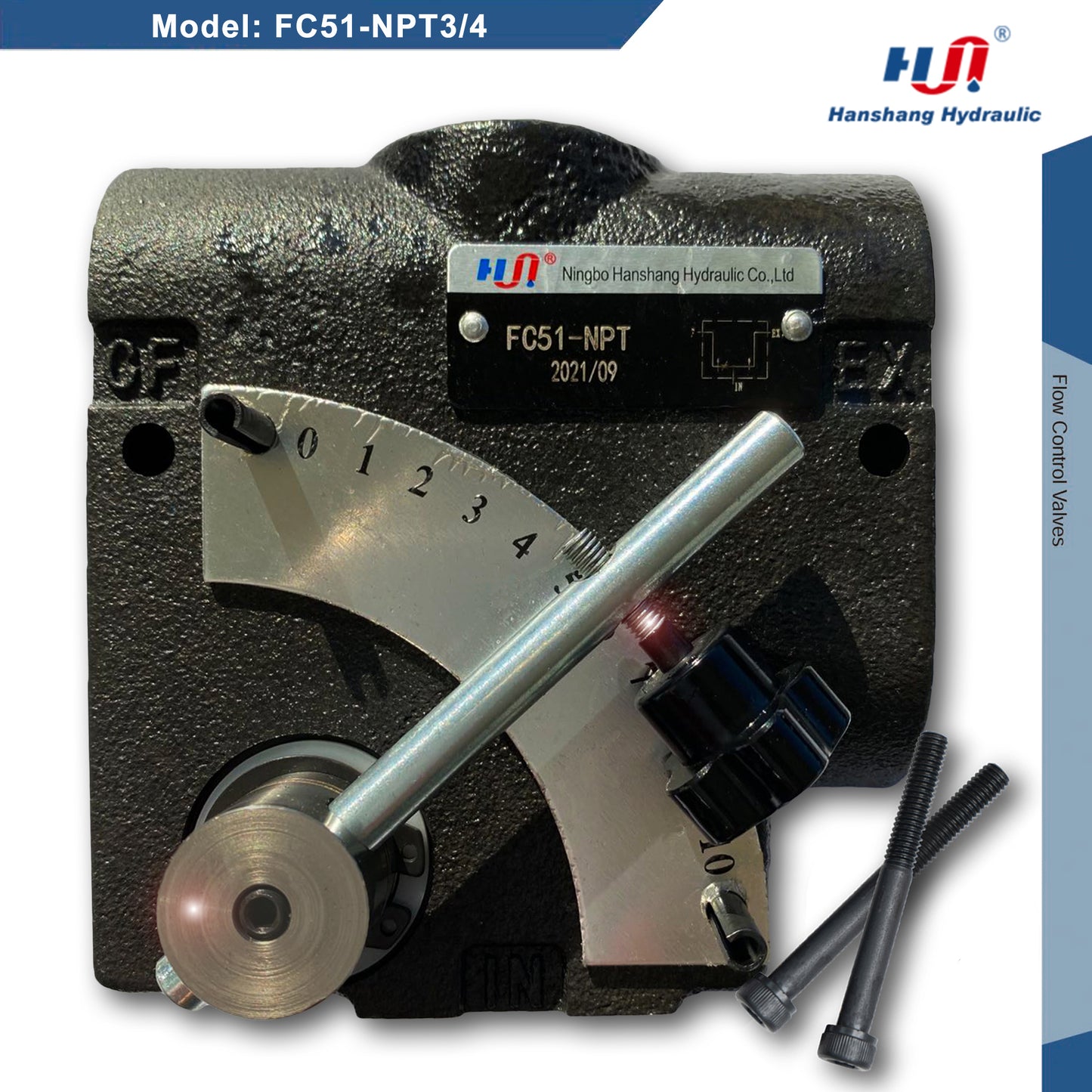

FC51-NPT3/4 Adjustable Flow Directional Control Valve

FC51-NPT3/4 Adjustable Flow Directional Control Valve

$84.87 USD
$135.95 USD $84.87 USD
Sale Sold out

We Will Update Once Inventory Is Available.

Please Use Contact Form for Whole Sale or Pricing Quote.

  • Side-ported adjustable flow control valve used to stop or start a hydraulic motor or cylinder
  • Excess flow will be returned to tank or or used to power another function, Durable and Safe Cast Iron Body
  • Can vary speed over wide range, will maintain constant speed evenly regardless of load variation after setting
  • Replacement directly for FC51-3/4

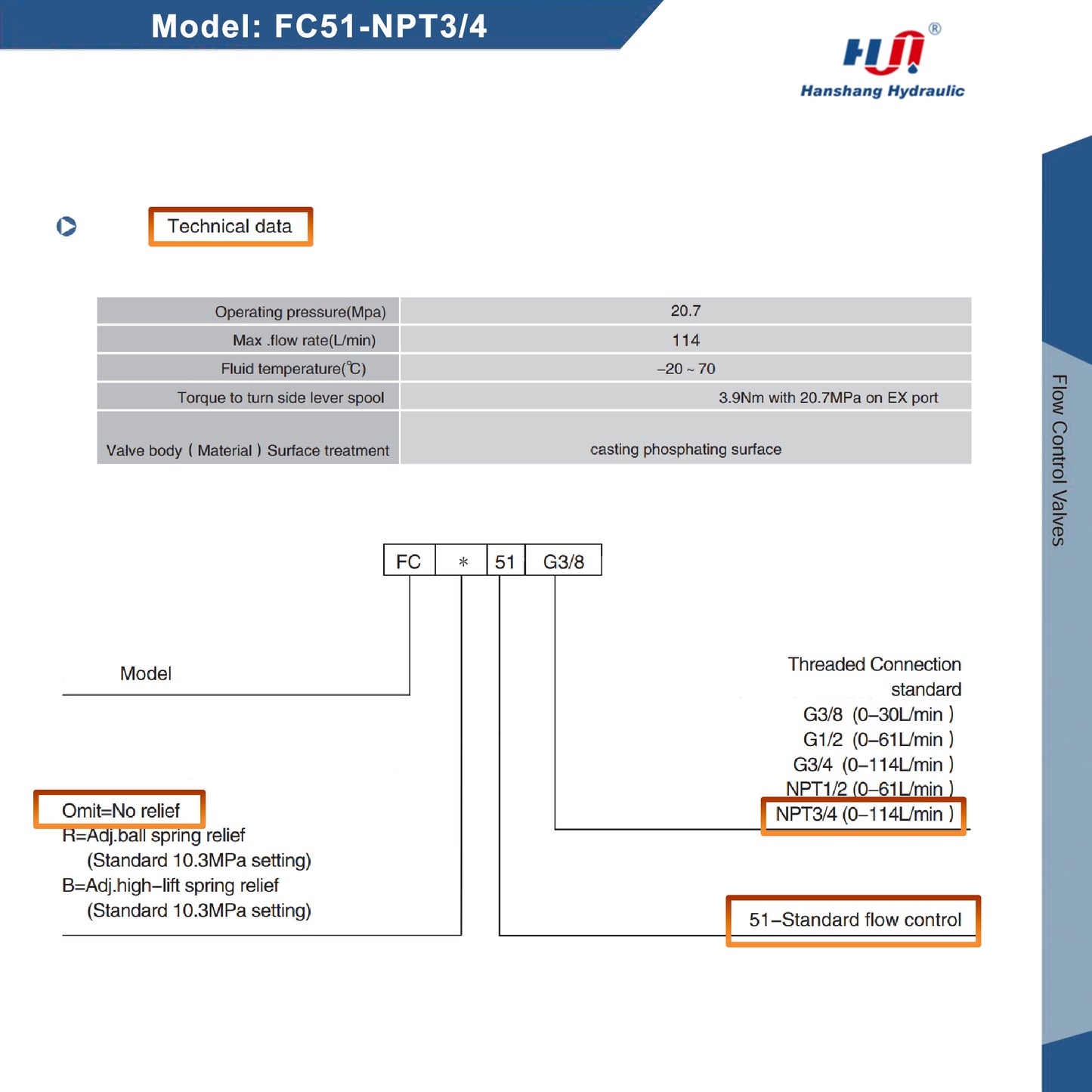

  • Max Flow Rate: 30 GPM, adjustable Flow Rate: From 0 to 30 GPM, Weight: 5 LB
  • Port Size: 3/4” NPT, Max Working Pressure: 3002.28 PSI / 20.7 Mpa

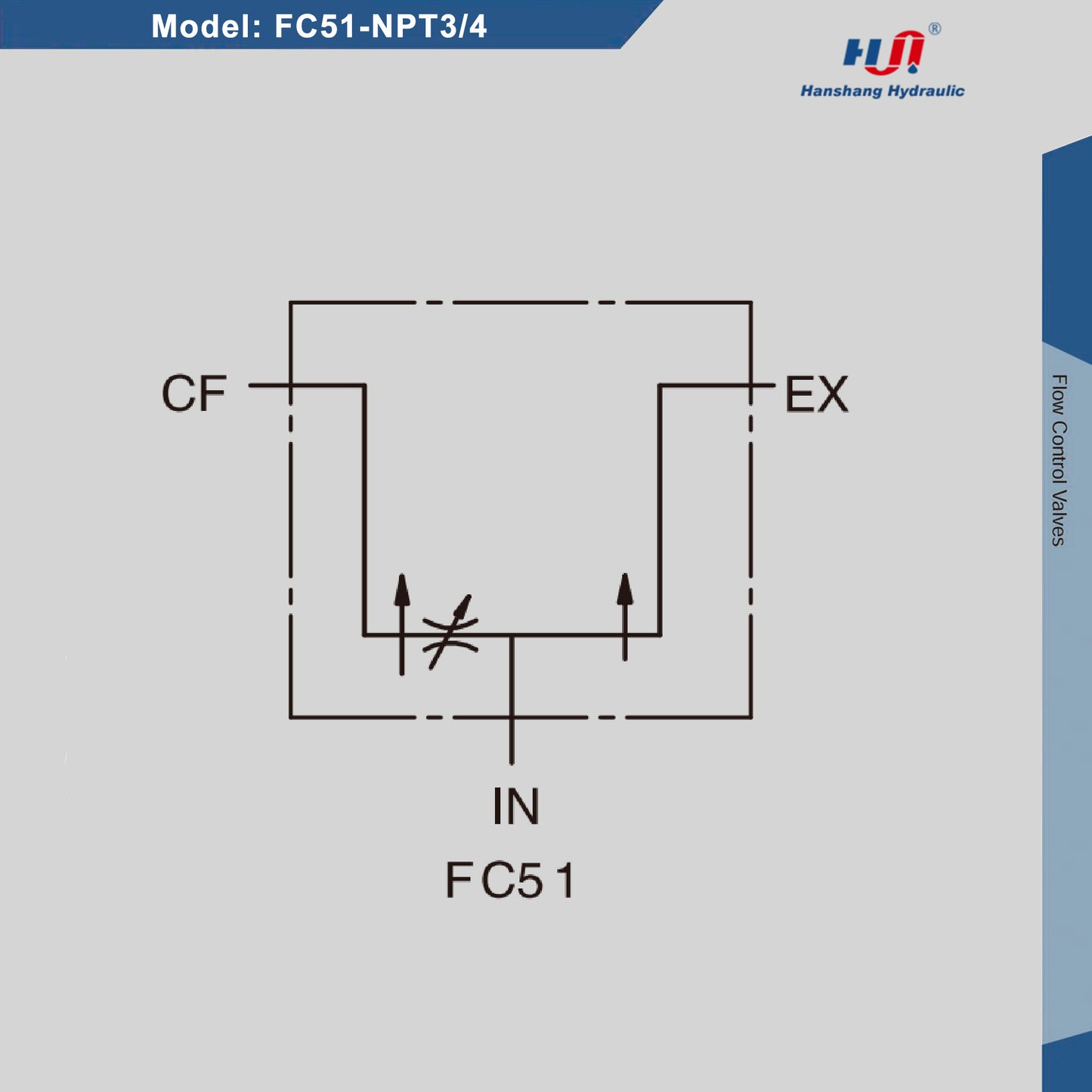

  • Port IN ( Inlet Port )
  • Port CF ( Controlled Flow ): Flow from this port is pressure compensated and proportional. Depending on the position of the lever, the flow can be from closed to fully open
  • Port EX ( Excess Flow ): Outflow from this port if pressure compensated. If the lever is set to 0, all traffic will flow out of this port

Materials

Shipping & Returns

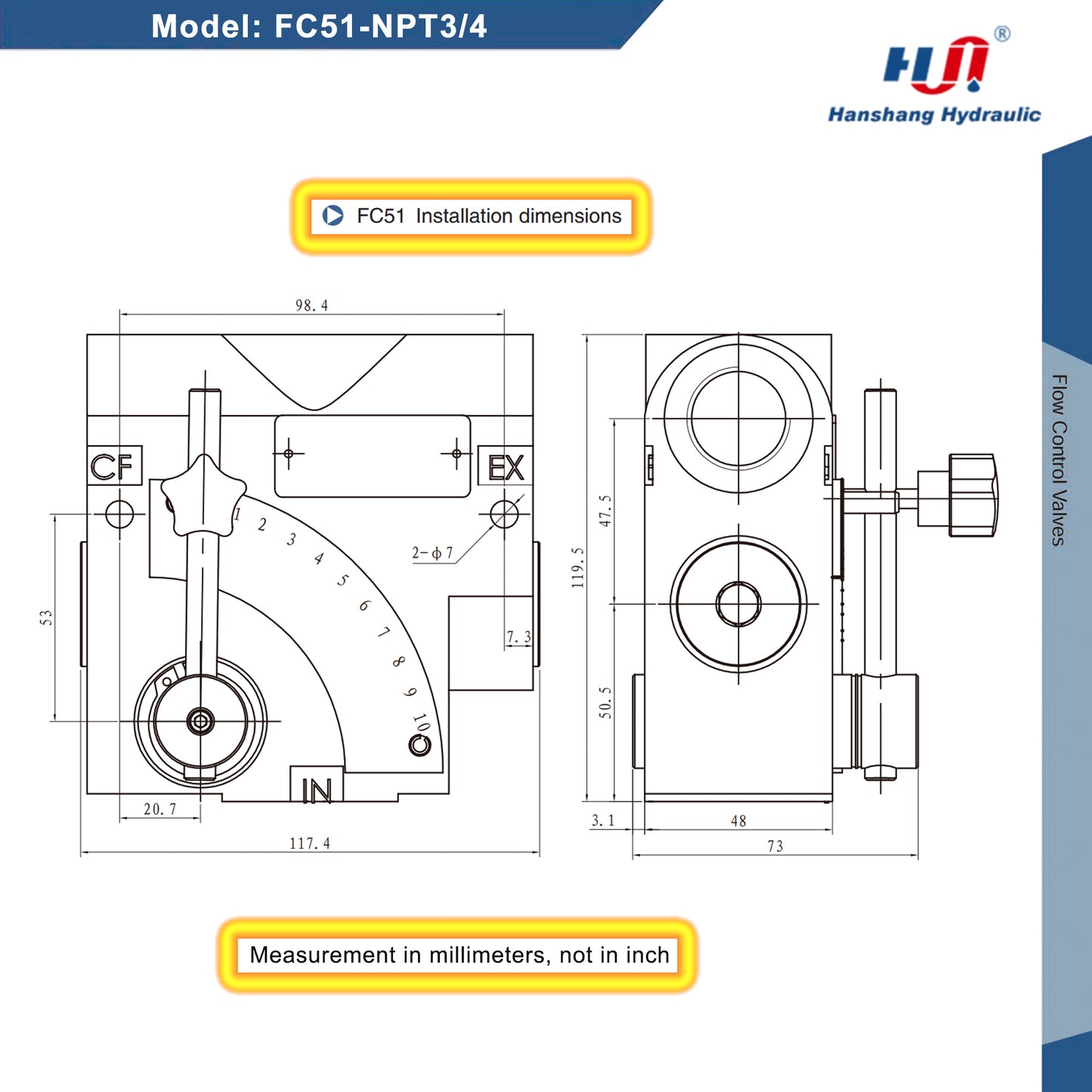

Dimensions
