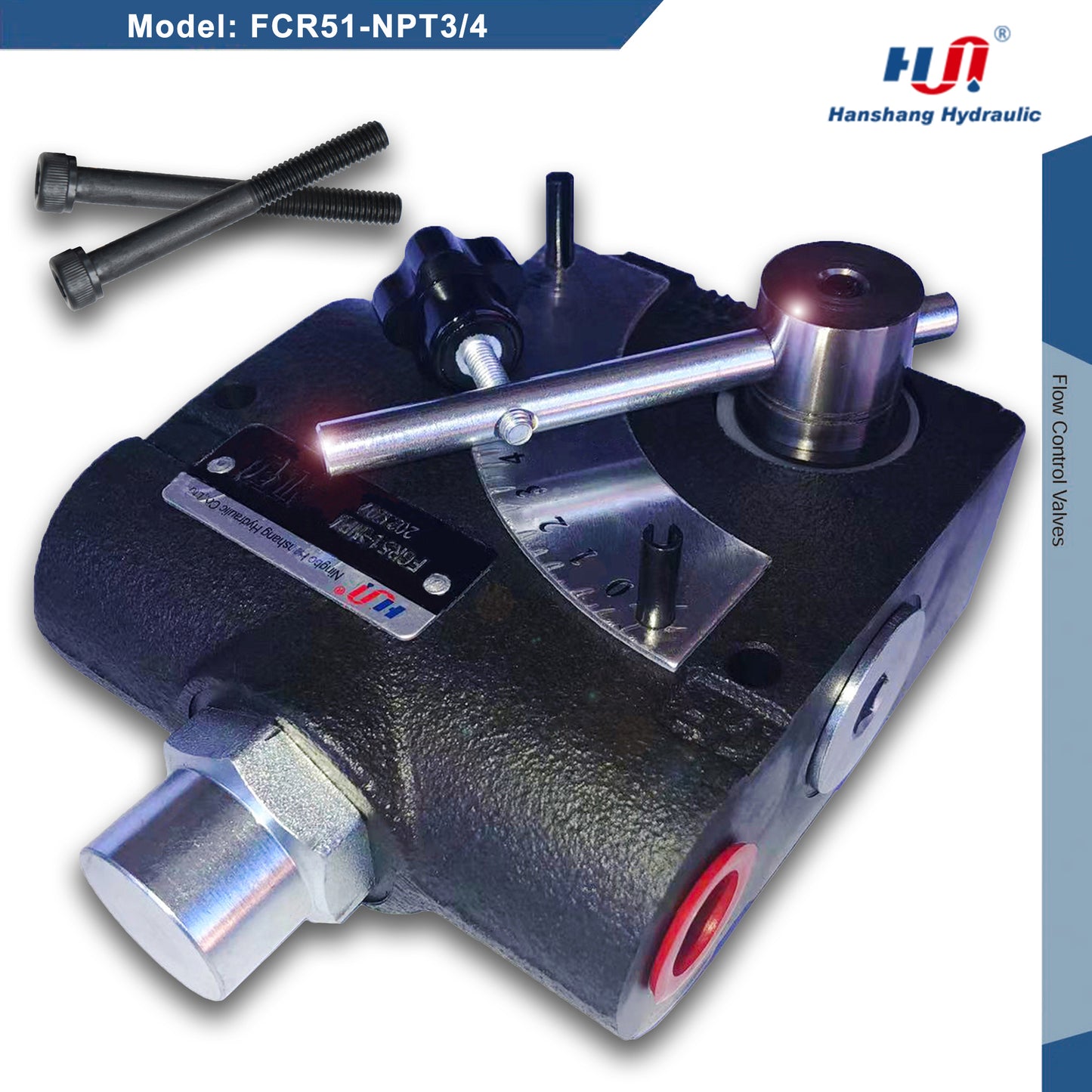

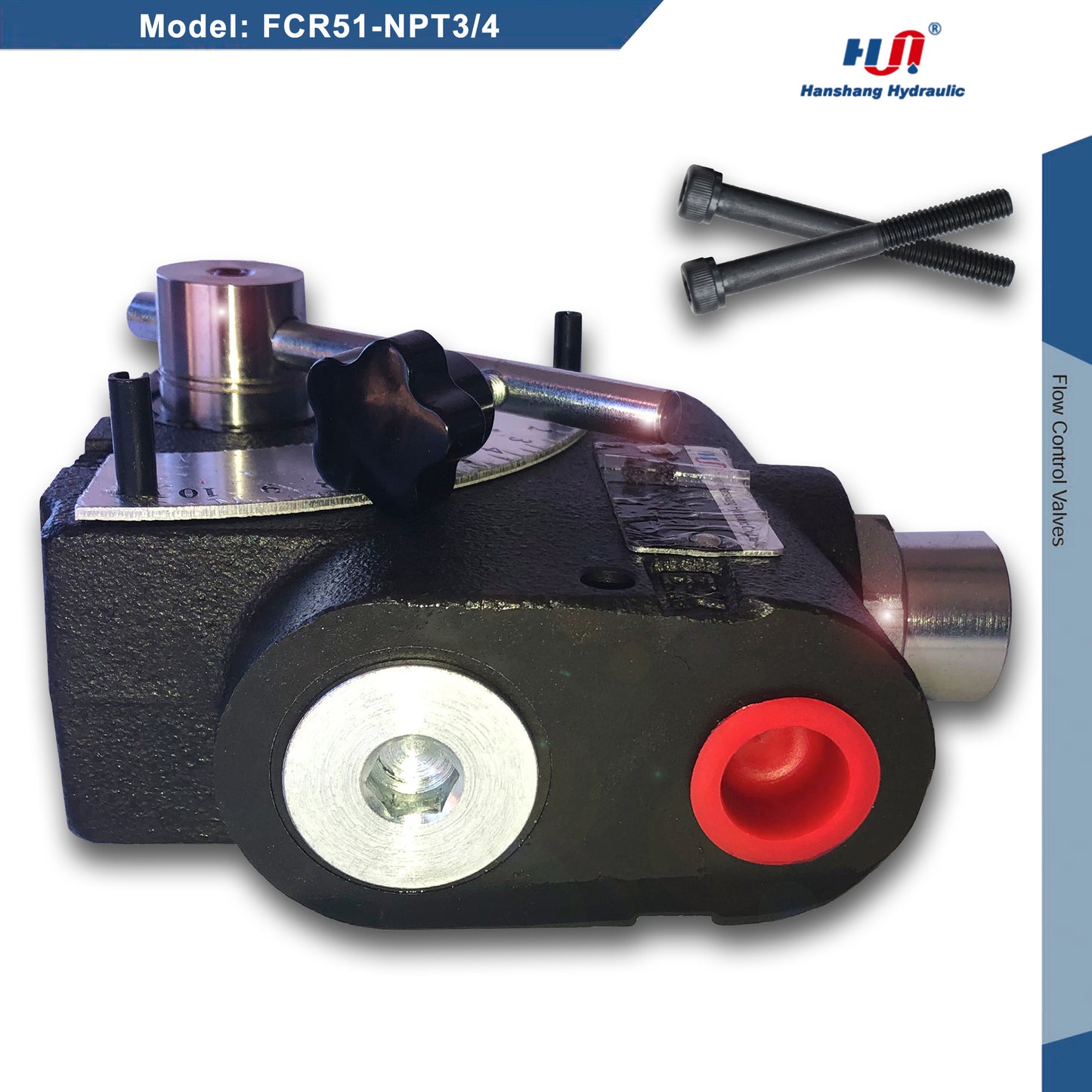

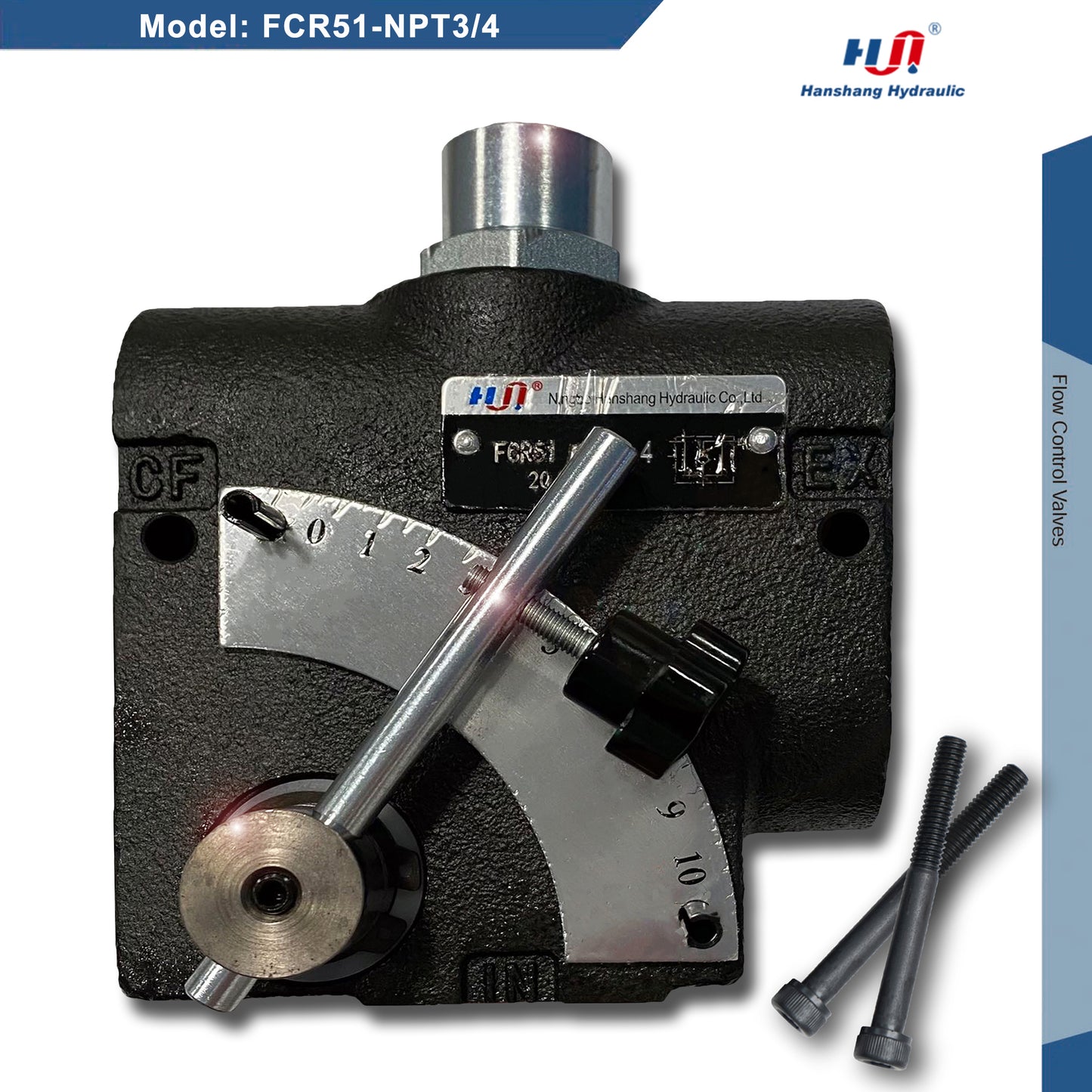

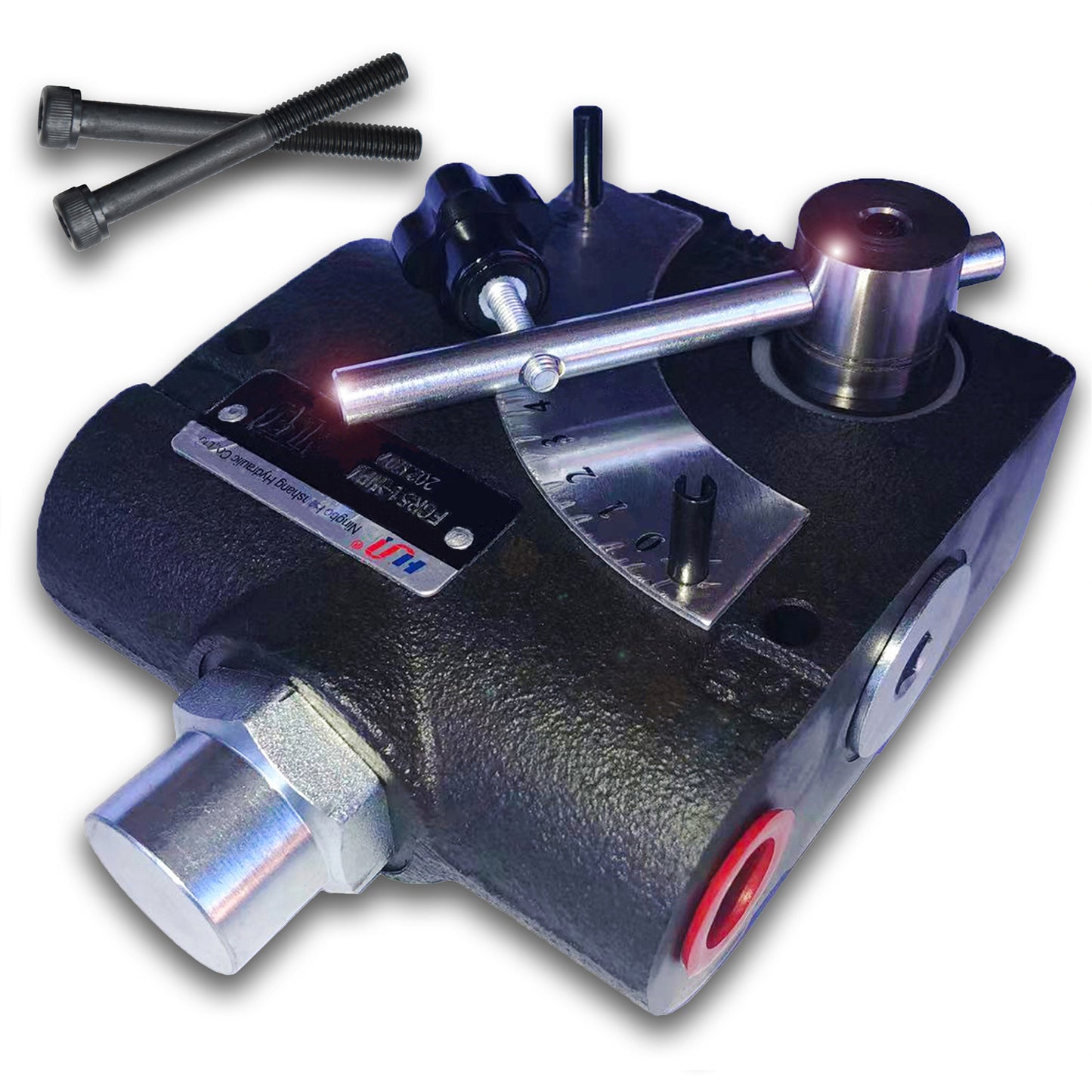

FCR51-NPT3/4 Hydraulic Adjustable Flow Directional Control Valve with Relief

FCR51-NPT3/4 Hydraulic Adjustable Flow Directional Control Valve with Relief

Regular price $89.87 USD
Regular price $145.95 USD Sale price $89.87 USD
Sale Sold out

We Will Update Once Inventory Is Available.

Please Use Contact Form for Whole Sale or Pricing Quote.

  • Side-ported adjustable flow control valve used to stop or start a hydraulic motor or cylinder
  • Top adjustable Ball Spring Relief Port, excess flow will be returned to tank or or used to power another function
  • Can vary speed over wide range, will maintain constant speed evenly regardless of load variation after setting
  • Replacement of FCR51-3/4 or PFC51-3/4, Weight: 5.9 LB, Durable and Safe Cast Iron Body,

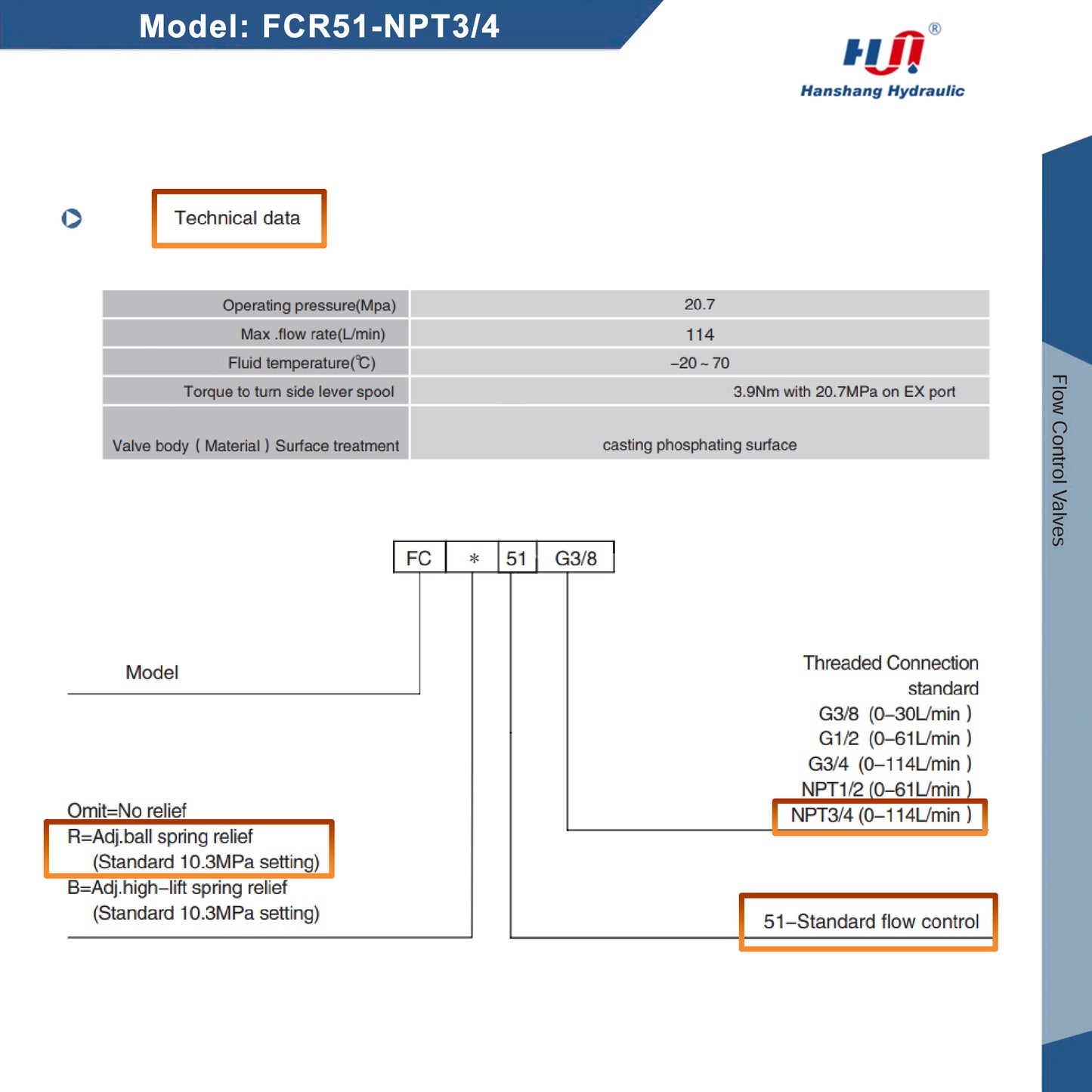

  • Max Flow Rate: 30 GPM, adjustable Flow Rate: From 0 to 30 GPM
  • Port Size: 3/4” NPT, Max Working Pressure: 3002.28 PSI / 20.7 Mpa

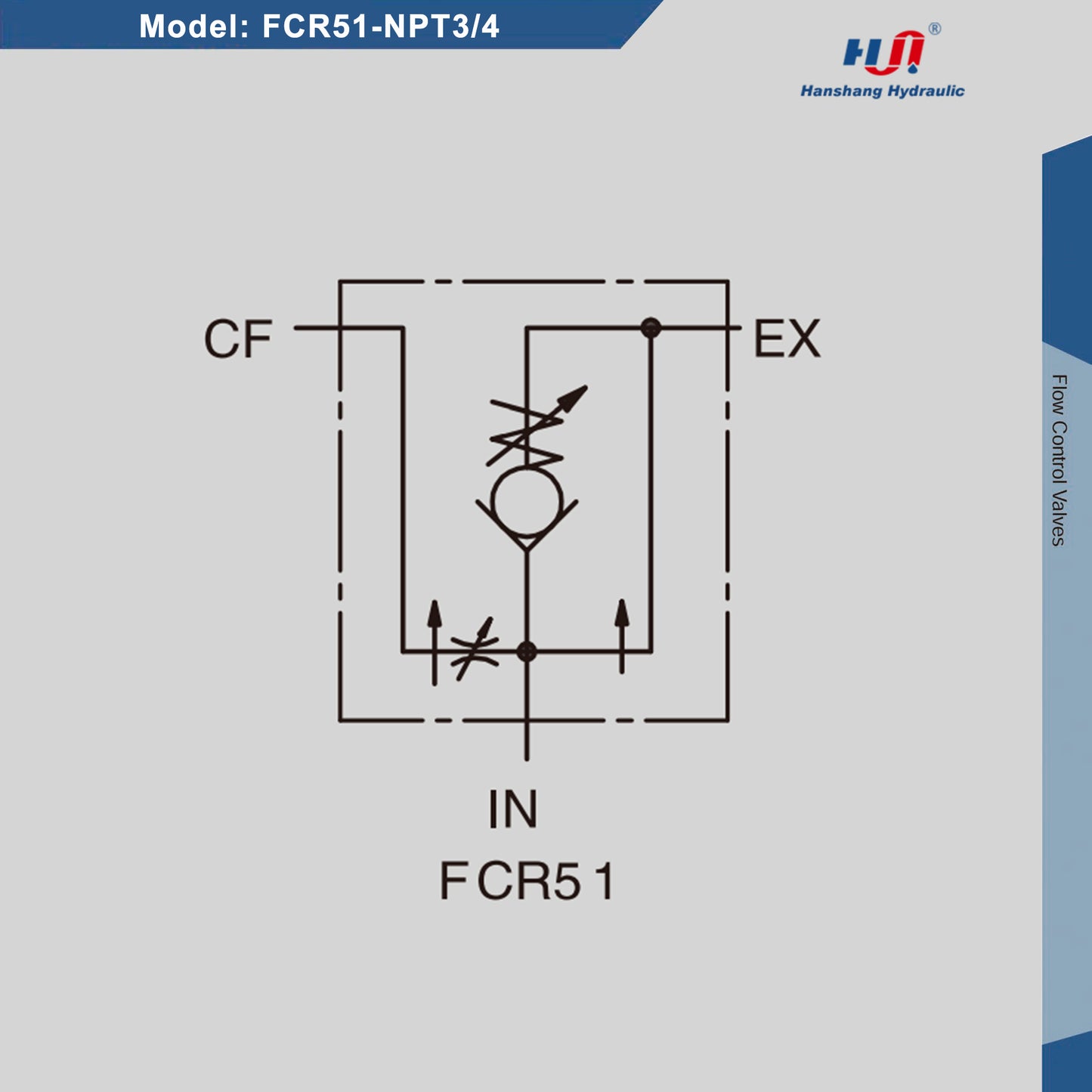

  • Port IN ( Inlet Port )
  • Port CF ( Controlled Flow ): Flow from this port is pressure compensated and proportional. Depending on the position of the lever, the flow can be from closed to fully open
  • Port EX ( Excess Flow ): Outflow from this port if pressure compensated. If the lever is set to 0, all traffic will flow out of this port
  • Port Top Relief : Adjustable Ball Spring Relief Port
