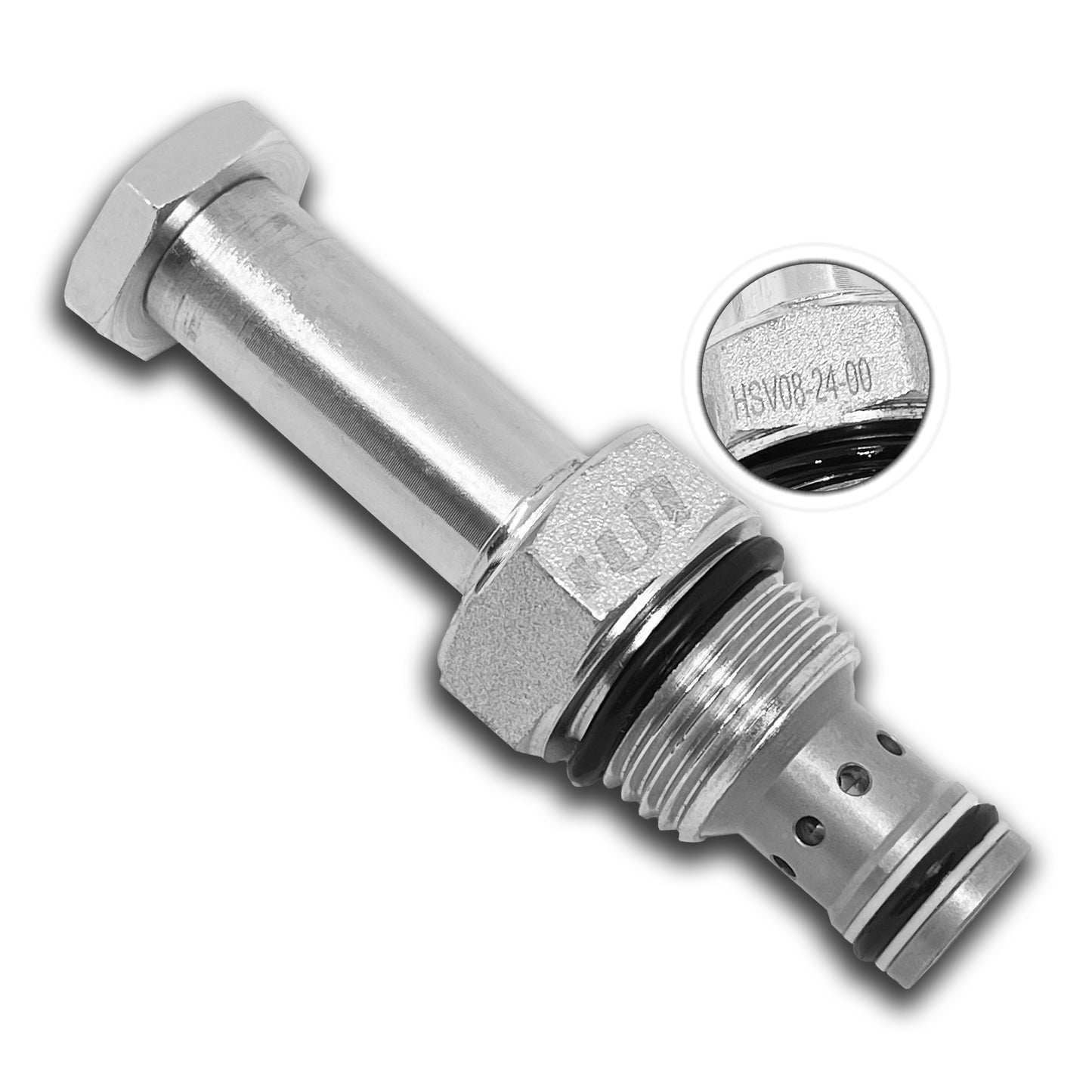

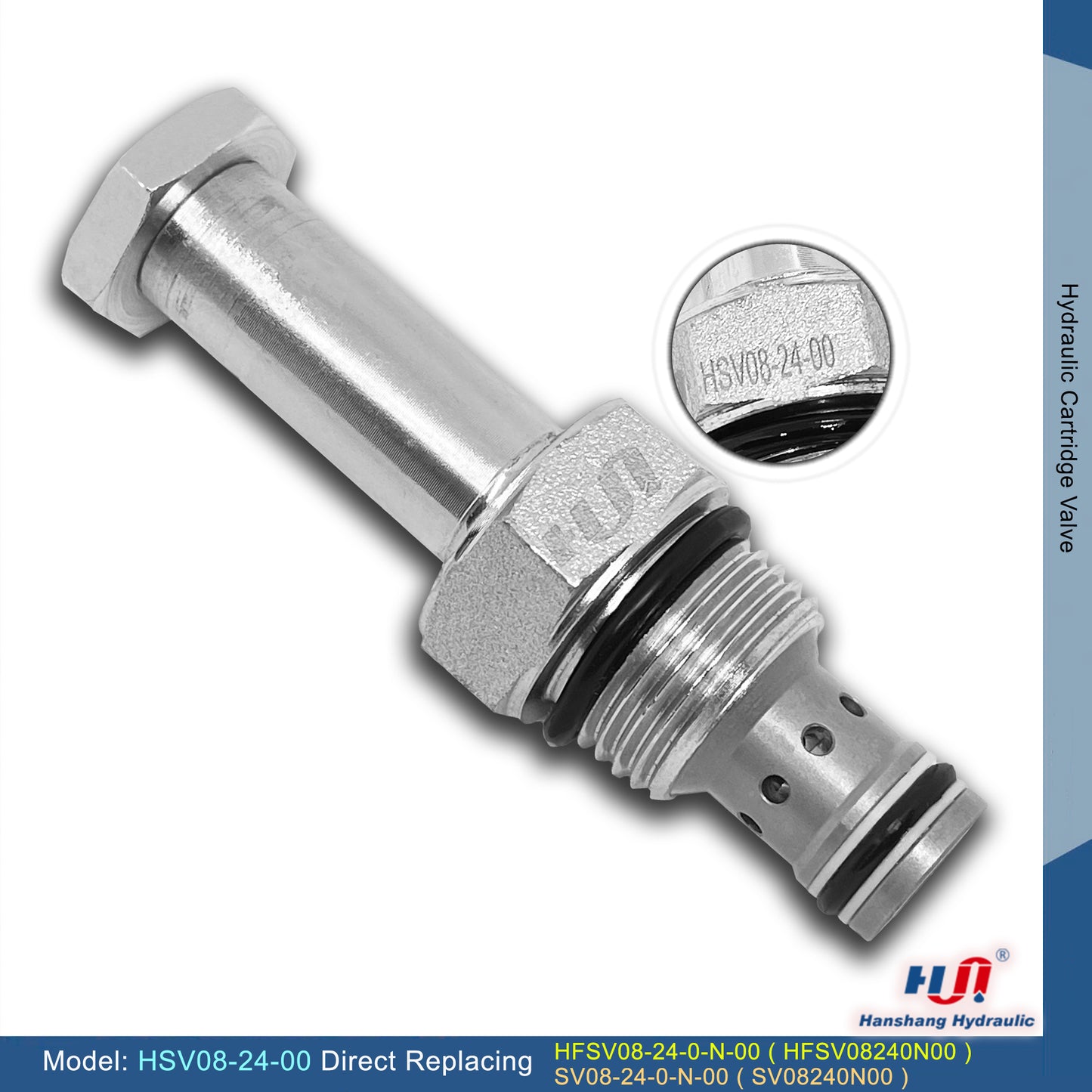

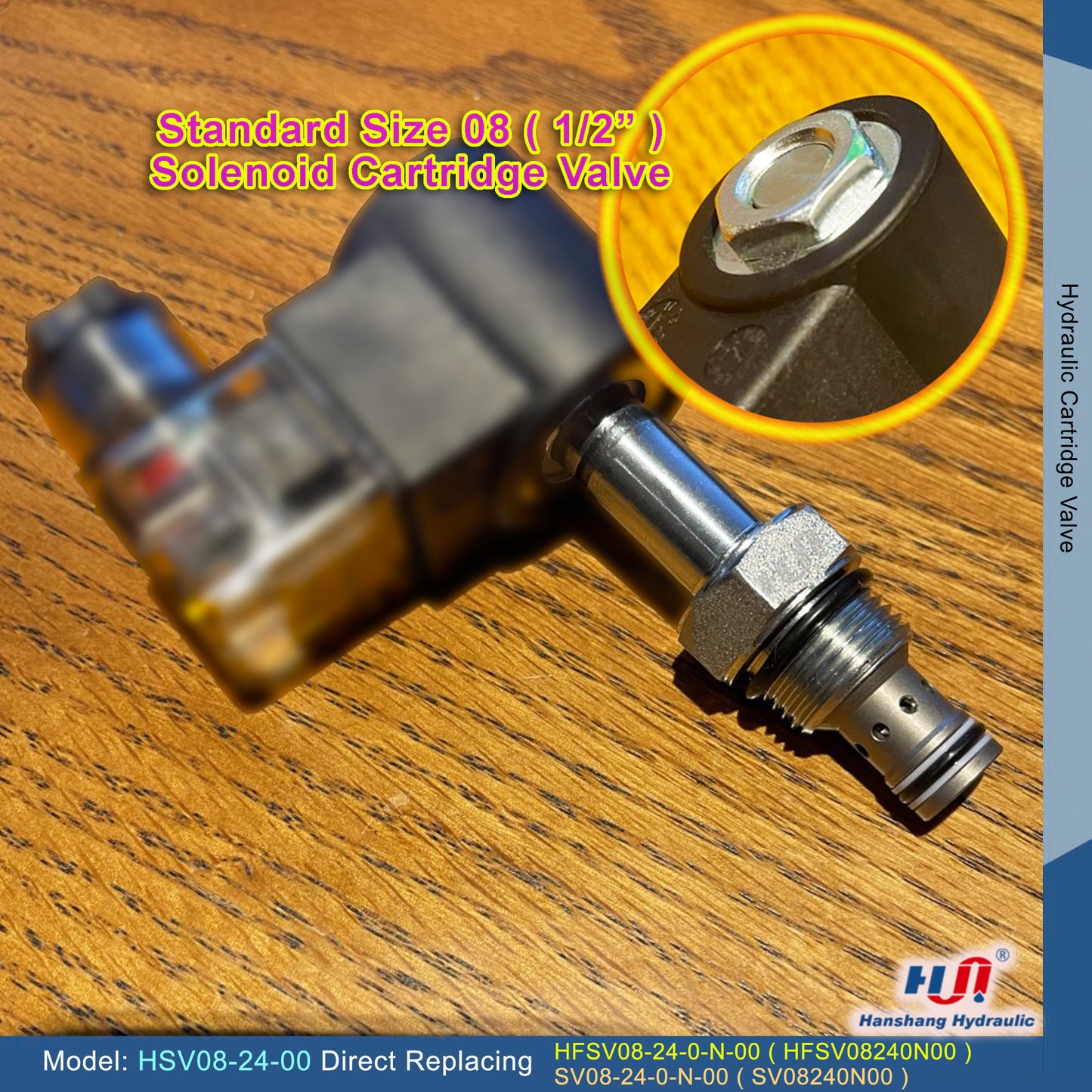

HSV08-24-00 Cartridge Valve ( SV08-24-00 )

• HFSV08-24-0-N-00 ( HFSV08240N00 ) and SV08-24-0-N-00 ( SV08240N00 ) Direct Replacement
• Cartridge Solenoid Valve, Normally-Closed, Two-Way, Two-Position, Spool-Operated Cartridge Solenoid Valve With Blocking Flow De-energized
• Efficient wet-armature construction, continuous-duty solenoid

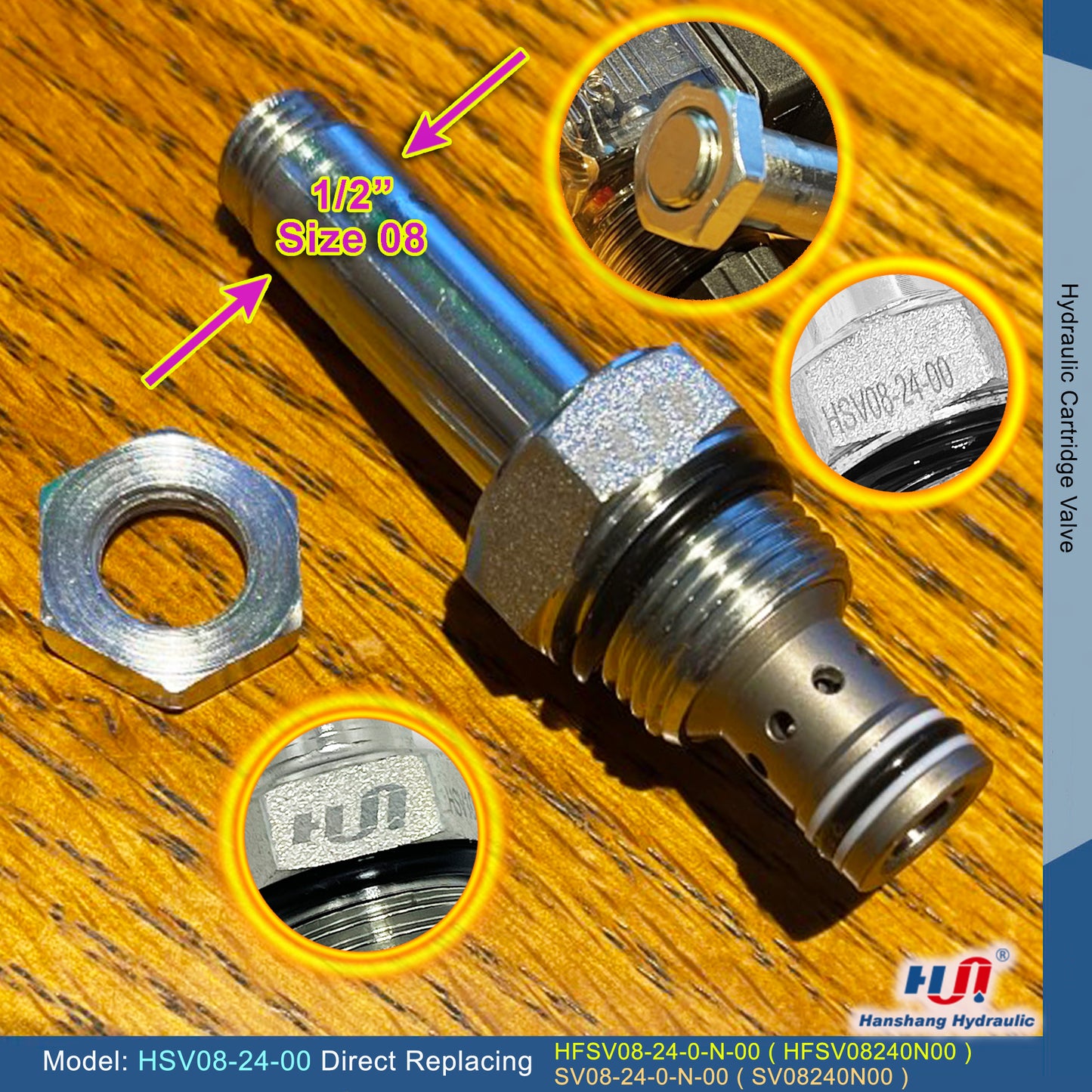

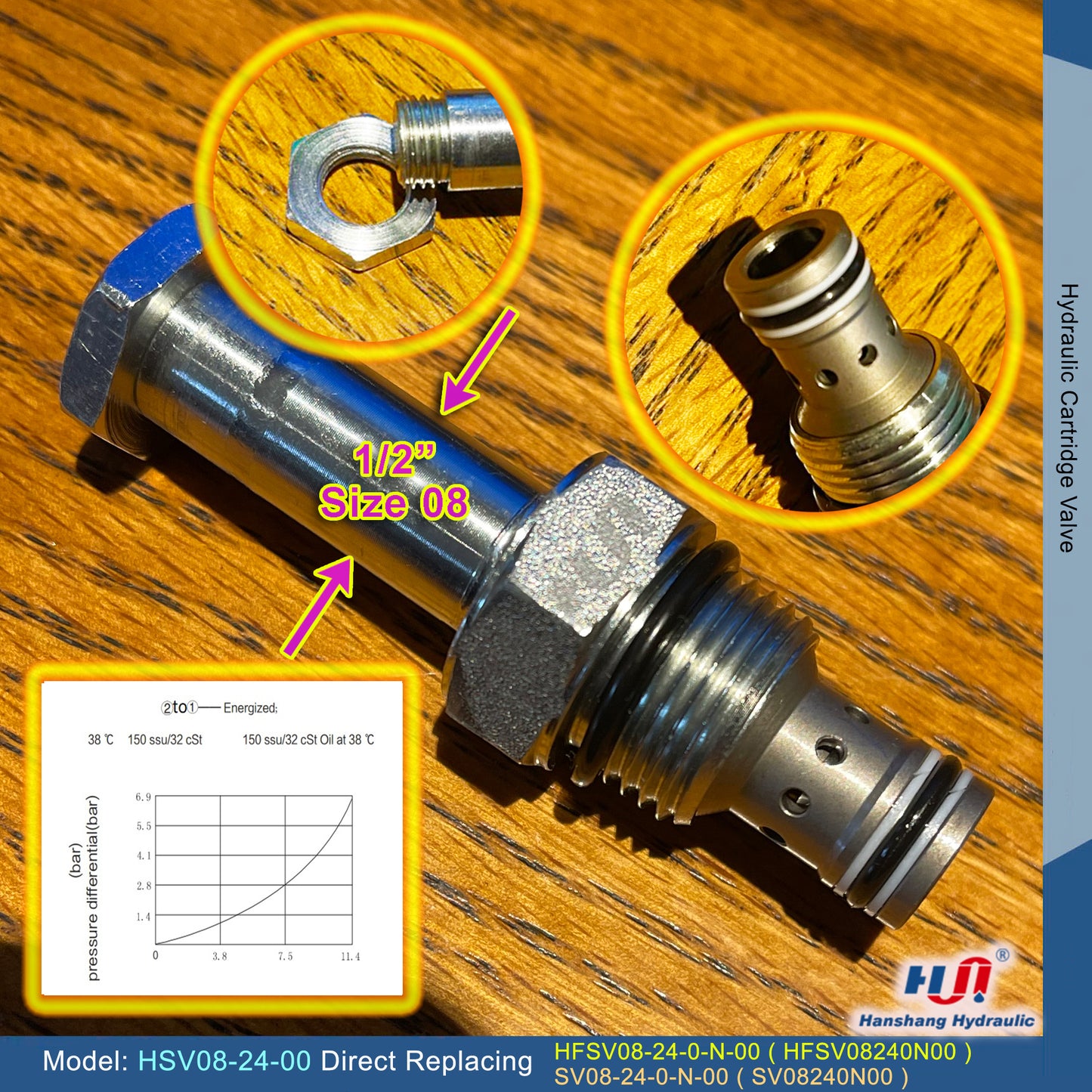

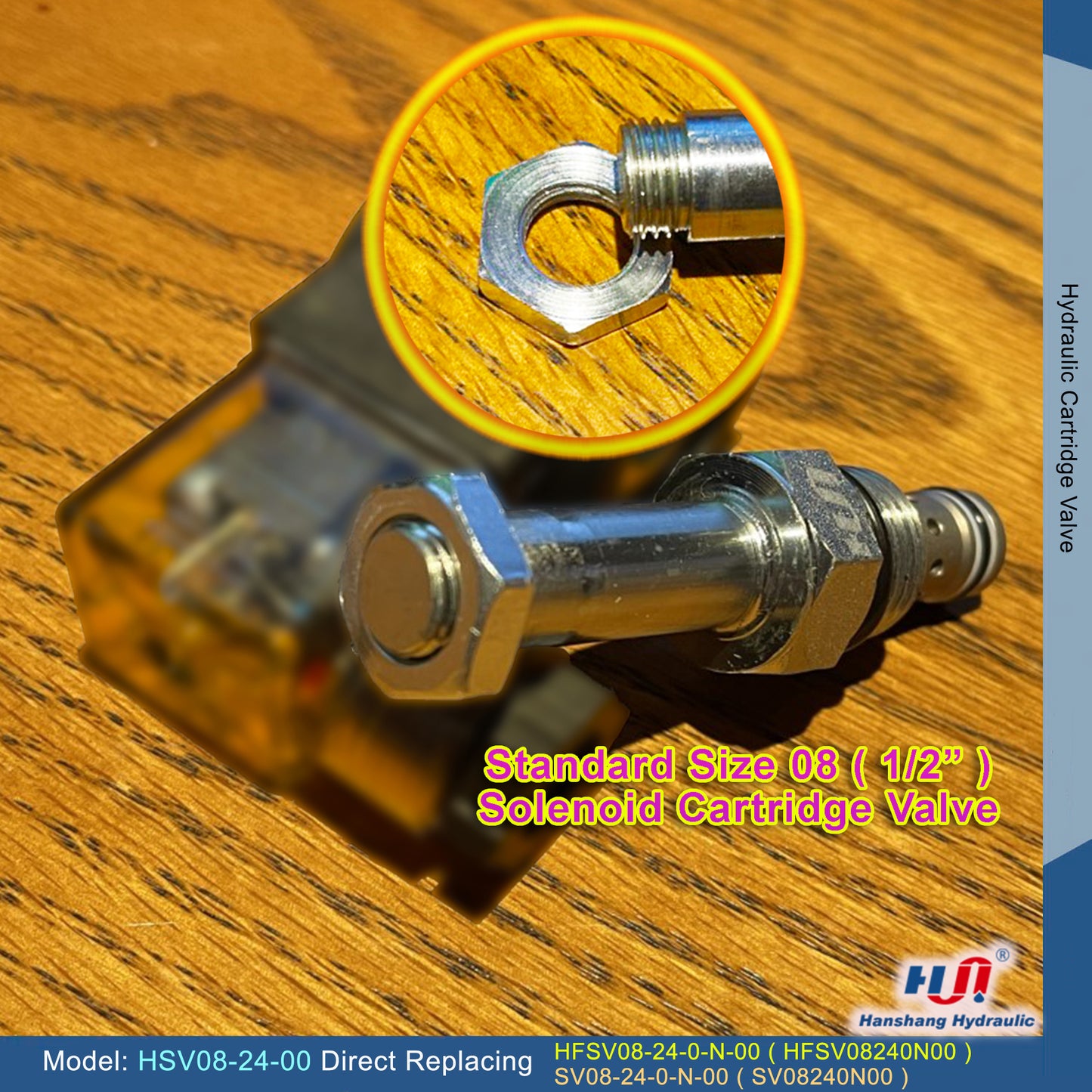

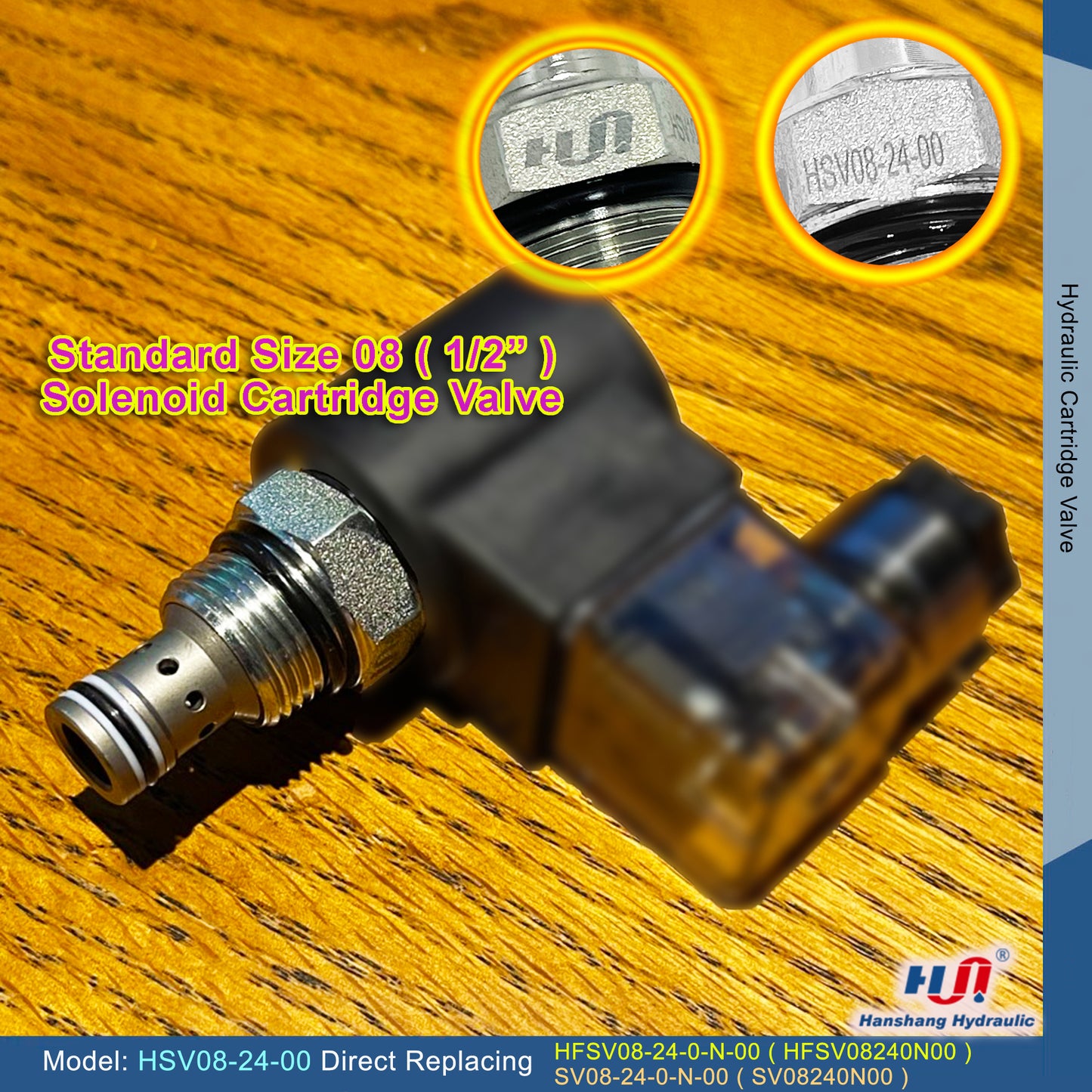

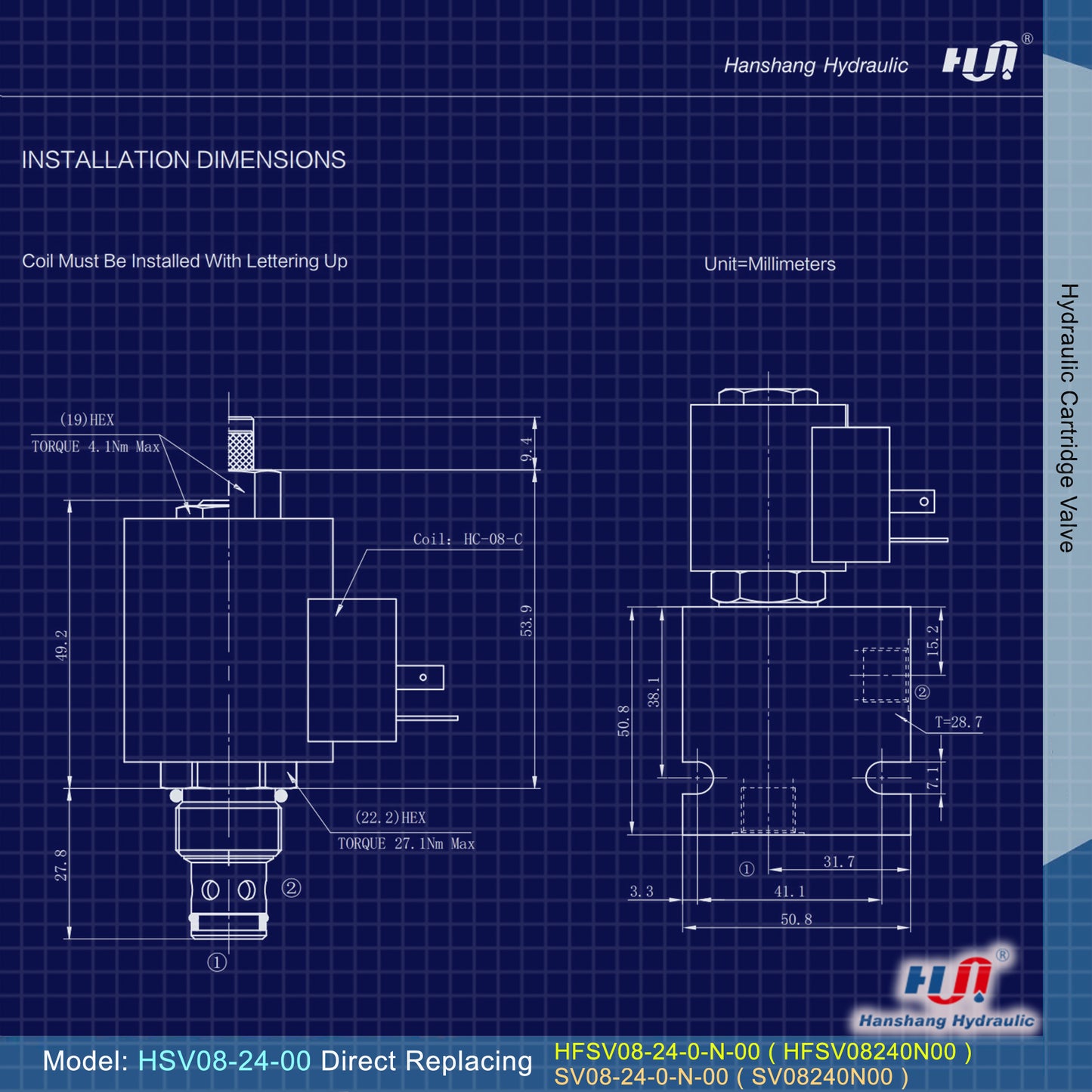

• Industry common cavity, use size 8 Solenoids (1/2" cavity)
• Hardened seat for long life, anodized 6061-T6 aluminum alloy rated at 207 bar Steel rated at 350 bar
• Suitable fluid media: Mineral-based fluids, Fuel, Oil, Water
• Filtration: Critical Application - ISO 18/16/13 and Non-Critical Application - ISO 19/17/14
• Maximum Pressure 3000 PSI, Maximum Flow Rate 6 GPM

OPERATION ( See Listing Diagram Image ) :

• When de-energized, the valve allows flow in both directions.
• When energized, the cartridge's spool shifts to block flow in either direction.

Operation of Manual Override Option:

• To override, push button in, twist counterclockwise 180°and release. In this position, valve will remain detented in the shifted condition.
• To return to normal operation, push button in, twist clockwise 180°and release. Override will be detented in this position.
