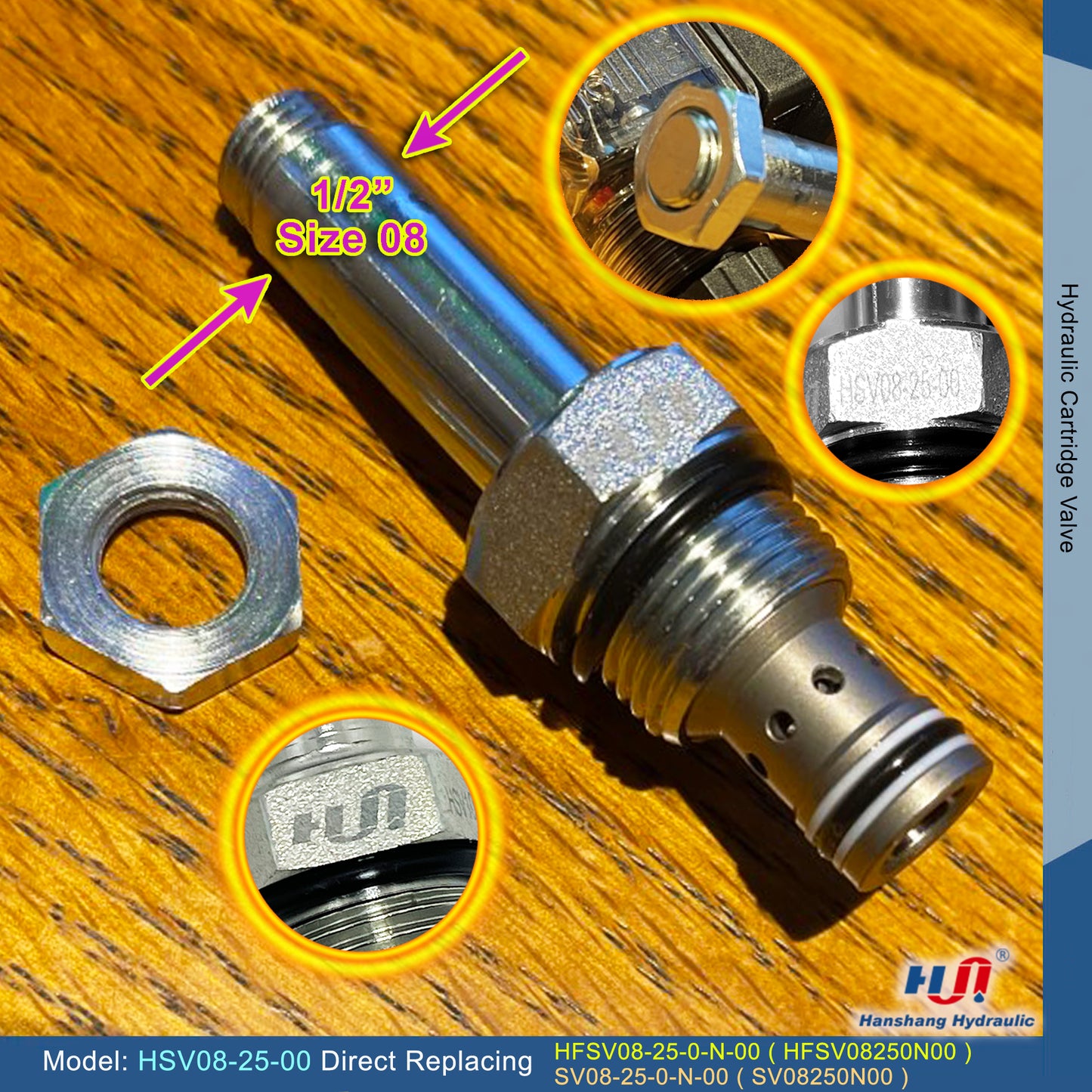

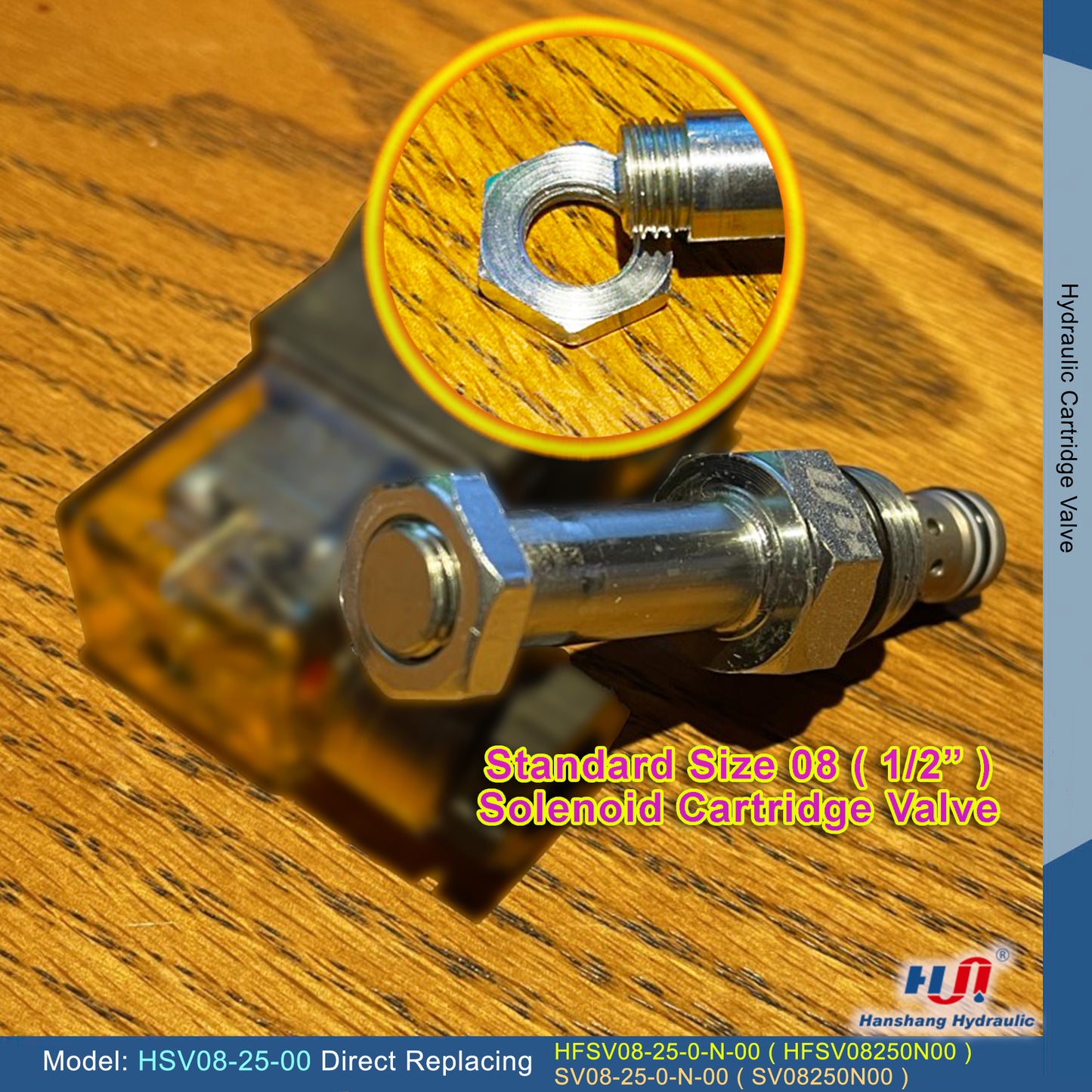

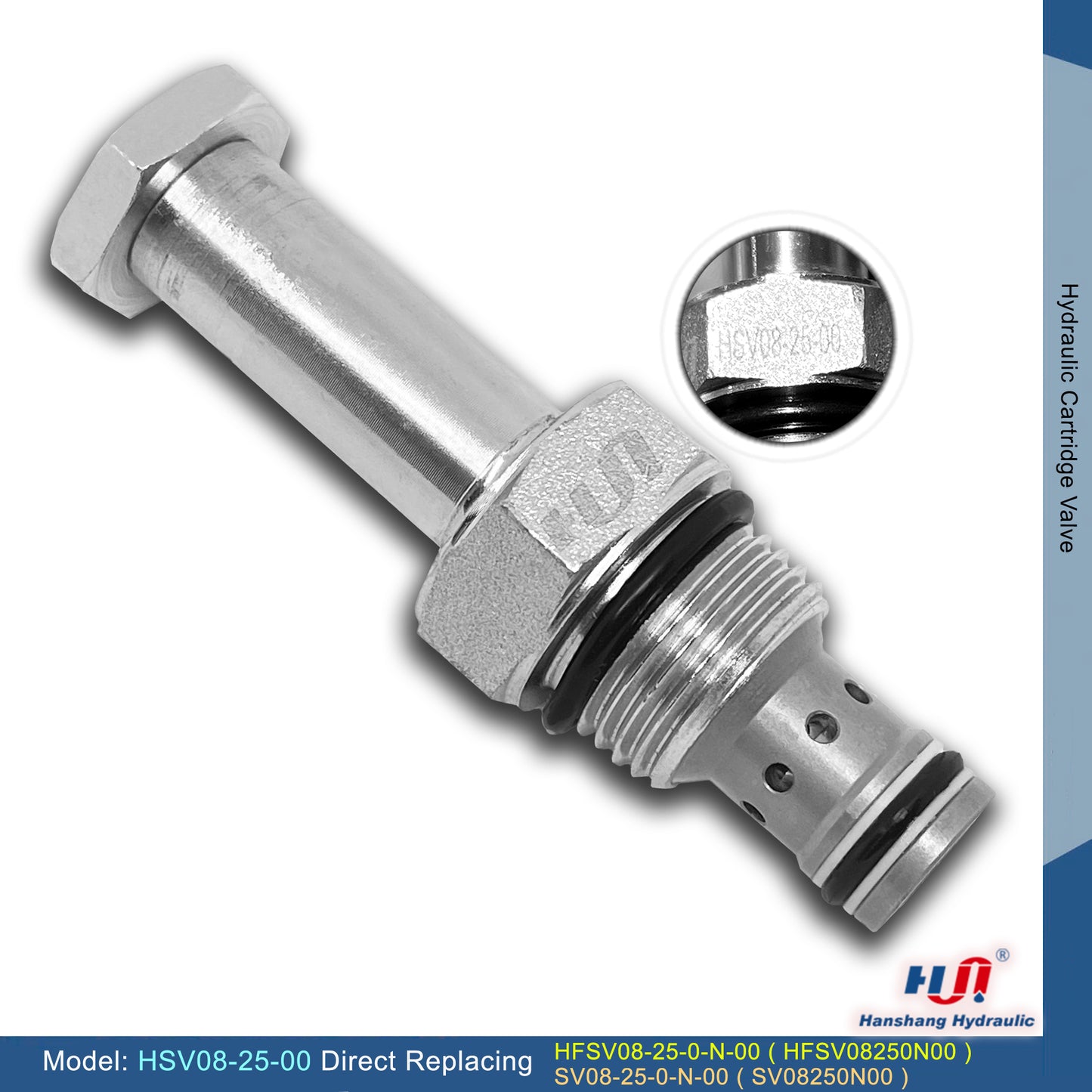

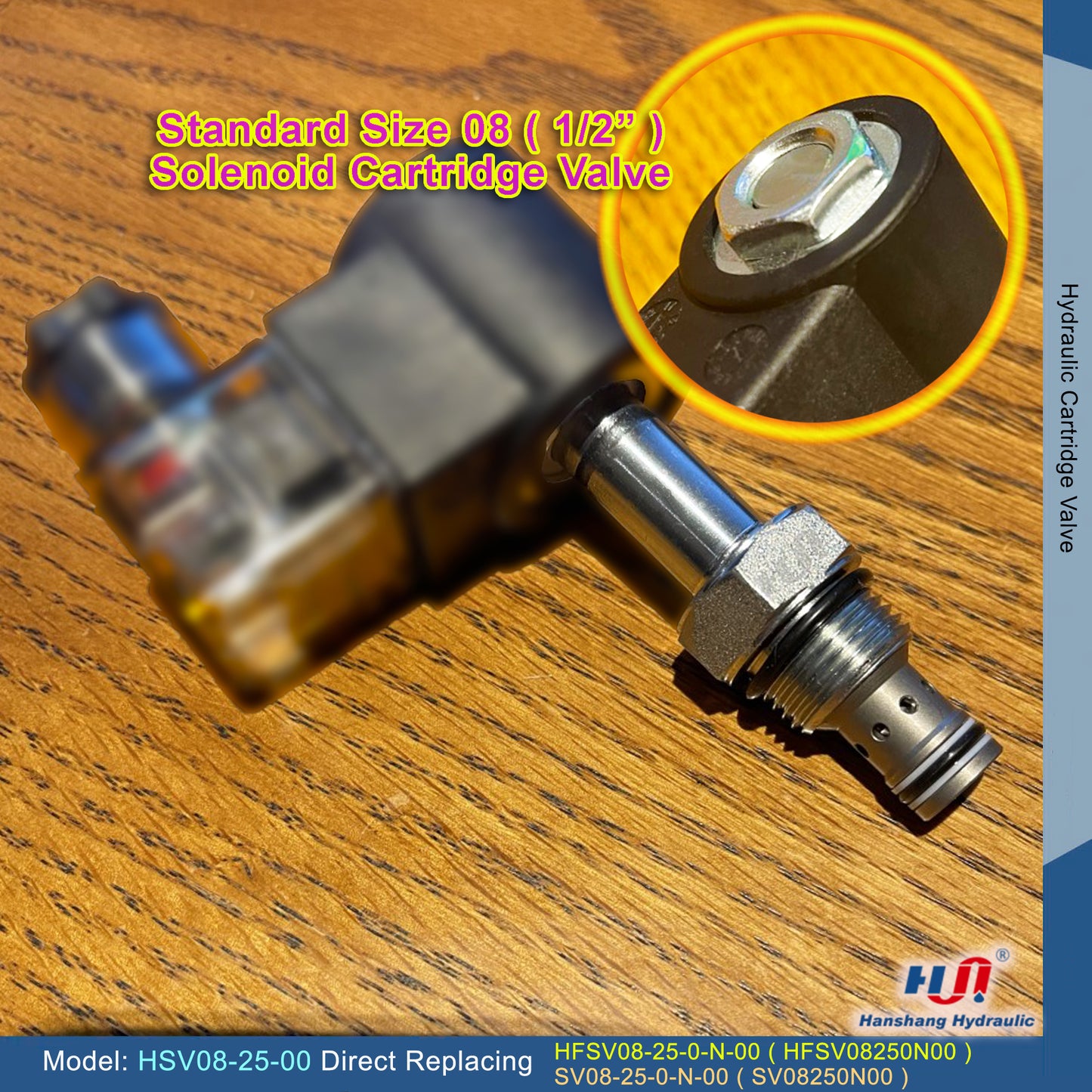

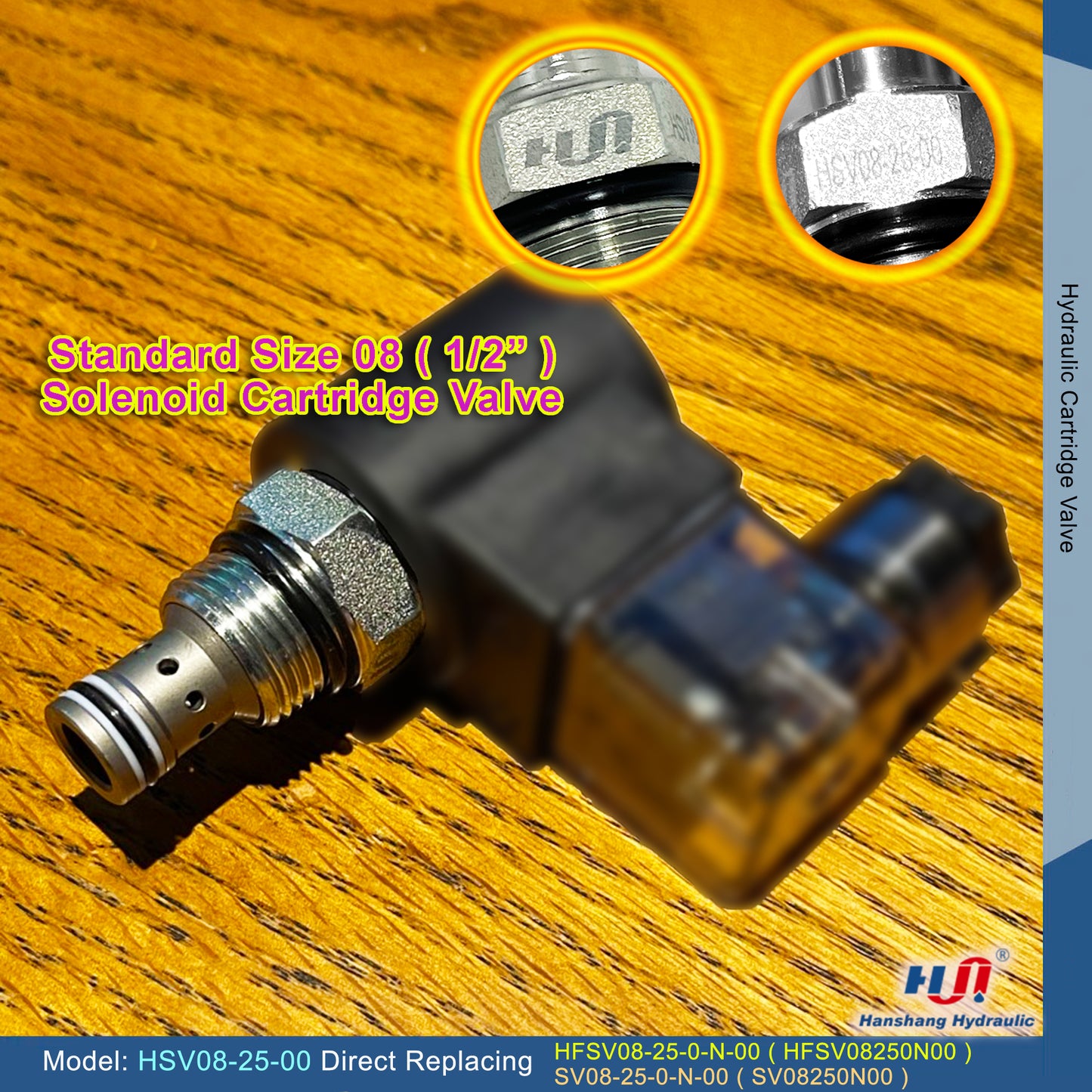

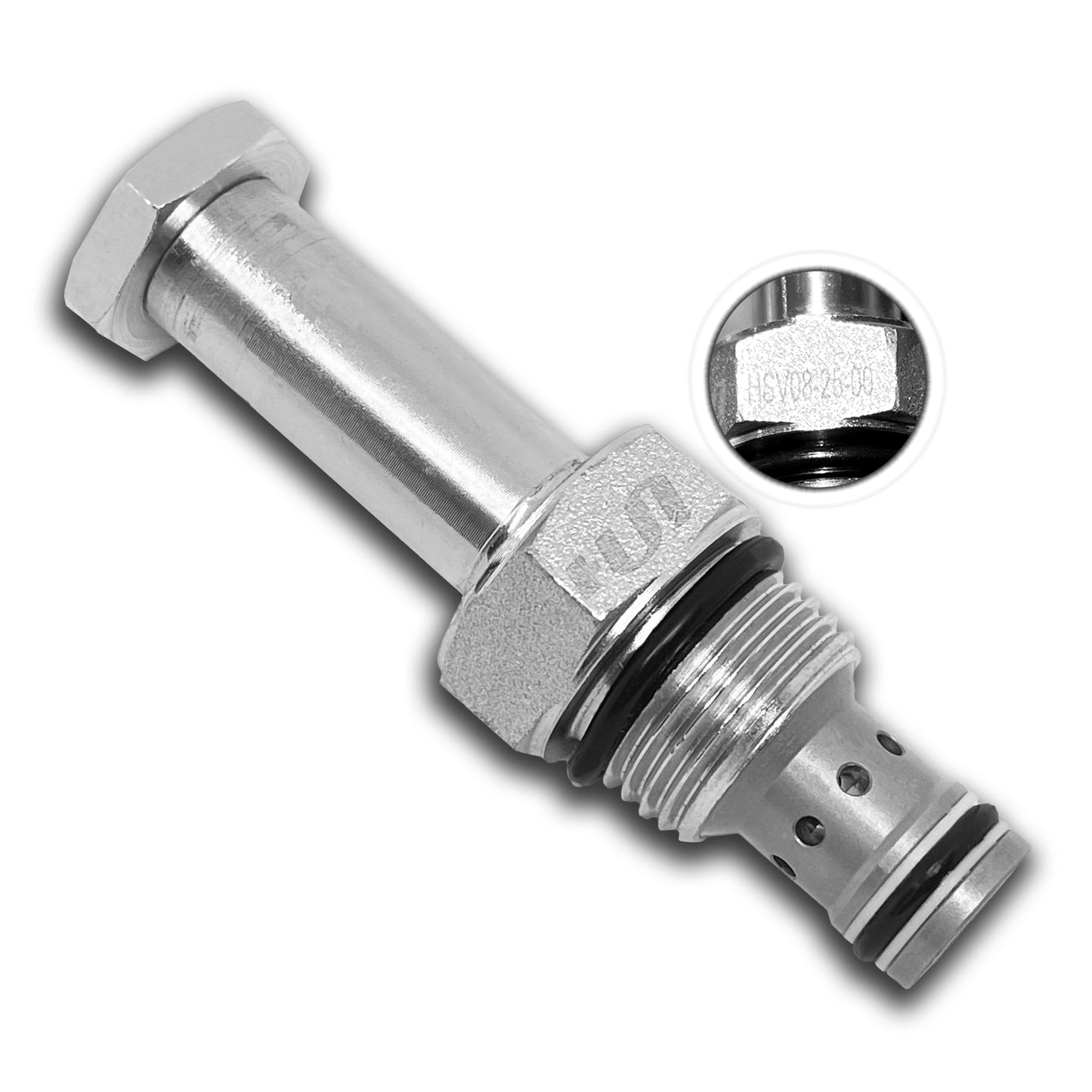

HSV08-25-00 Cartridge Valve ( SV08-25-00 )

• HFSV08-25-0-N-00 ( HFSV08250N00 ) and SV08-25-0-N-00 ( SV08250N00 ) Direct Replacement
• Efficient wet-armature construction, continuous-duty solenoid
• Industry common cavity, use size 8 Solenoids (1/2" cavity)
• Hardened seat for long life, anodized 6061-T6 aluminum alloy rated at 207 bar Steel rated at 350 bar
• Suitable fluid media: Mineral-based fluids, Fuel, Oil, Water
• Filtration: Critical Application - ISO 18/16/13 and Non-Critical Application - ISO 19/17/14

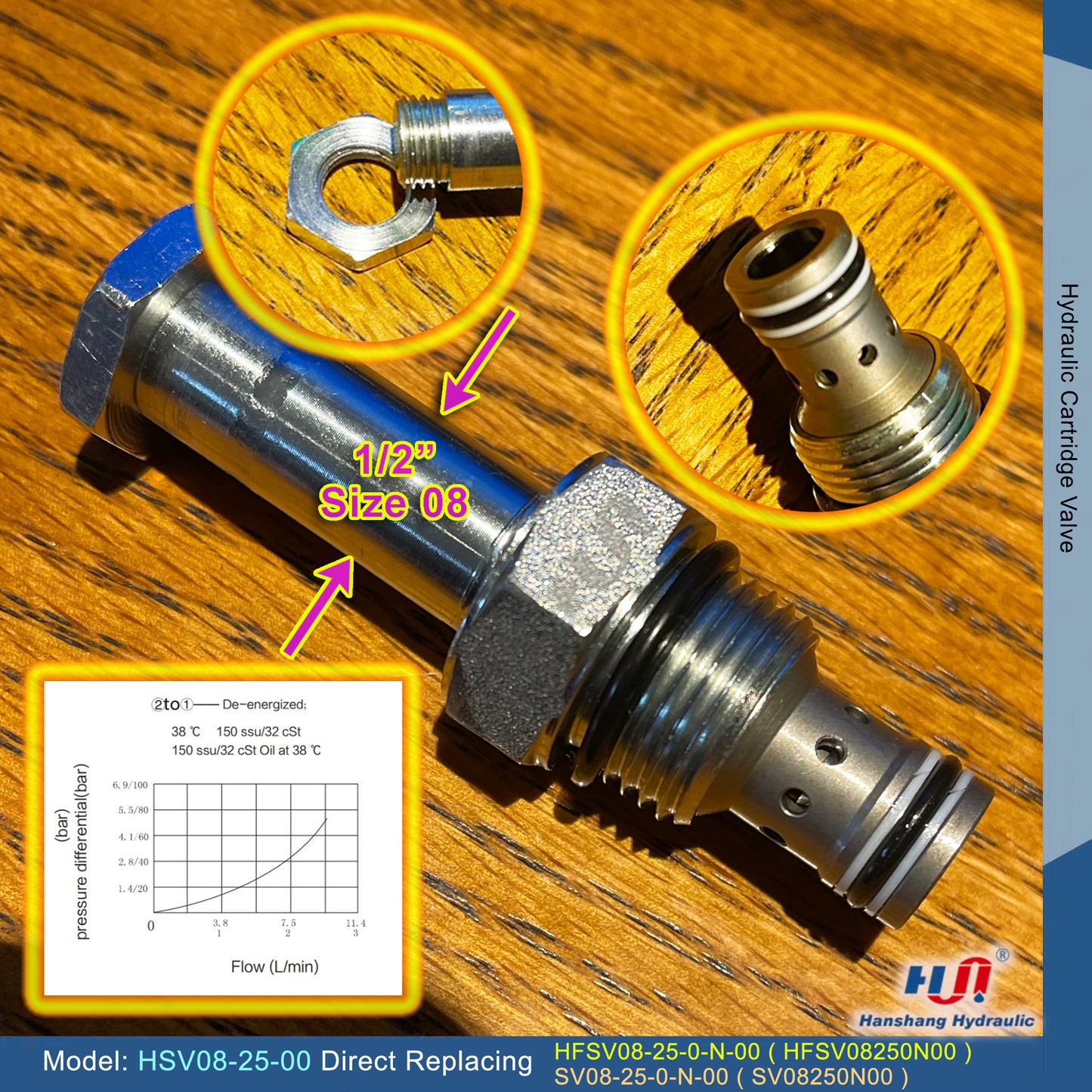

• Maximum Pressure 3000 PSI, Maximum Flow Rate 6 GPM

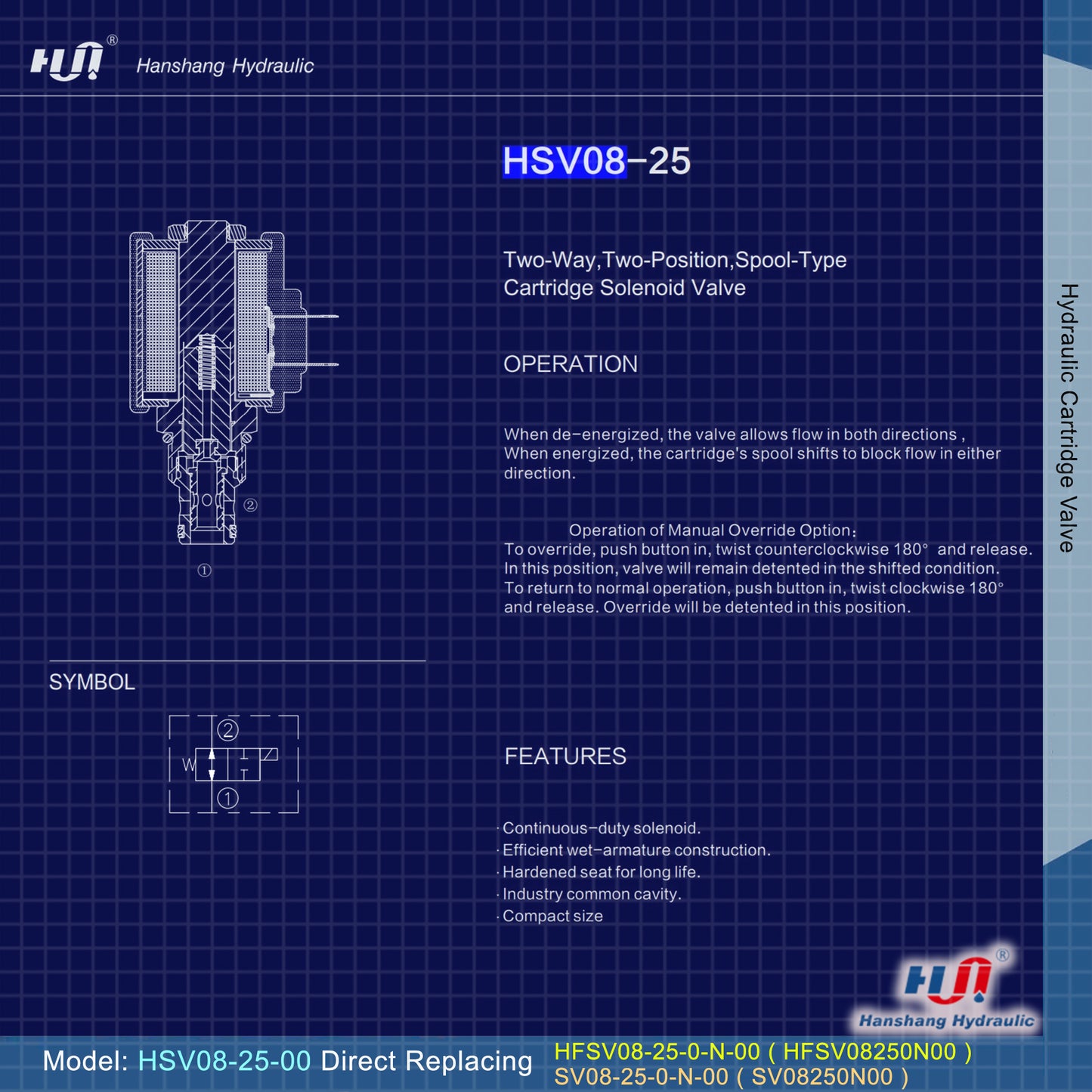

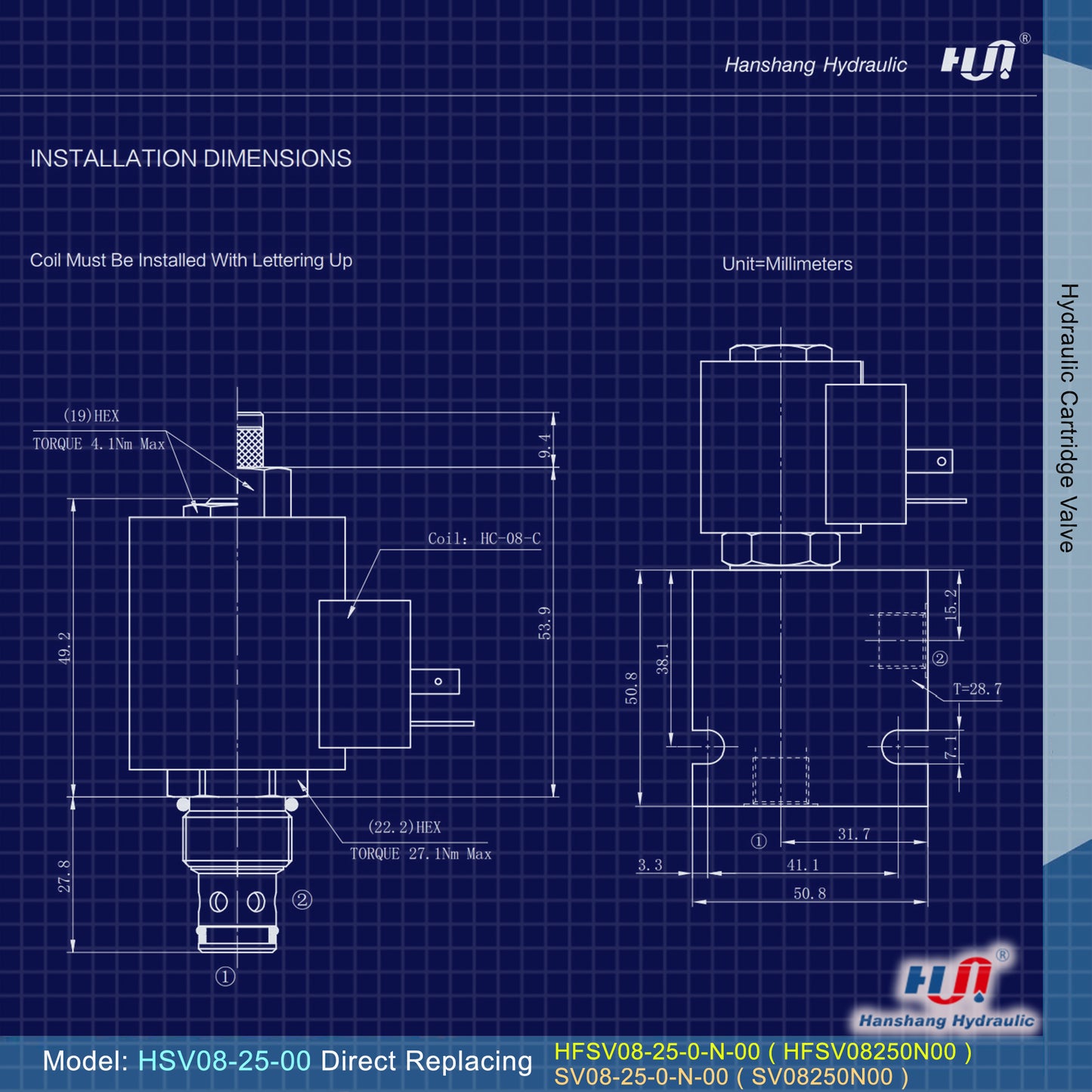

OPERATION ( See Listing Diagram Image ) :

• When de-energized, the valve allows flow in both directions.
• When energized, the cartridge's spool shifts to block flow in either direction.

Operation of Manual Override Option:

• To override, push button in, twist counterclockwise 180°and release. In this position, valve will remain detented in the shifted condition.
• To return to normal operation, push button in, twist clockwise 180°and release. Override will be detented in this position.
