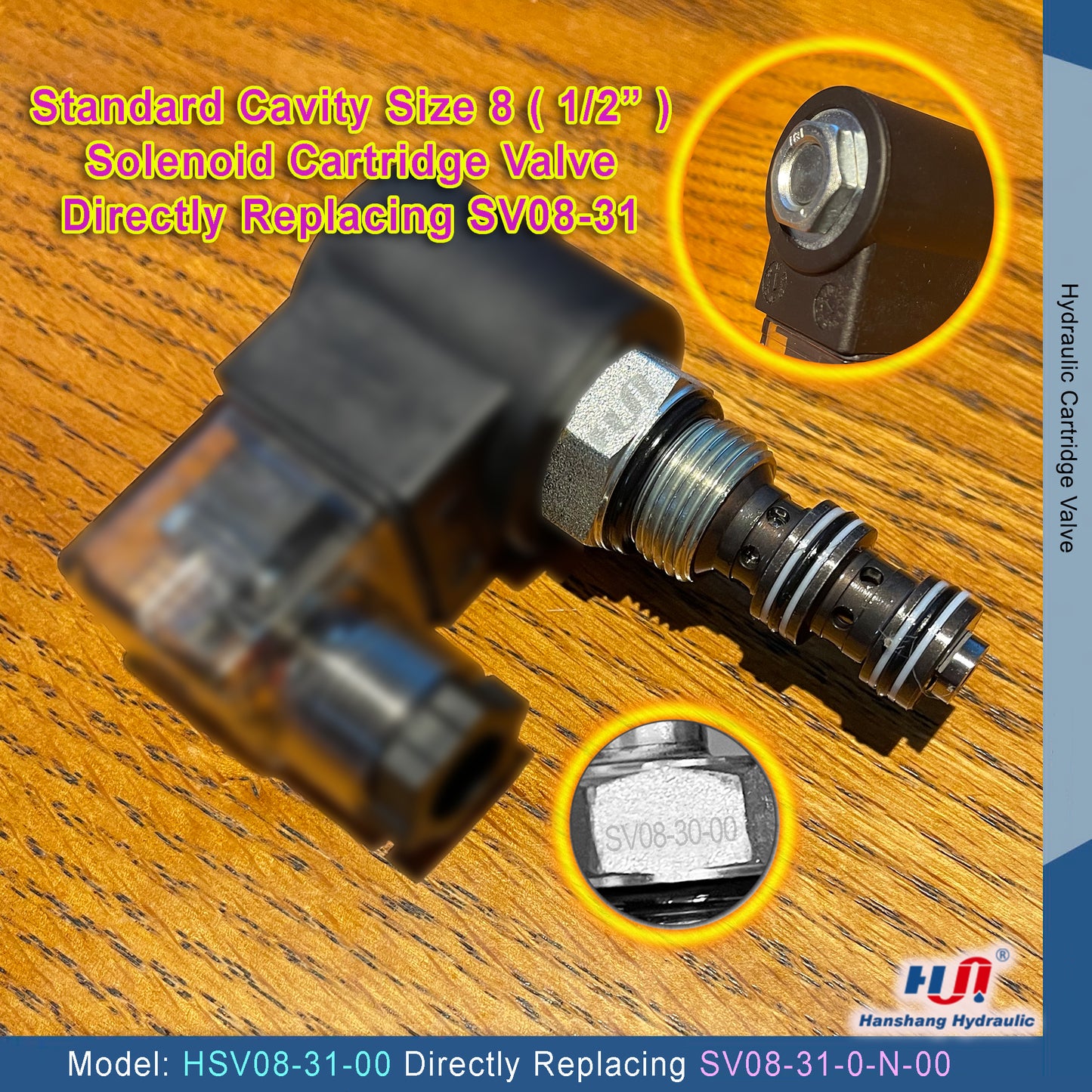

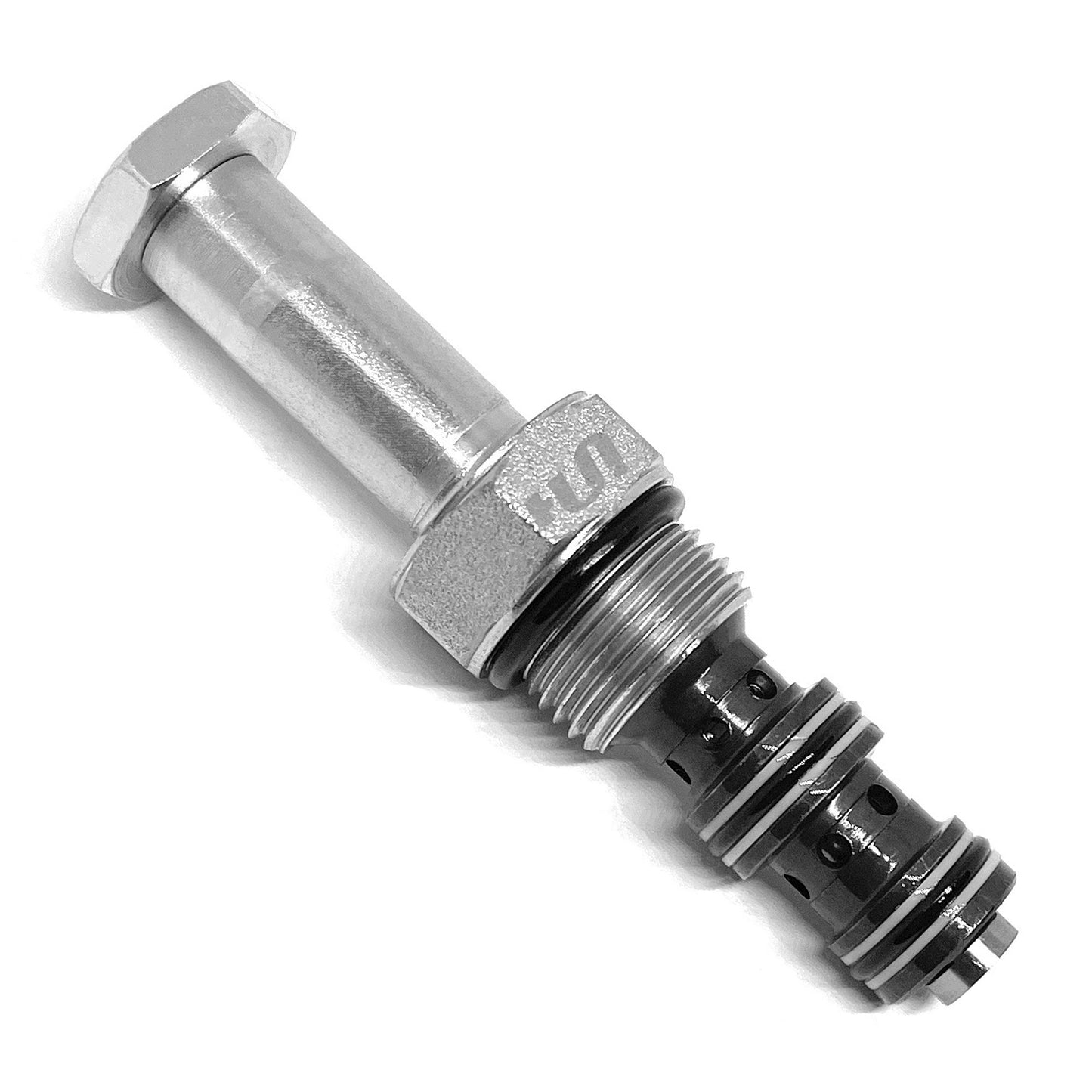

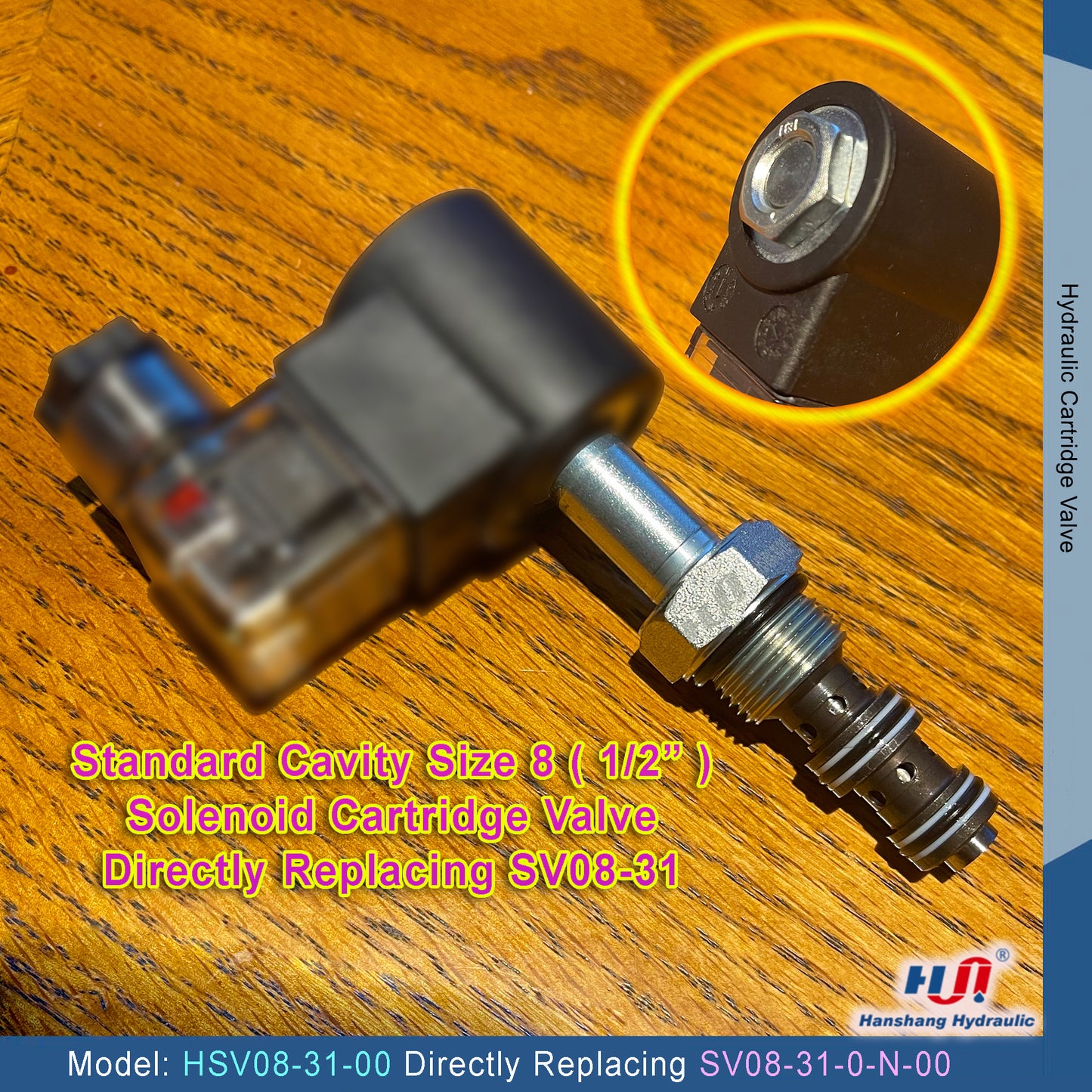

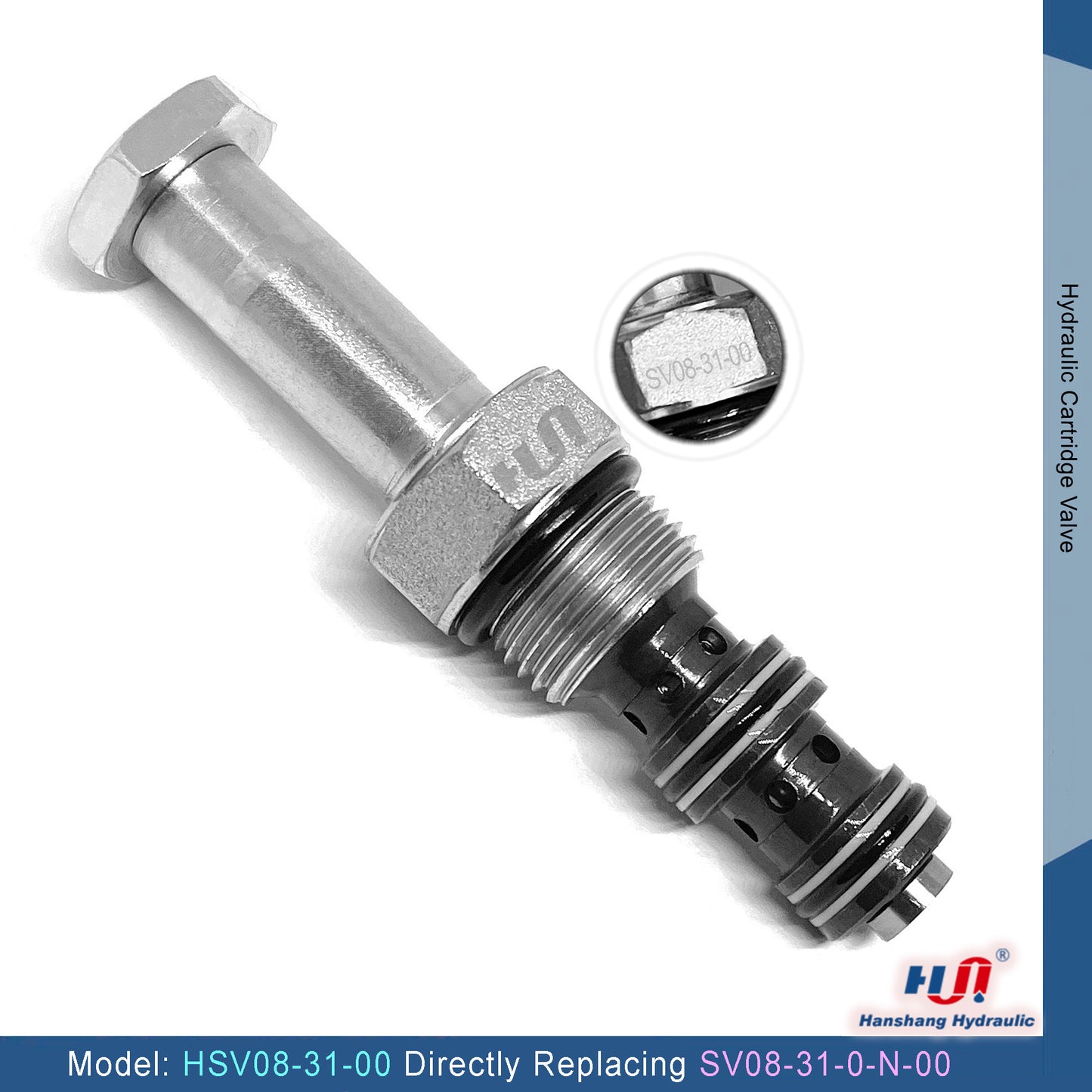

HSV08-31-00 Cartridge Valve ( SV08-31-00 )

• Spool Type Selector Valve, 3-Way, 2-Position
• SV08-31 ( SV08-31-00-N-00 ) direct replacement
• Maximum flow rate 3 GPM, maximum pressure 3000 PSI ( 207 Bar )
• Industry standard cavity: 80-2, use size 08 Solenoids ( 1/2" common cavity )
• Efficient wet-armature construction, continuous-duty solenoid
• Anodized 6061-T6 aluminum alloy rated at 207 bar Steel rated at 350 bar
• Suitable fluid media: Mineral-based fluids, Fuel, Oil, Water
• Filtration: critical application - ISO 18/16/13 and non-critical application - ISO 19/17/14

Features:

• Continuous-duty solenoid.
• Efficient wet-armature construction.
• Optional coil voltages and terminals
• Manual override option
• Industry standard cavity ( size 08, 1/2" common cavity )
• Compact size

Specifications:

• Maximum Pressure 3000 PSI
• Maximum Flow Rate 3 GPM
• Diameter 1/2" ( Use Size 08 Solenoids )
• Anodized 6061-T6 Aluminum Alloy Body
• Suitable media: Mineral-based fluids, Fuel, Oil, Water
• Filtrations: Critical Application - ISO 18/16/13 and Non-Critical Application - ISO 19/17/14

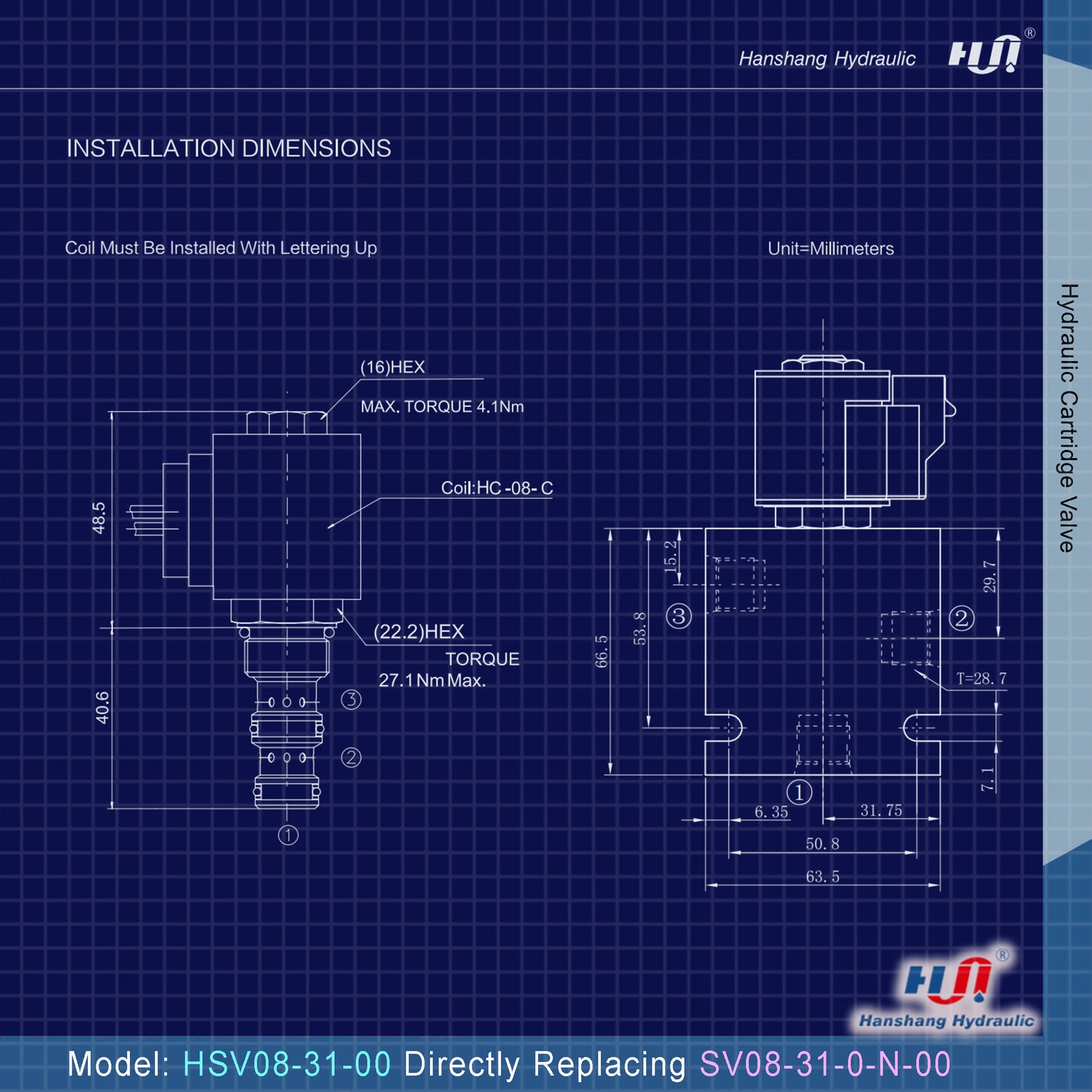

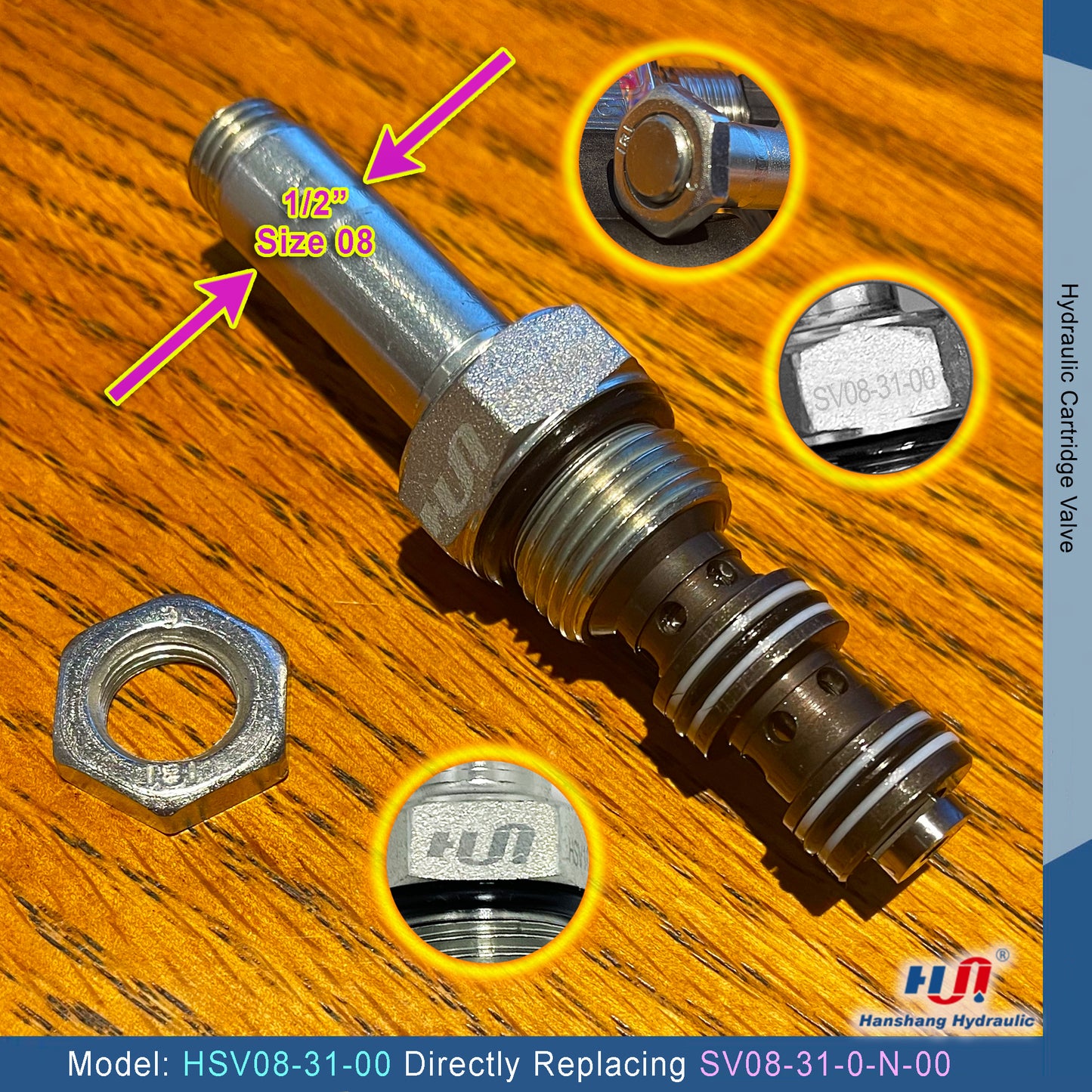

Dimensions:

• 3.5" x 1" x 1"
• 1/2" Diameter ( Size 08 )

Weight:

• 3.9 oz

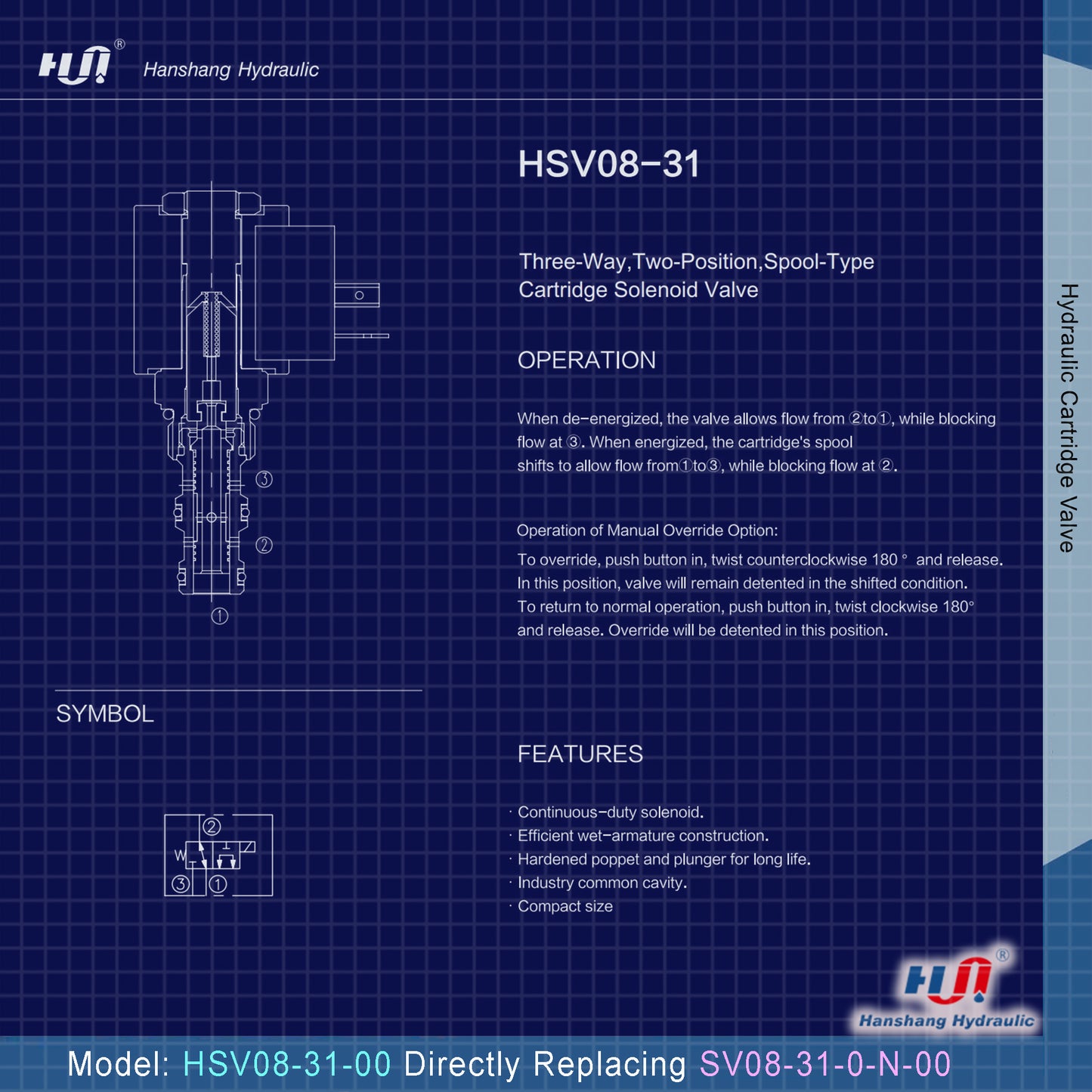

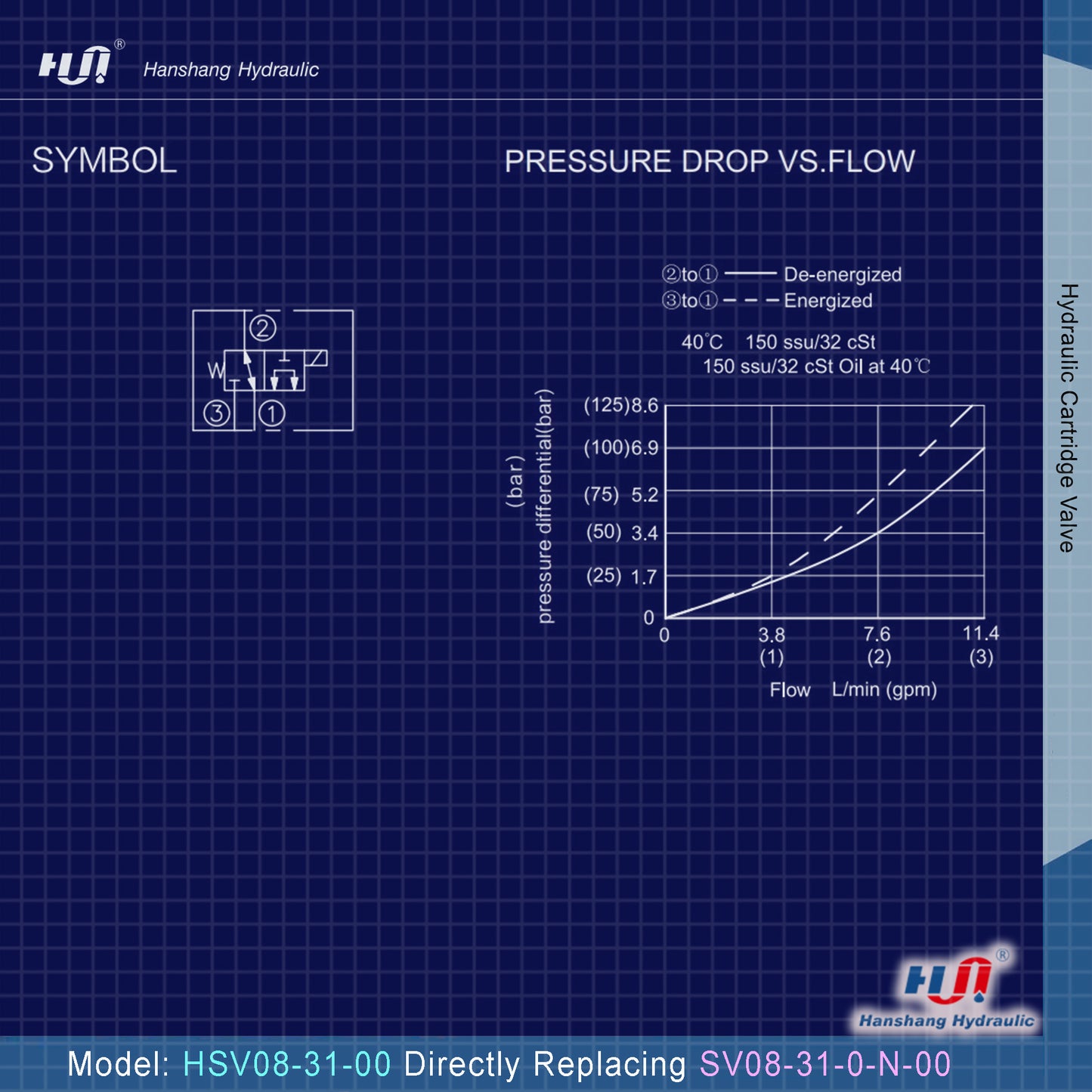

OPERATION ( See Listing Diagram Image ) :

• When de-energized, the cartridge valve allows flow from (2) to (1) , while blocking flow at (3).
• When energized, the cartridge's spool shifts to allow from (1) to (3),  while blocking flow at (2).

Operation of Manual Override Option:

• To override, push button in, twist counter wise 180 degree and release. In the position, the valve will remain detented in the shifted condition.
• To return to normal operation, push button in, twist clockwise 180 degree and release. Override will be detented in position.
