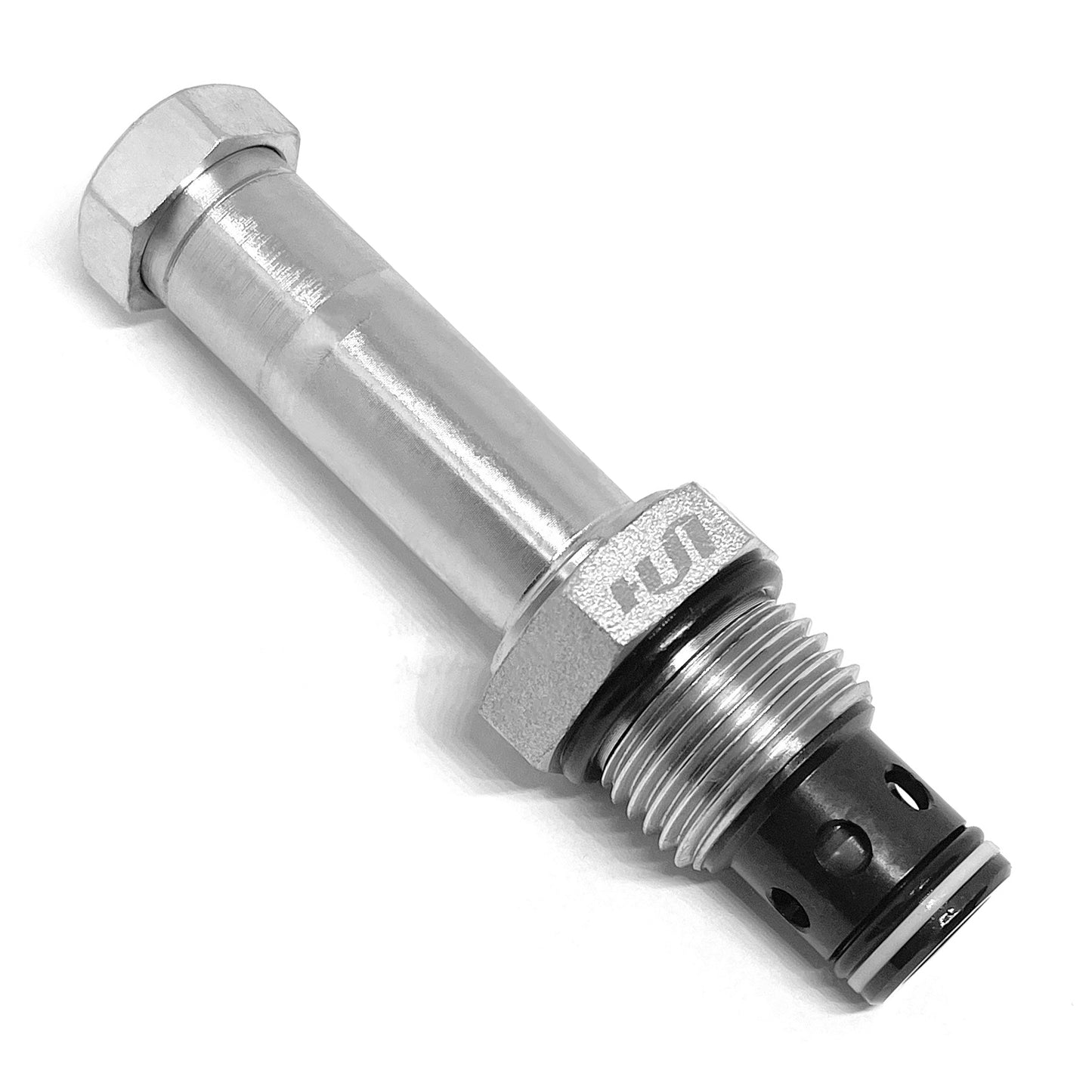

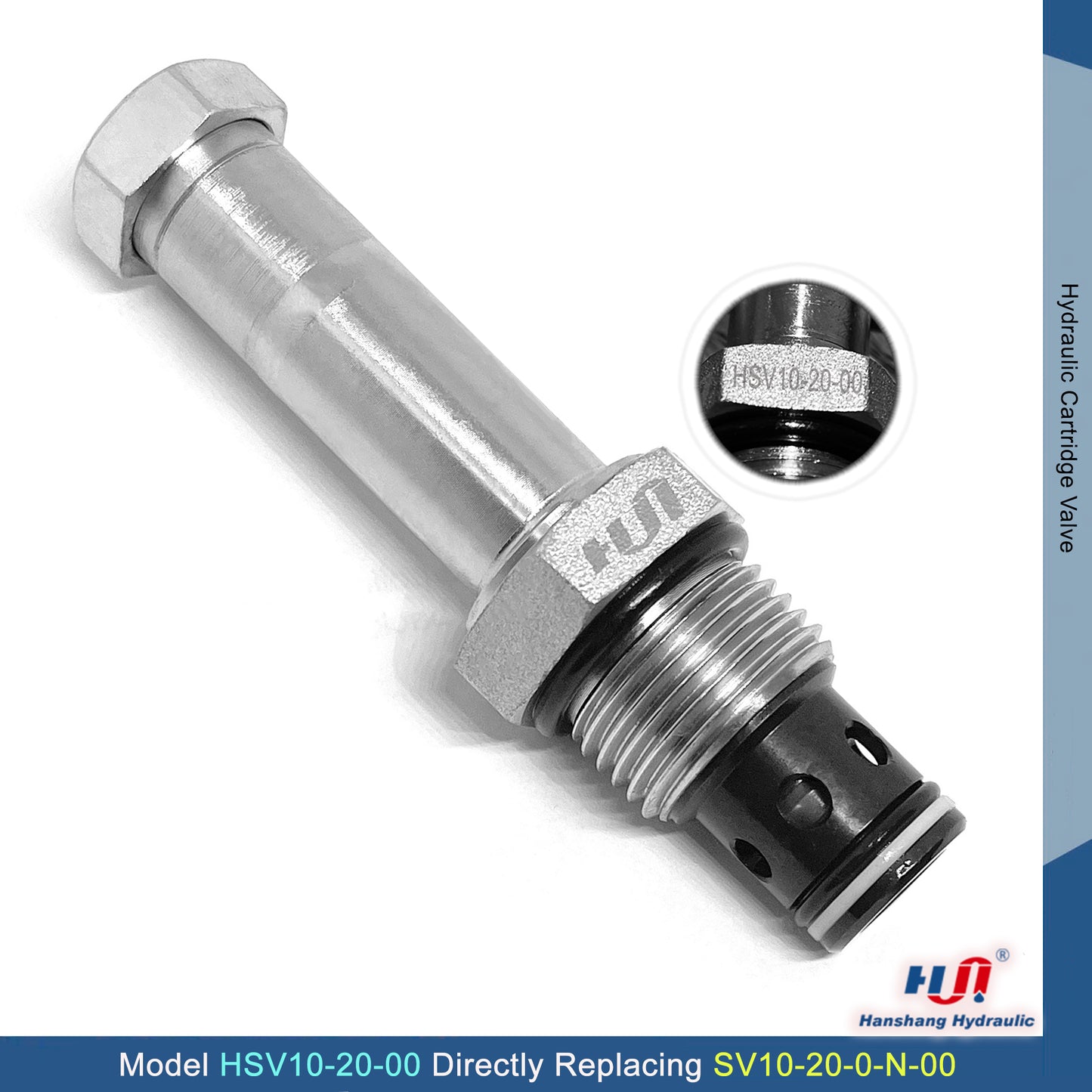

HSV10-20-00 Cartridge Valve ( SV10-20-00 )

• Normally-closed, 2-Way, 2-position, pilot-operated solenoid valve
• SV10-20 ( SV10-20-0-N-00 ) direct replacement
• Maximum flow rate 16 GPM, maximum pressure 3000 PSI ( 207 Bar )

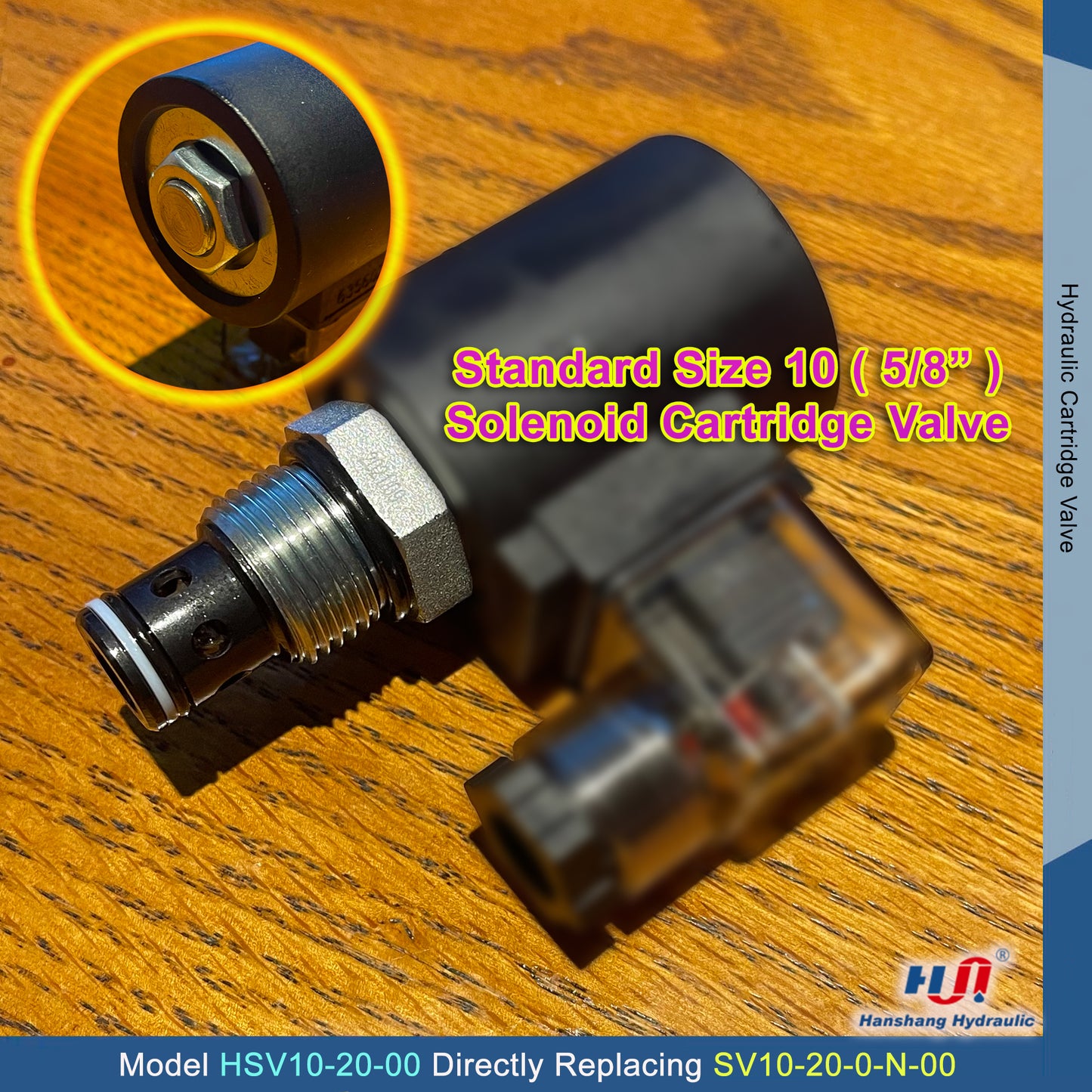

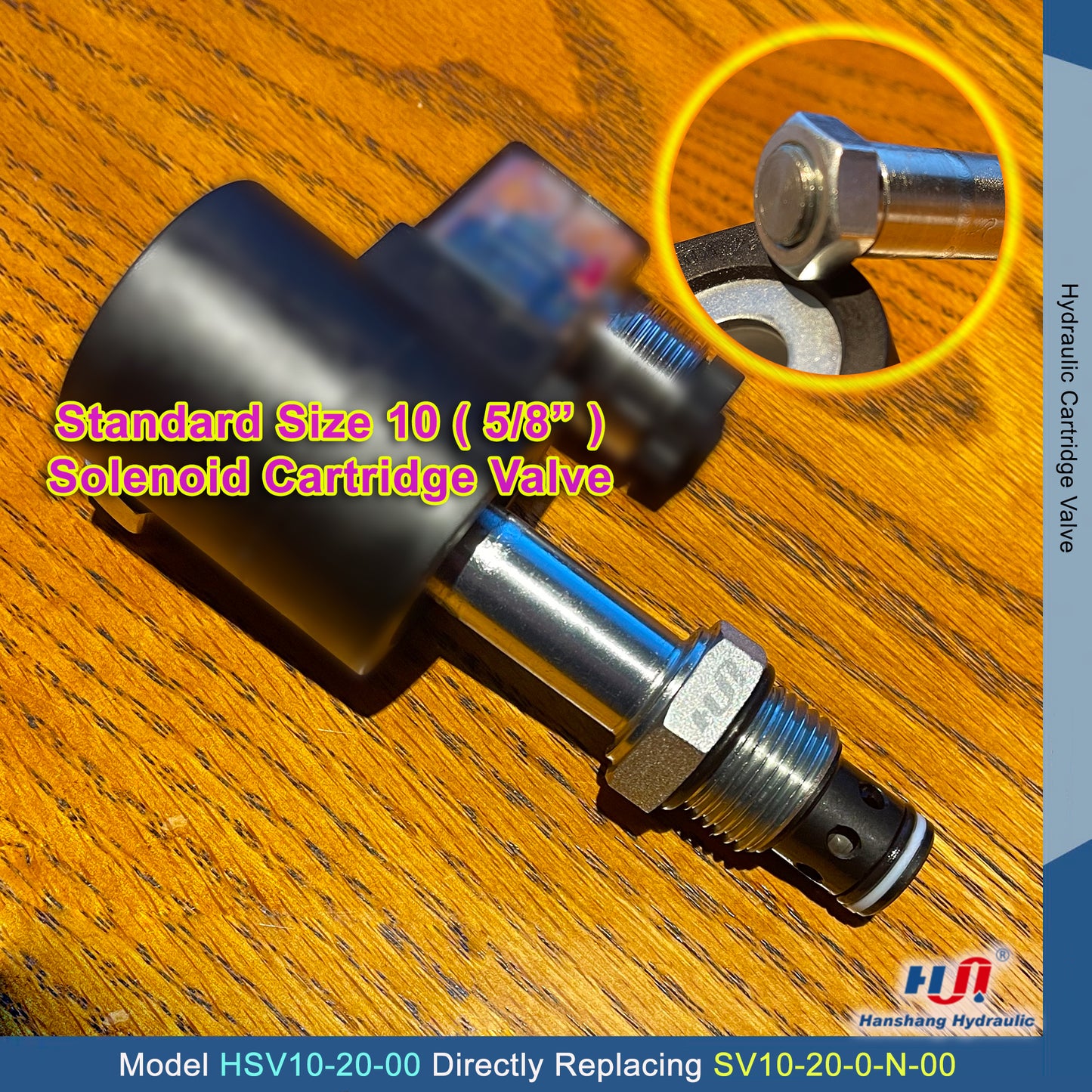

• Industry standard cavity: VC10-2, use size 10 Solenoids ( 5/8" diameter common cavity )
• Efficient wet-armature construction, continuous-duty solenoid
• Anodized 6061-T6 aluminum alloy rated at 207 bar Steel rated at 350 bar
• Suitable fluid media: Mineral-based fluids, Fuel, Oil, Water
• Filtration: critical application - ISO 18/16/13 and non-critical application - ISO 19/17/14

Product Name:

• HSV10-20-00, Normally-Closed, Two-Way, Two-Position, Pilot-Operated Cartridge Solenoid Valve
• Direct Replacement for SV10-20 ( SV10-20-00-N-00 )

Features:

• Continuous-duty solenoid.
• Efficient wet-armature construction.
• Optional coil voltages and terminals
• Manual override option
• Industry standard cavity ( size 10, 5/8" common cavity )
• Compact size

Specifications:

• Maximum Pressure 3000 PSI
• Maximum Flow Rate 16 GPM
• Diameter 5/8" ( Use Size 10 Solenoids )
• Anodized 6061-T6 Aluminum Alloy Body
• Suitable media: Mineral-based fluids, Fuel, Oil, Water
• Filtrations: Critical Application - ISO 18/16/13 and Non-Critical Application - ISO 19/17/14

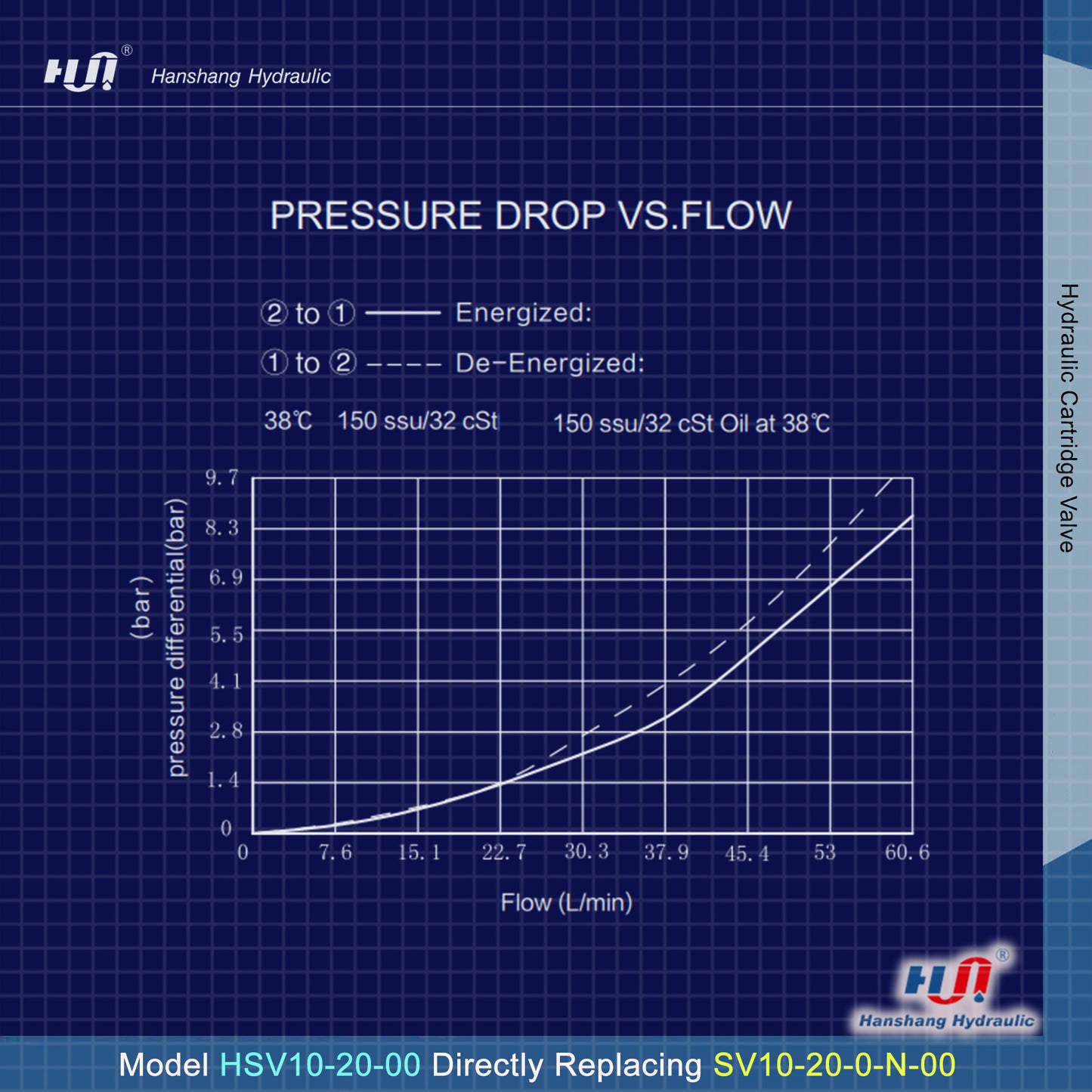

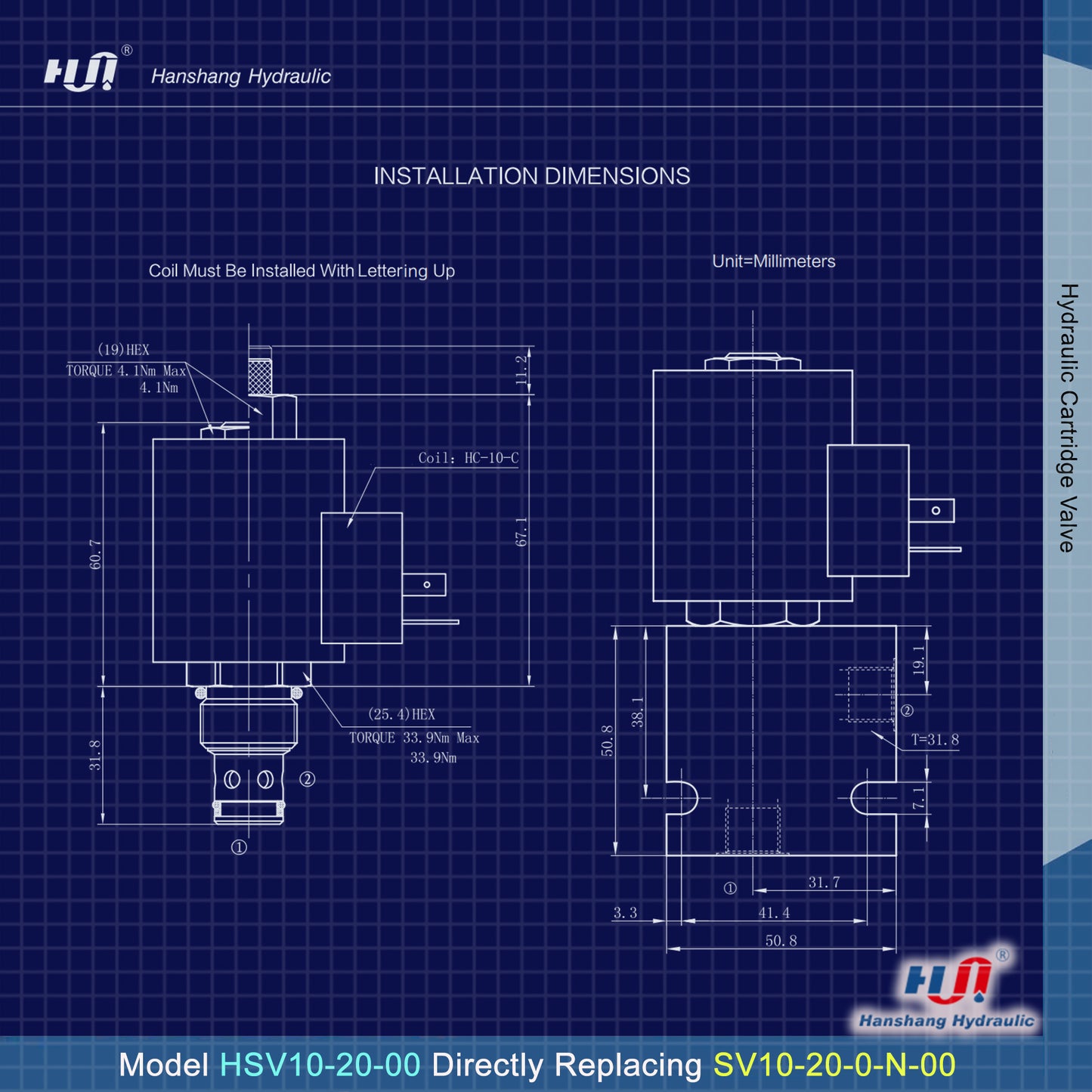

Dimensions:

• 3.5" x 1" x 1"
• 5/8" Diameter ( Size 10 )

Weight:

• 6 oz

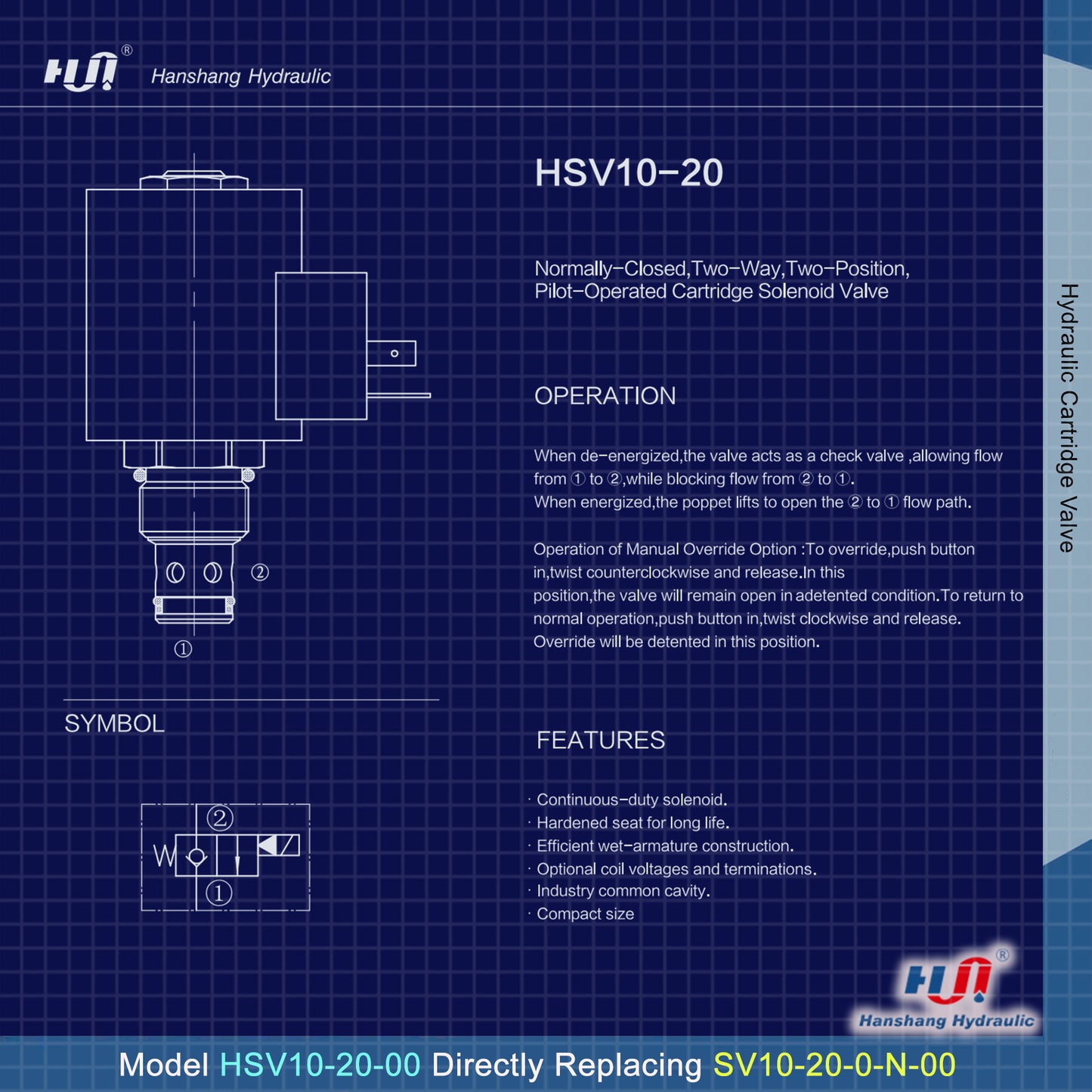

OPERATION ( See Listing Diagram Image ) :

• When de-energized, the cartridge valve acts as a check valve, allowing flow from (1) to (2) , while blocking flow from (2) to (1).
• When energized, the poppet lifts to open the (2) to (1) flow path.

Operation of Manual Override Option:

• To override, push button in, twist counter clockwise and release. In this position, the valve will remain open in a detented condition.
• To return to normal operation, push button in, twist clockwise and release. Override will be detented in position.
