QY201-DC DIN 43650 Type-A 3 Prong Connector Plug with LED Indicator
QY201-DC DIN 43650 Type-A 3 Prong Connector Plug with LED Indicator
Regular price
$11.87 USD
Regular price
$15.95 USD
Sale price
$11.87 USD
Unit price
per
We Will Update Once Inventory Is Available.
Please Use Contact Form for Whole Sale or Pricing Quote.

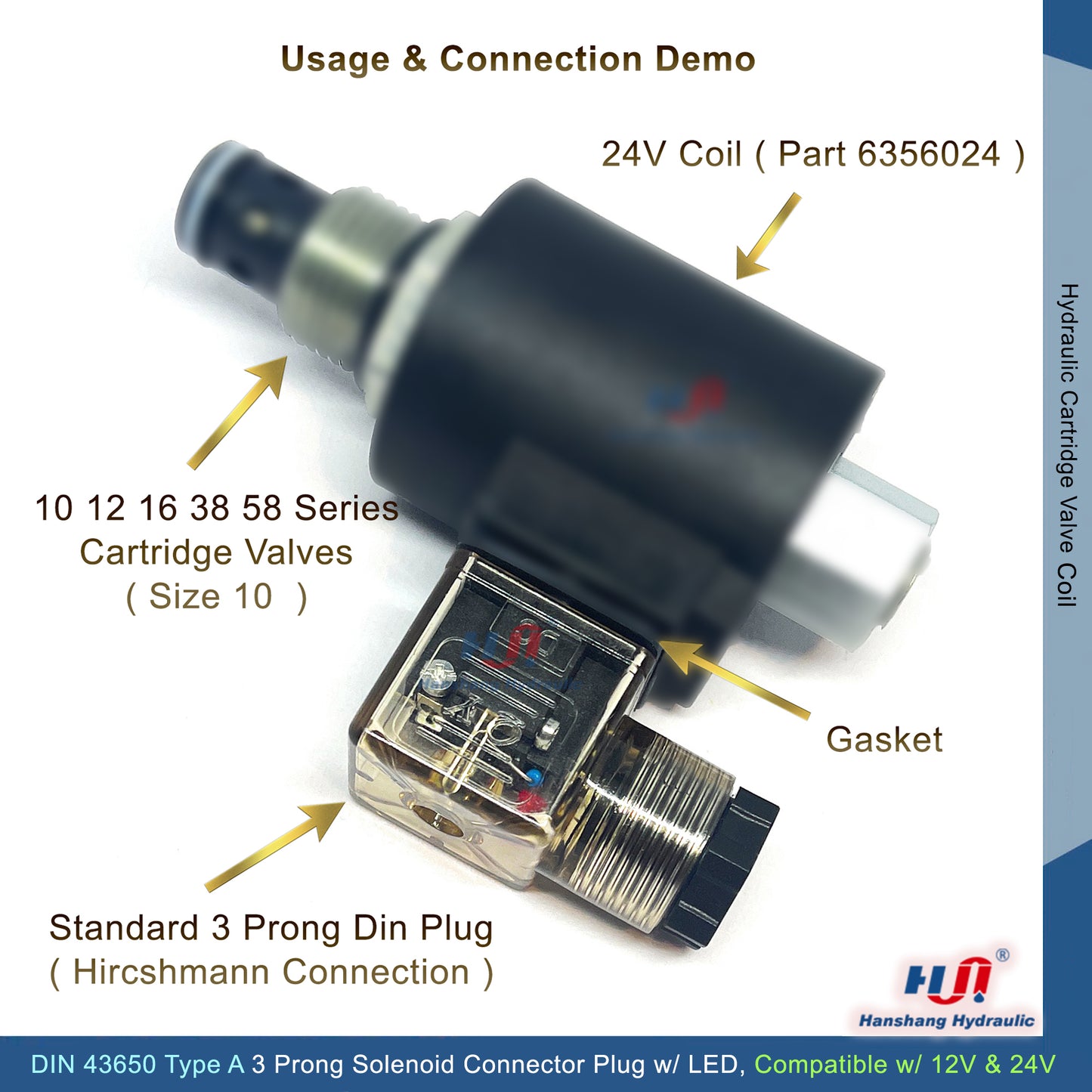

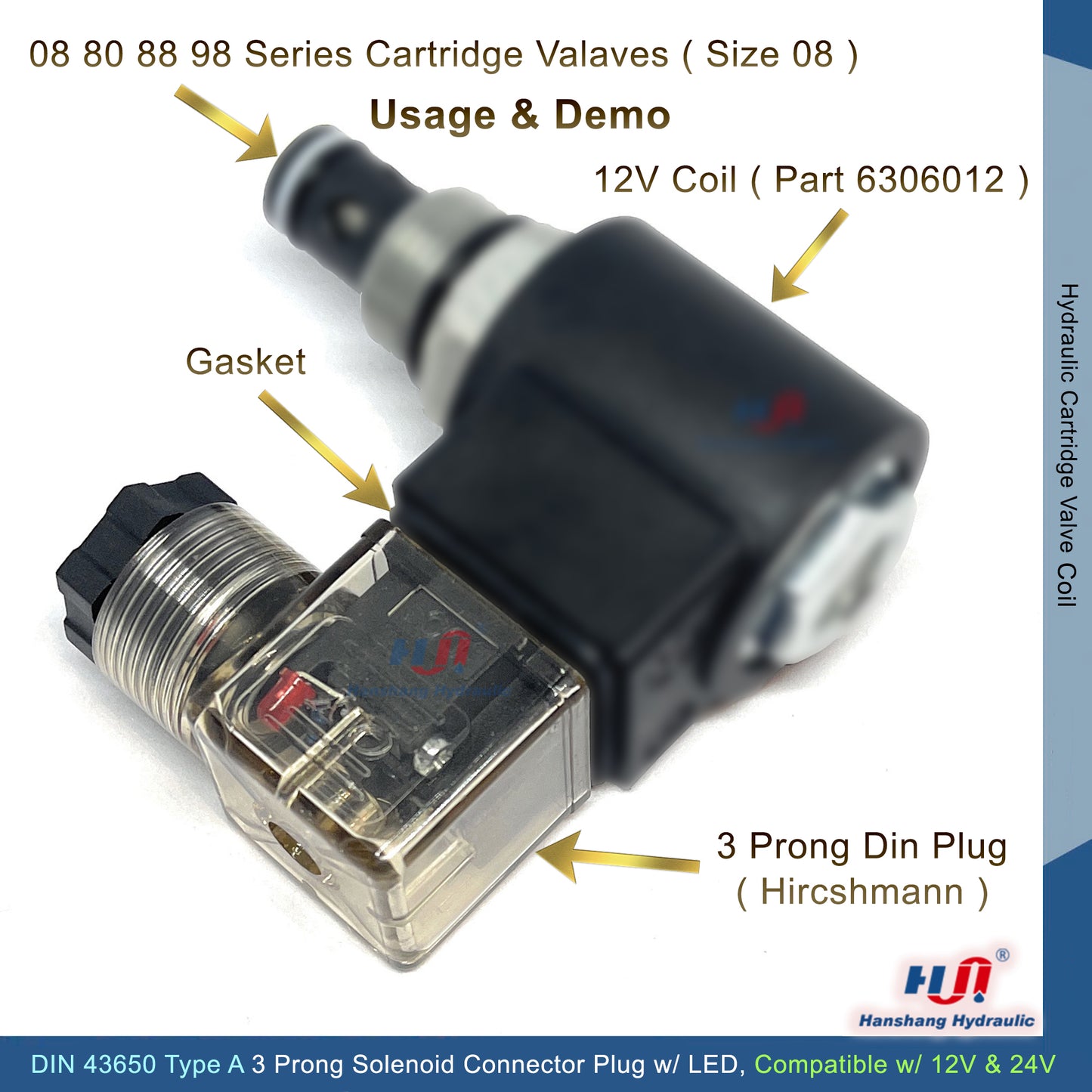

- Used for All 3-Prong DIN Solenoid Valve Coil Connectors
- Built-in LED indicator light to Lit If DIN Connector Is Active
- 12v Connector and 24v Connector, Compatible with Both 12V and 24V Solenoid Valve Coils

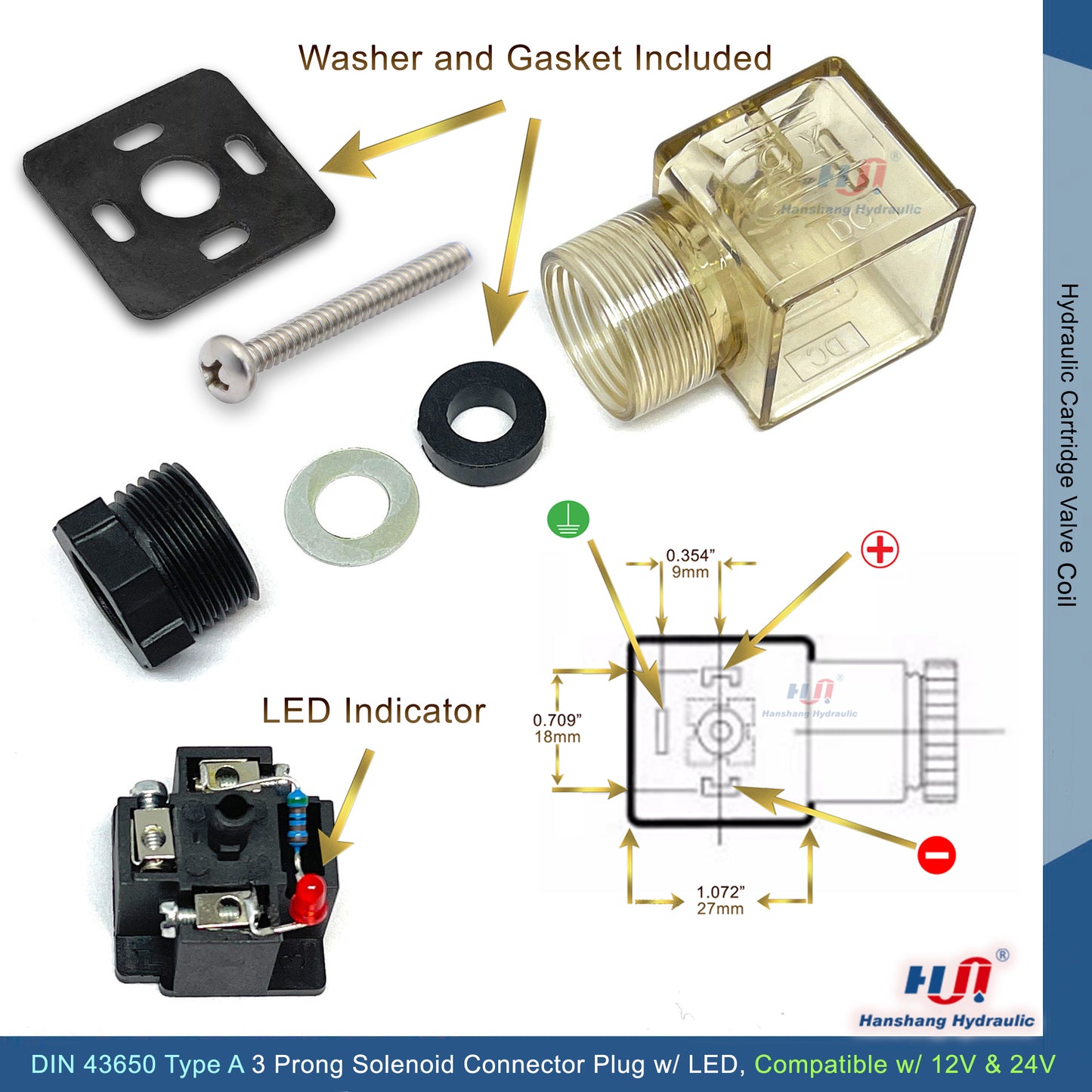

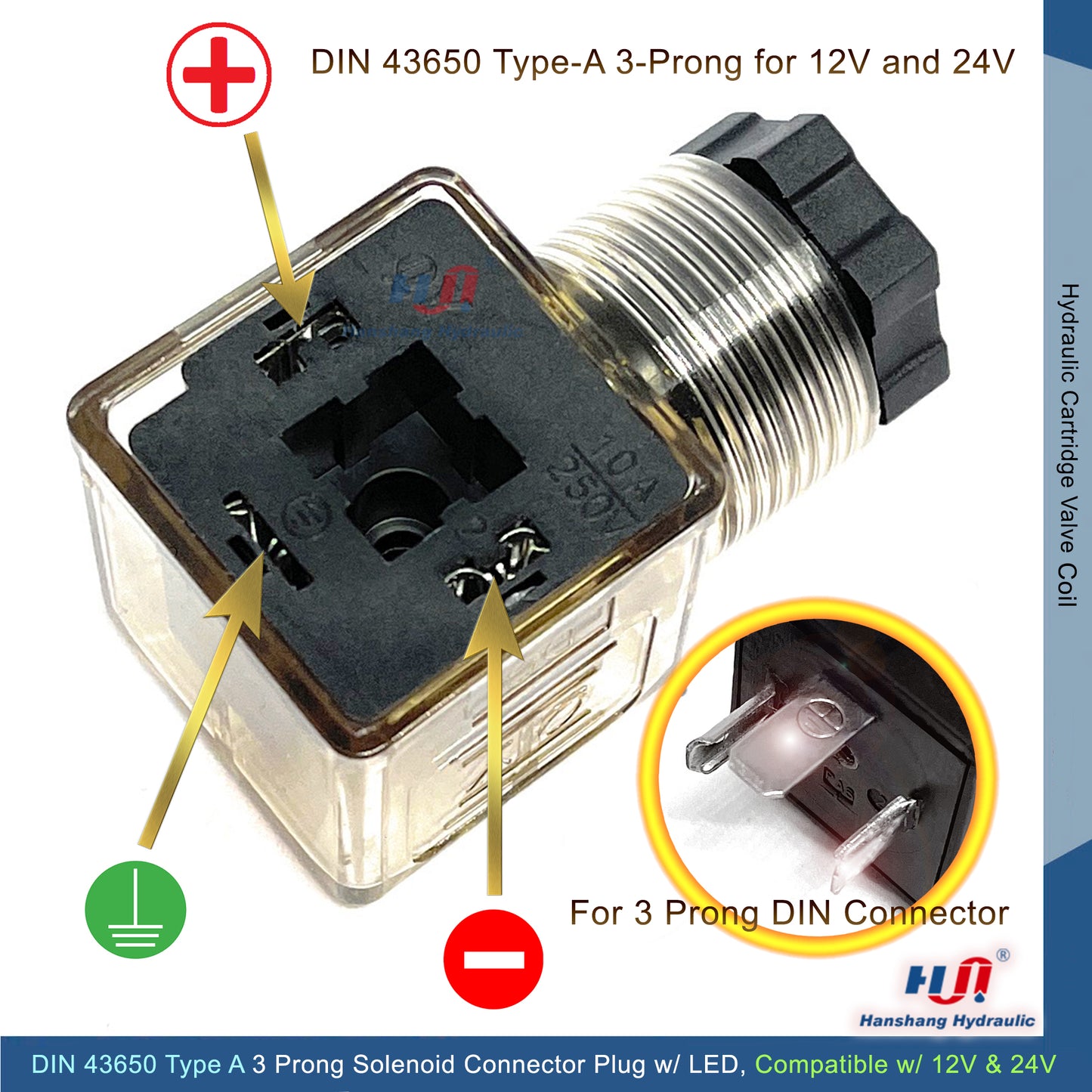

- Pin form: 2 + 1 GND, Wiring Tunnel Diameter: 8.48mm ( 0.334" ), Pin Spacing: 18mm ( 0.709" )
- Degree of protection: IP65 (under normal installation of IEC 60529)
- Working voltage: AC250V DC300v, Rated current: 10A

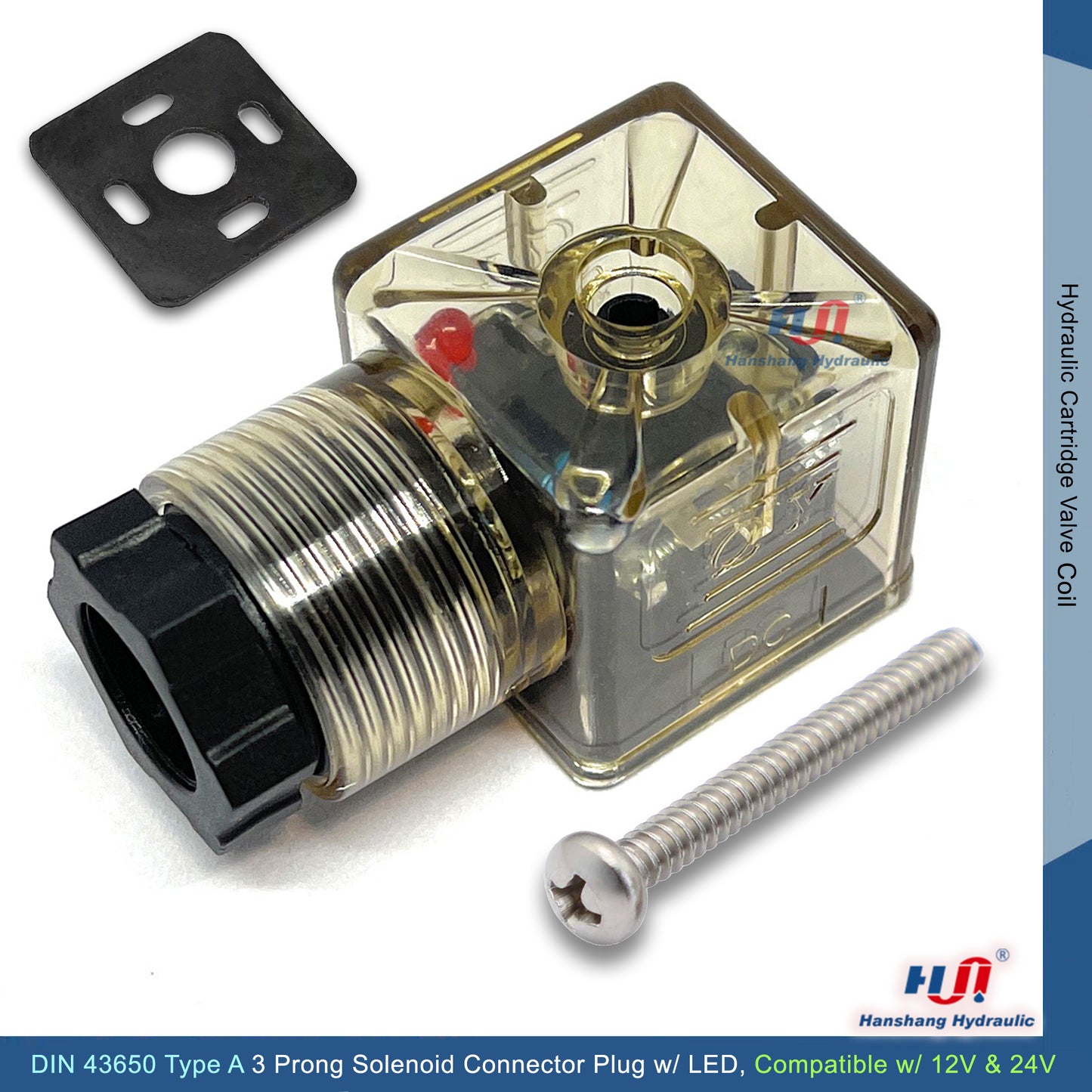

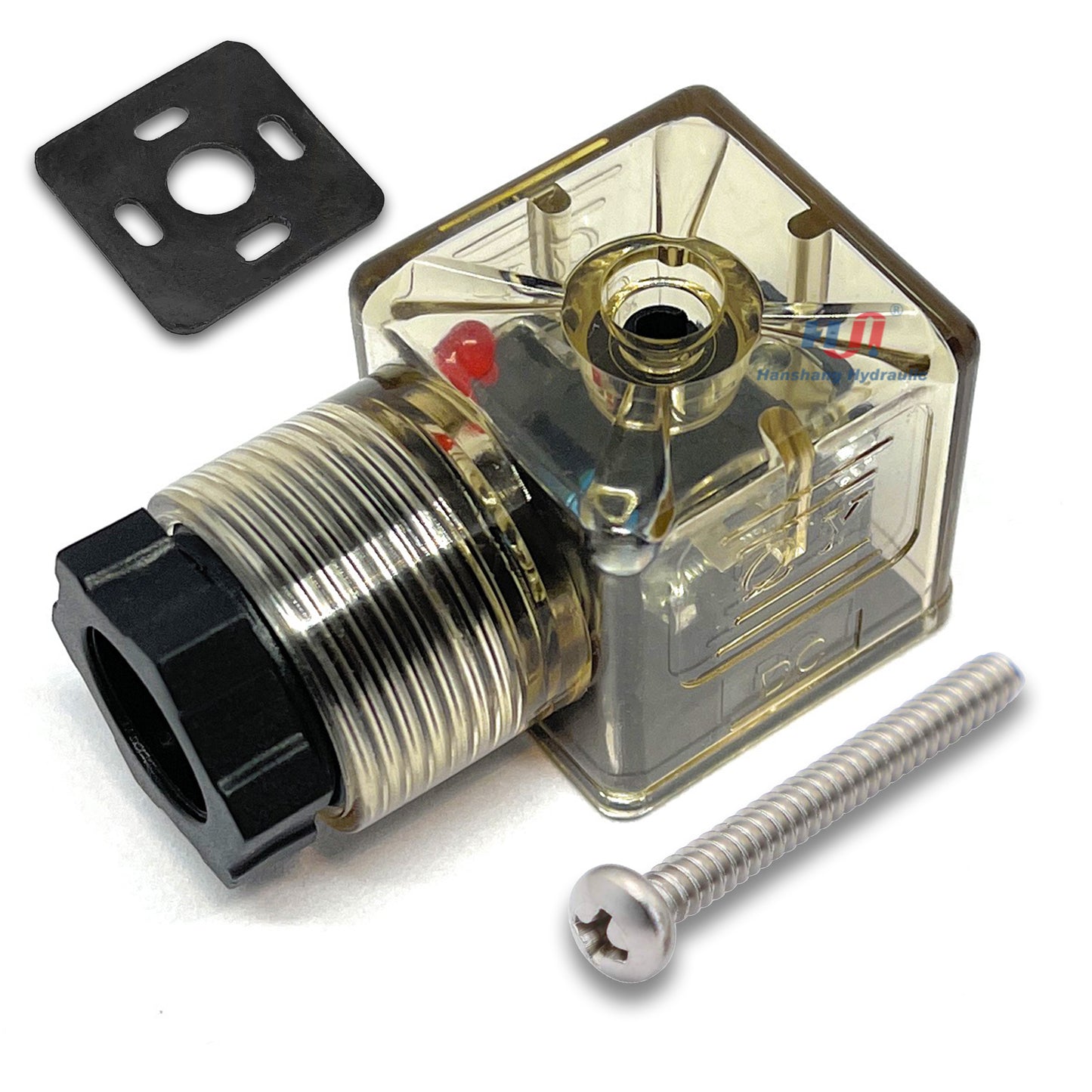

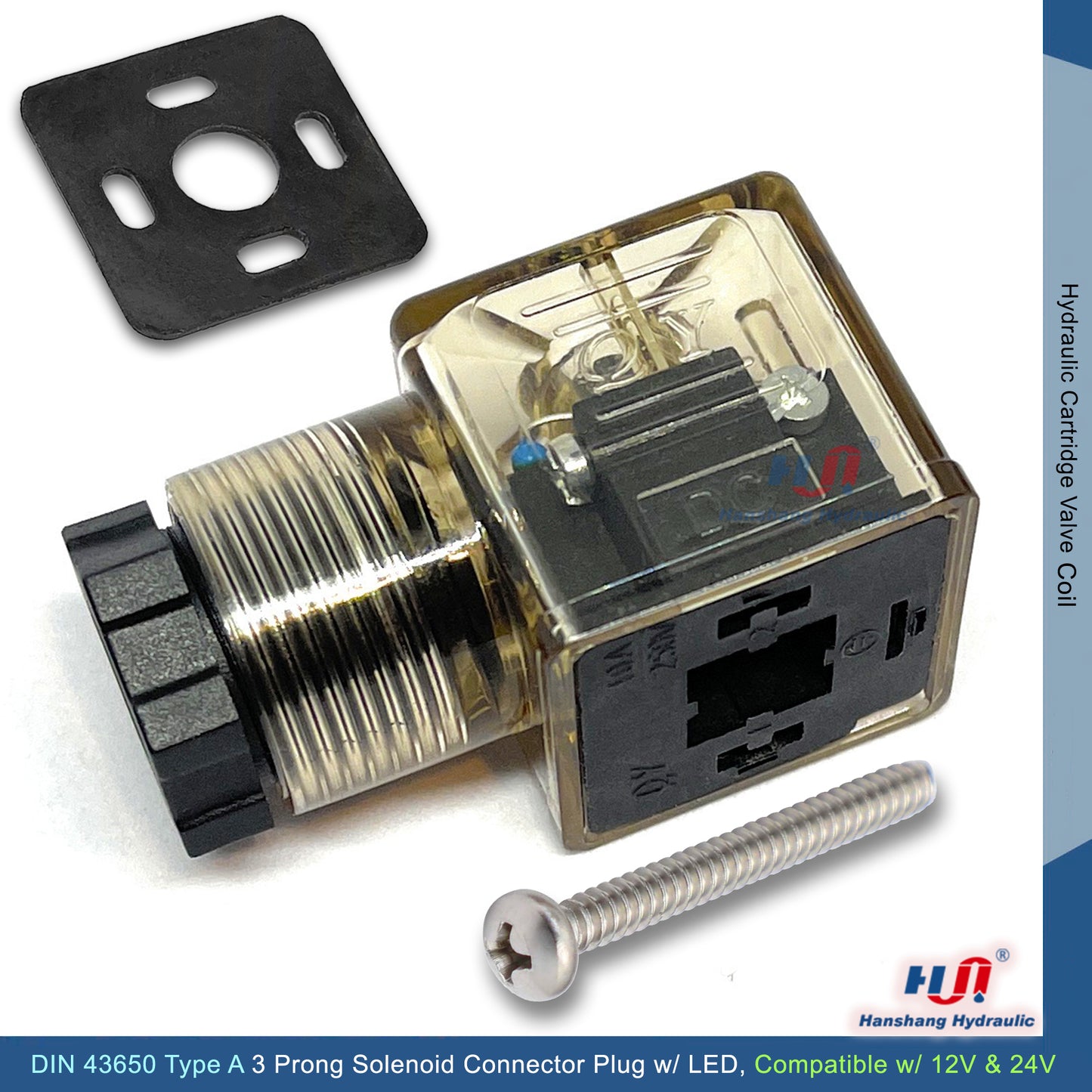

- 1 M3-28 Mounting Screw, 1 Gasket, 1 Washer Included
