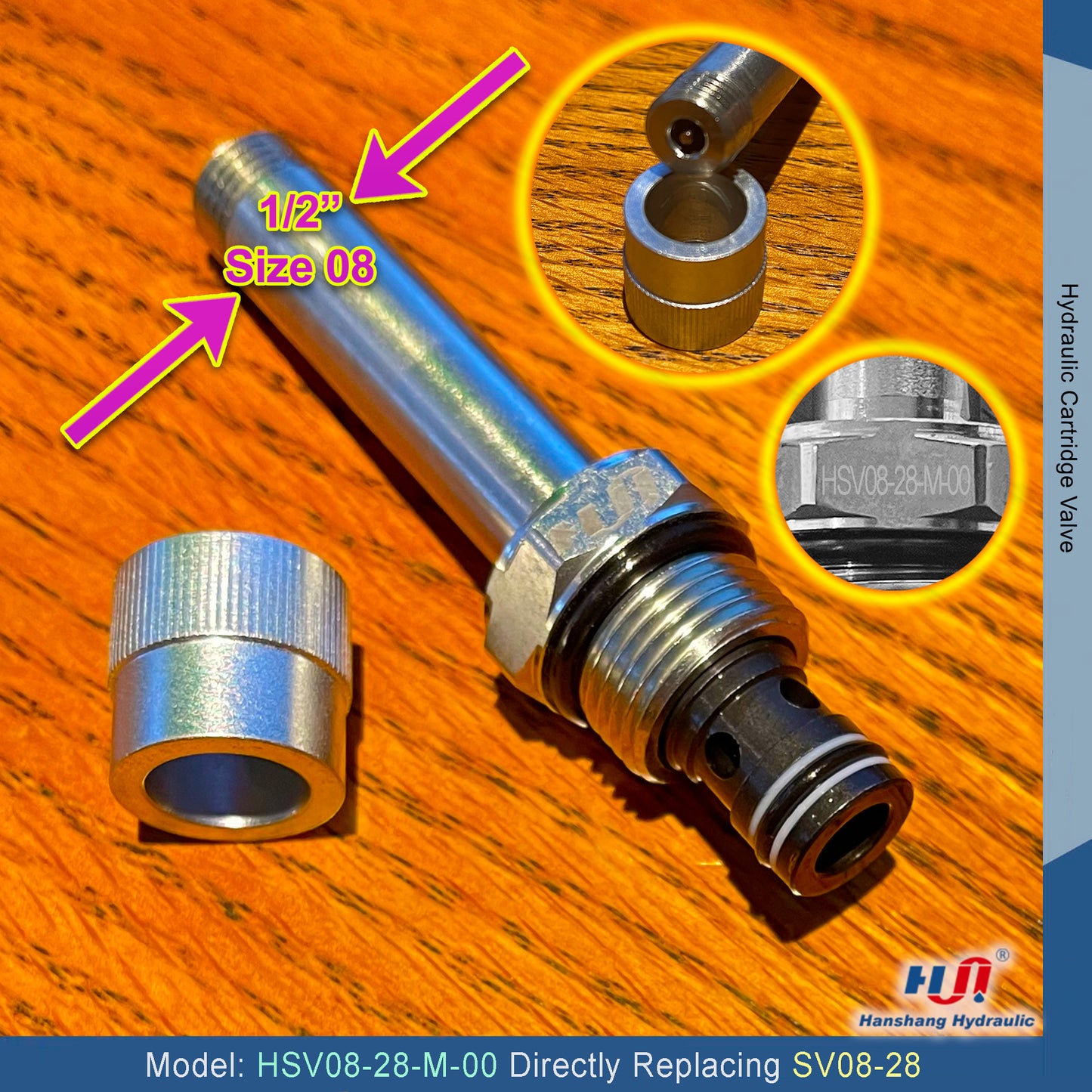

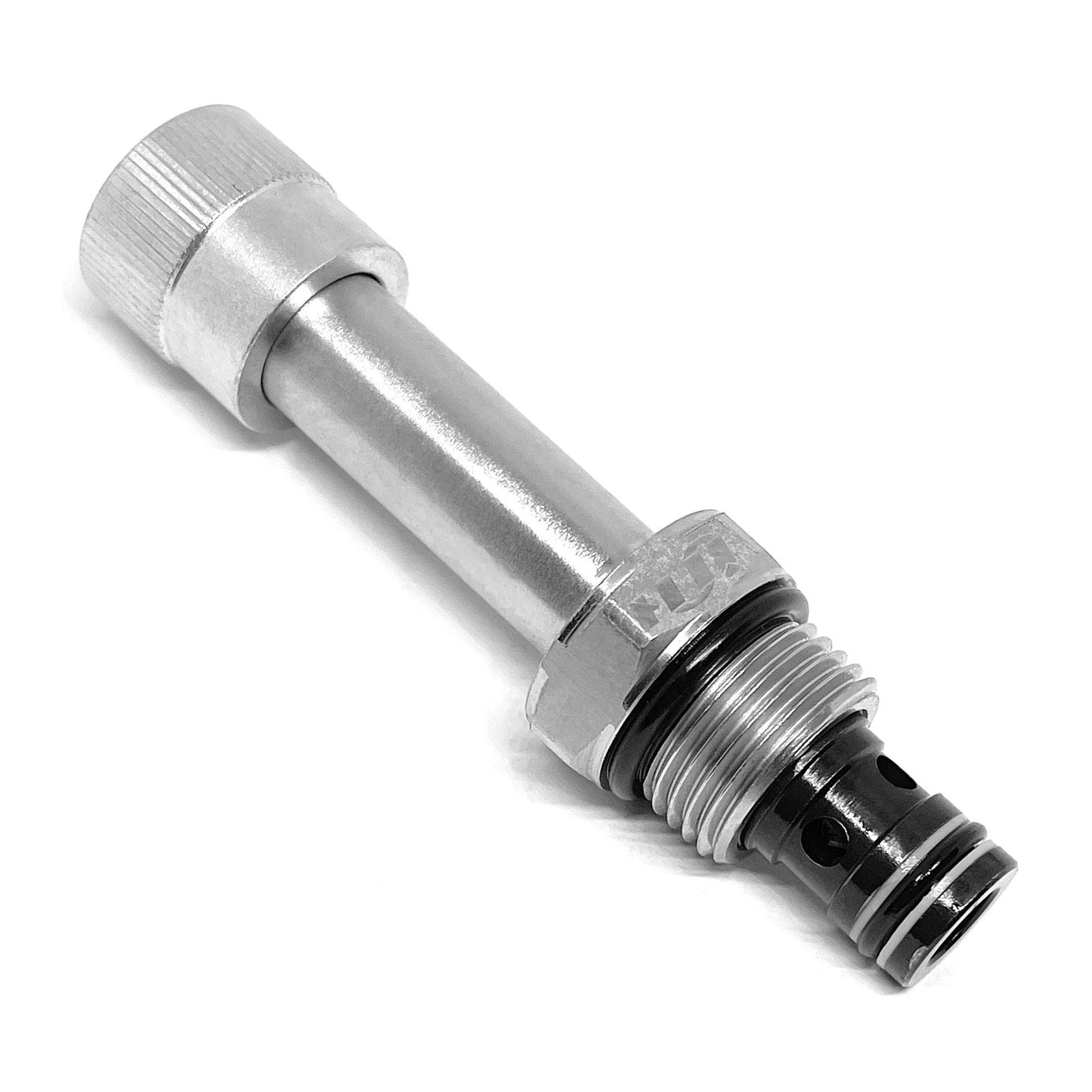

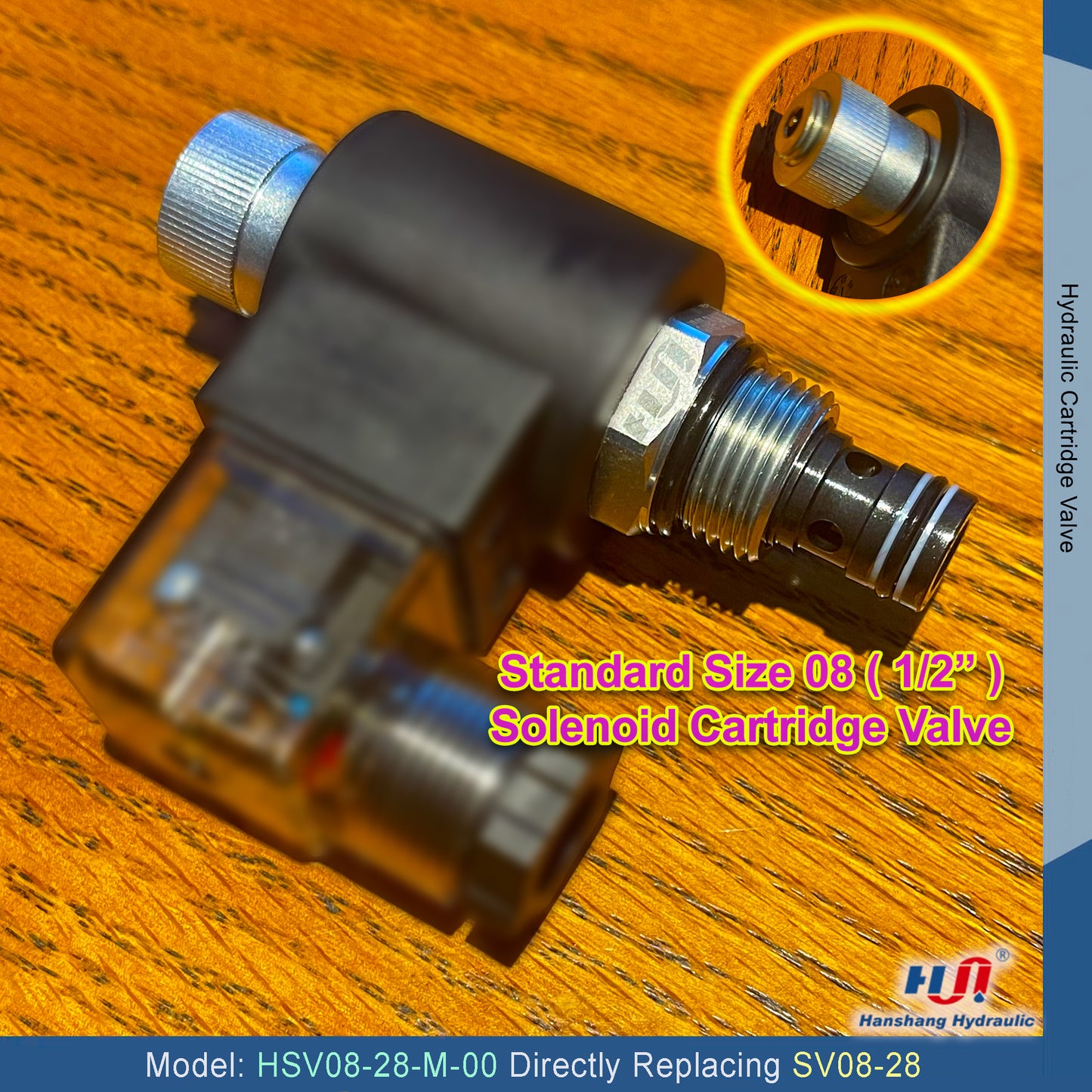

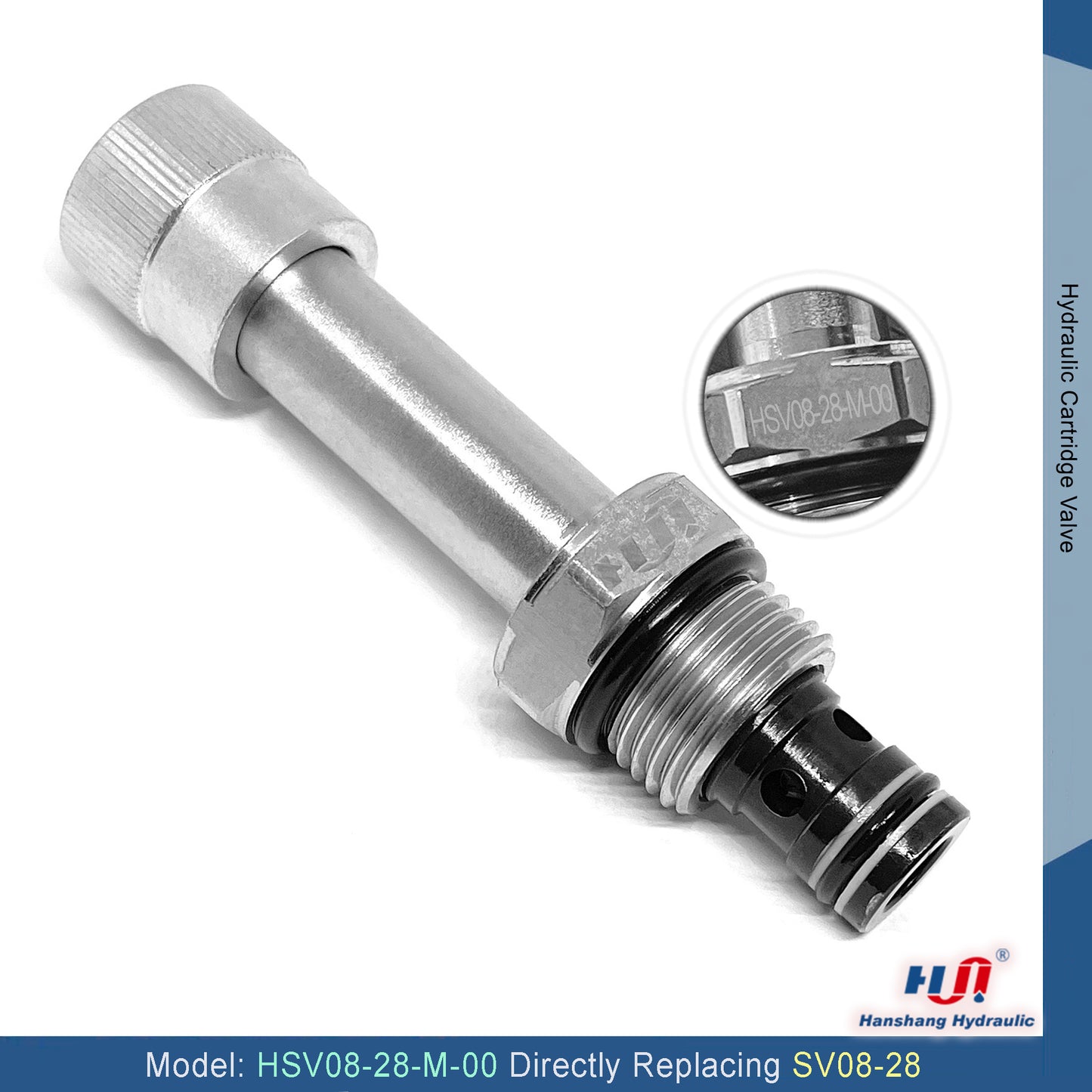

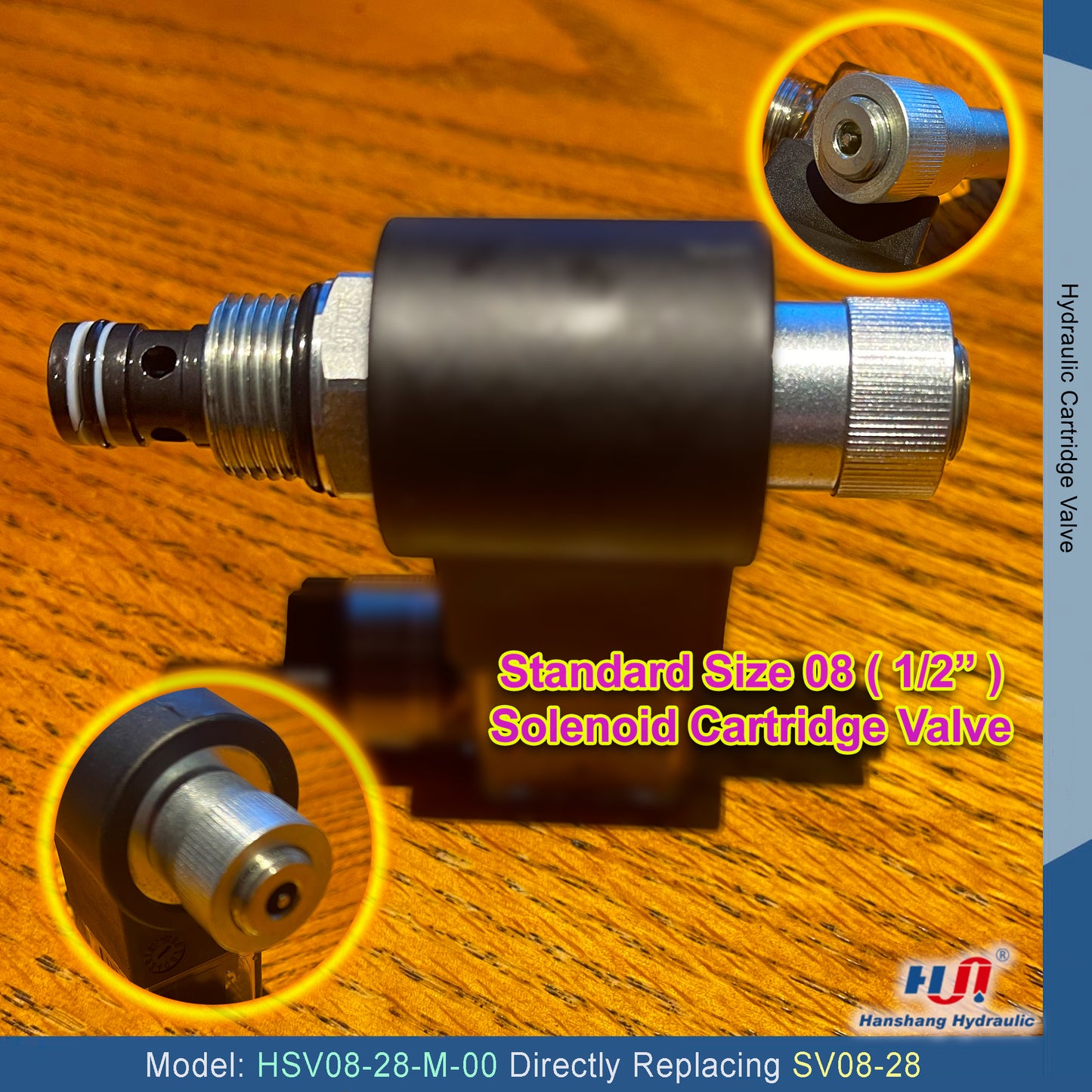

HSV08-28-M-00 Cartridge Valve ( SV08-28-M-00 )

• Normally-closed, 2-Way, 2-position, bi-directional cartridge solenoid valve
• SV08-28 direct replacement
• Maximum flow rate 5.3 GPM, maximum pressure 3620 PSI ( 250 Bar )
• Industry standard cavity: 80-2, use size 08 Solenoids ( 1/2" common cavity )
• Efficient wet-armature construction, continuous-duty solenoid
• Anodized 6061-T6 aluminum alloy rated at 207 bar Steel rated at 350 bar
• Suitable fluid media: Mineral-based fluids, Fuel, Oil, Water
• Filtration: critical application - ISO 18/16/13 and non

Features:

• Continuous-duty solenoid.
• Efficient wet-armature construction.
• Optional coil voltages and terminals
• Manual override option
• Industry standard cavity ( size 08, 1/2" common cavity )
• Compact size

Specifications:

• Maximum Pressure 3620 PSI
• Maximum Flow Rate 5.3 GPM
• Diameter 1/2" ( Use Size 08 Solenoids )
• Anodized 6061-T6 Aluminum Alloy Body
• Suitable media: Mineral-based fluids, Fuel, Oil, Water
• Filtrations: Critical Application - ISO 18/16/13 and Non-Critical Application - ISO 19/17/14

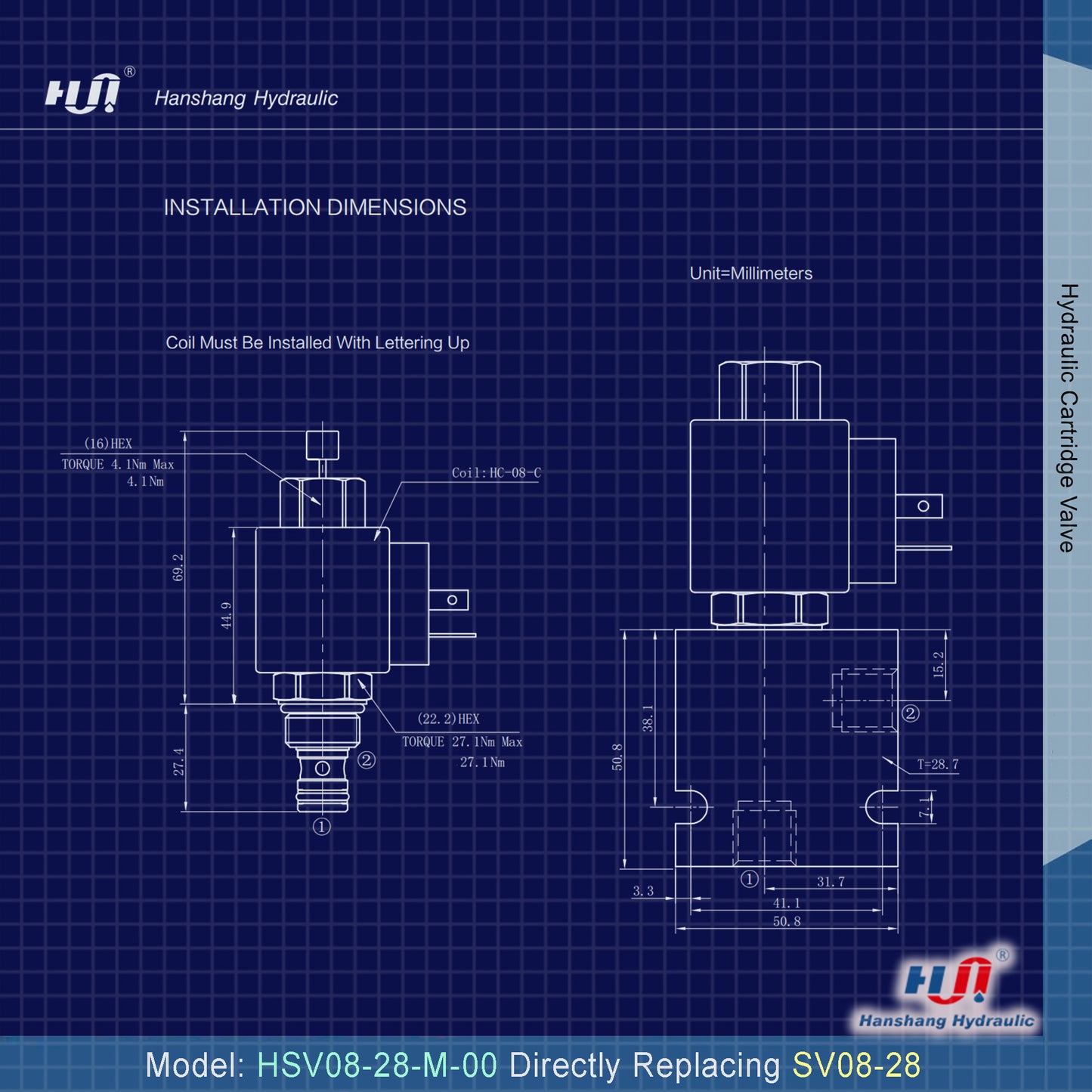

Dimensions:

• 3" x 1" x 1"
• 1/2" Diameter ( Size 08 )

Weight:

• 3.9 oz

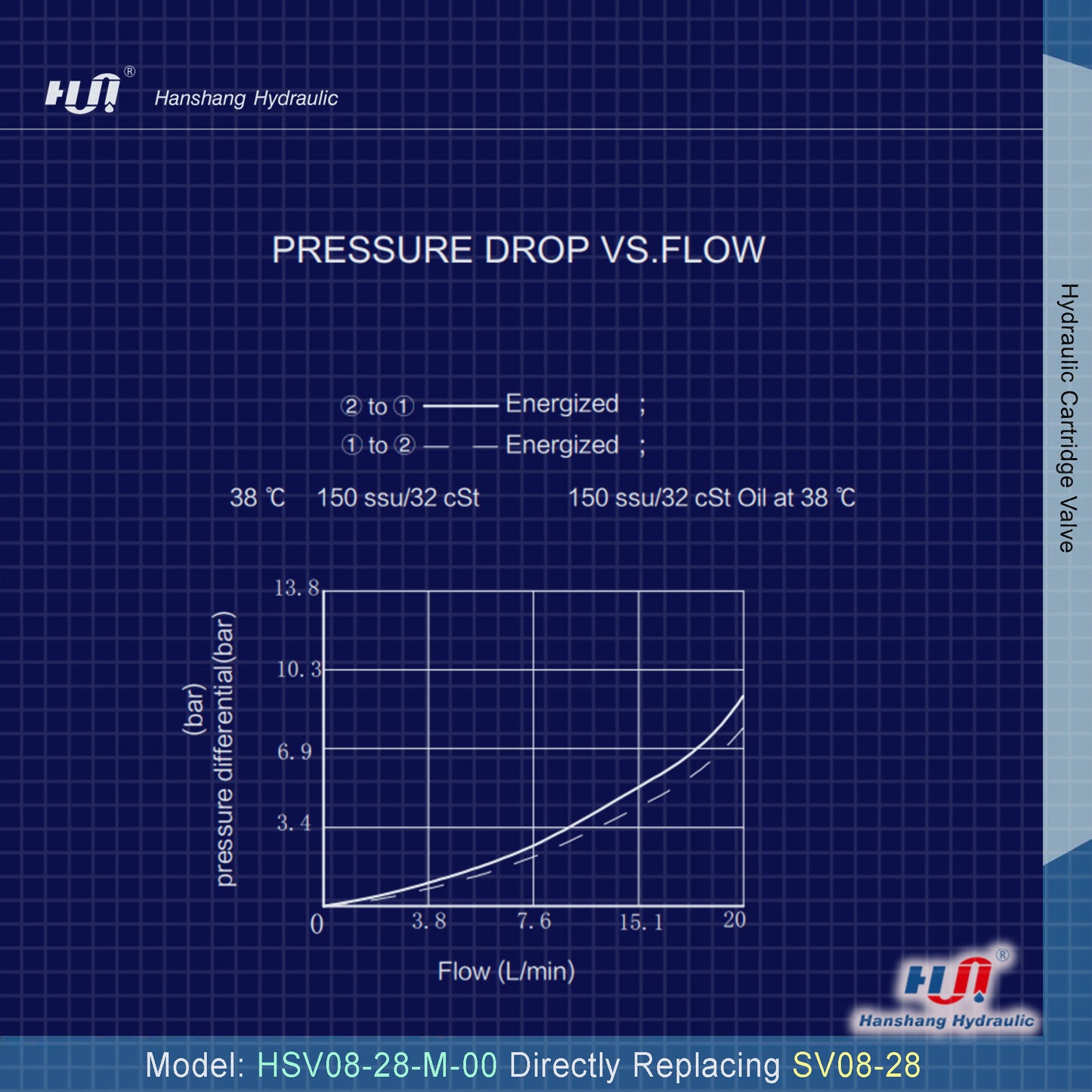

OPERATION ( See Listing Diagram Image ) :

• When de-energized, the valve blocks flow in both directions.
• When energized, the poppet shifts to allow flow in either direction.

Operation of Manual Override Option:

• To override, push button in to activate.
• To return to normal valve function, release button.
