Hanshang Hydraulic US
Z2DS6 CHECK VALVES
Z2DS6 CHECK VALVES
Regular price
$39.87 USD
Regular price
$55.95 USD
Sale price
$39.87 USD
Unit price
per
We Will Update Once Inventory Is Available.
Please Use Contact Form for Whole Sale or Pricing Quote.

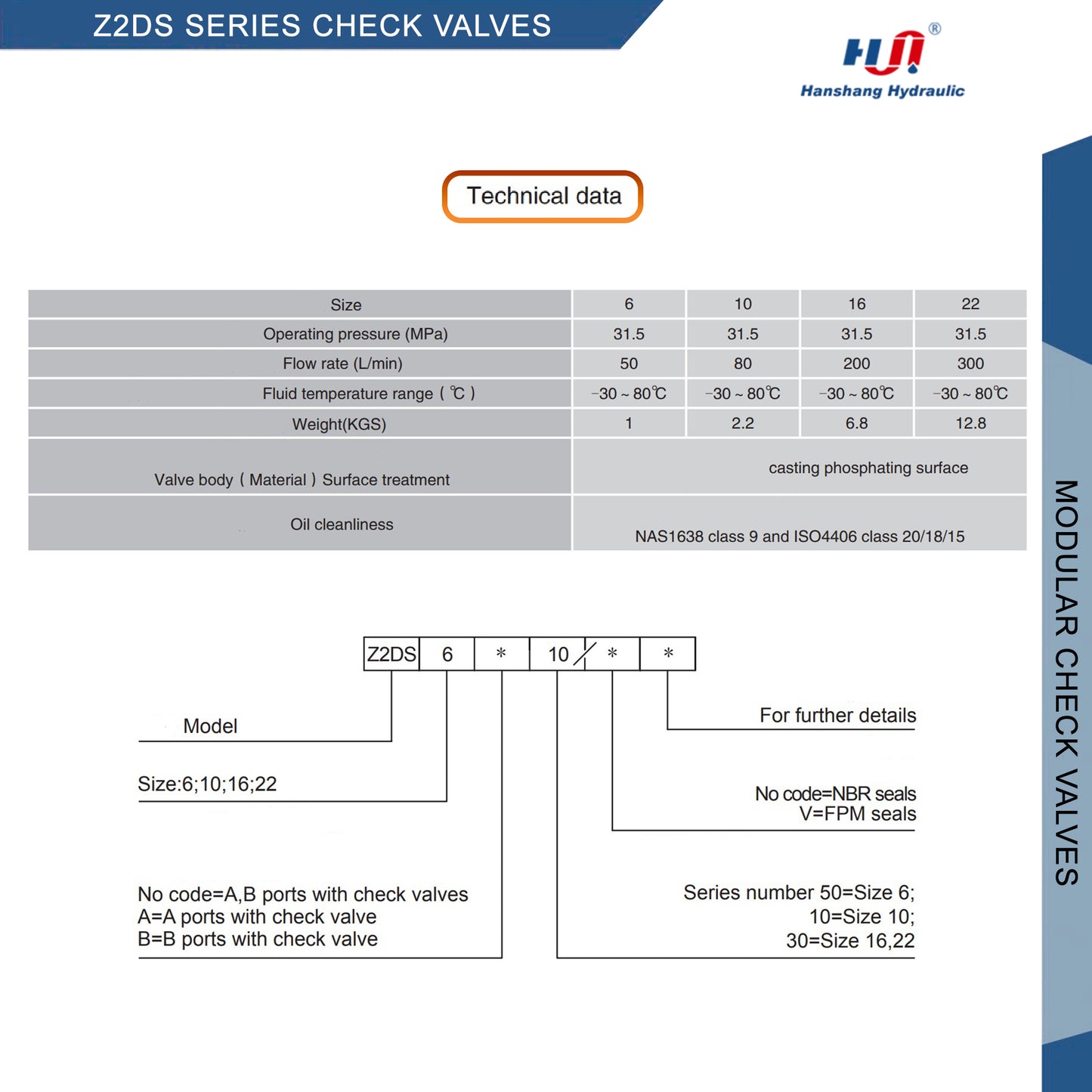

Z2DS SERIES PILOT CONTROLLED MODULAR CHECK VALVES

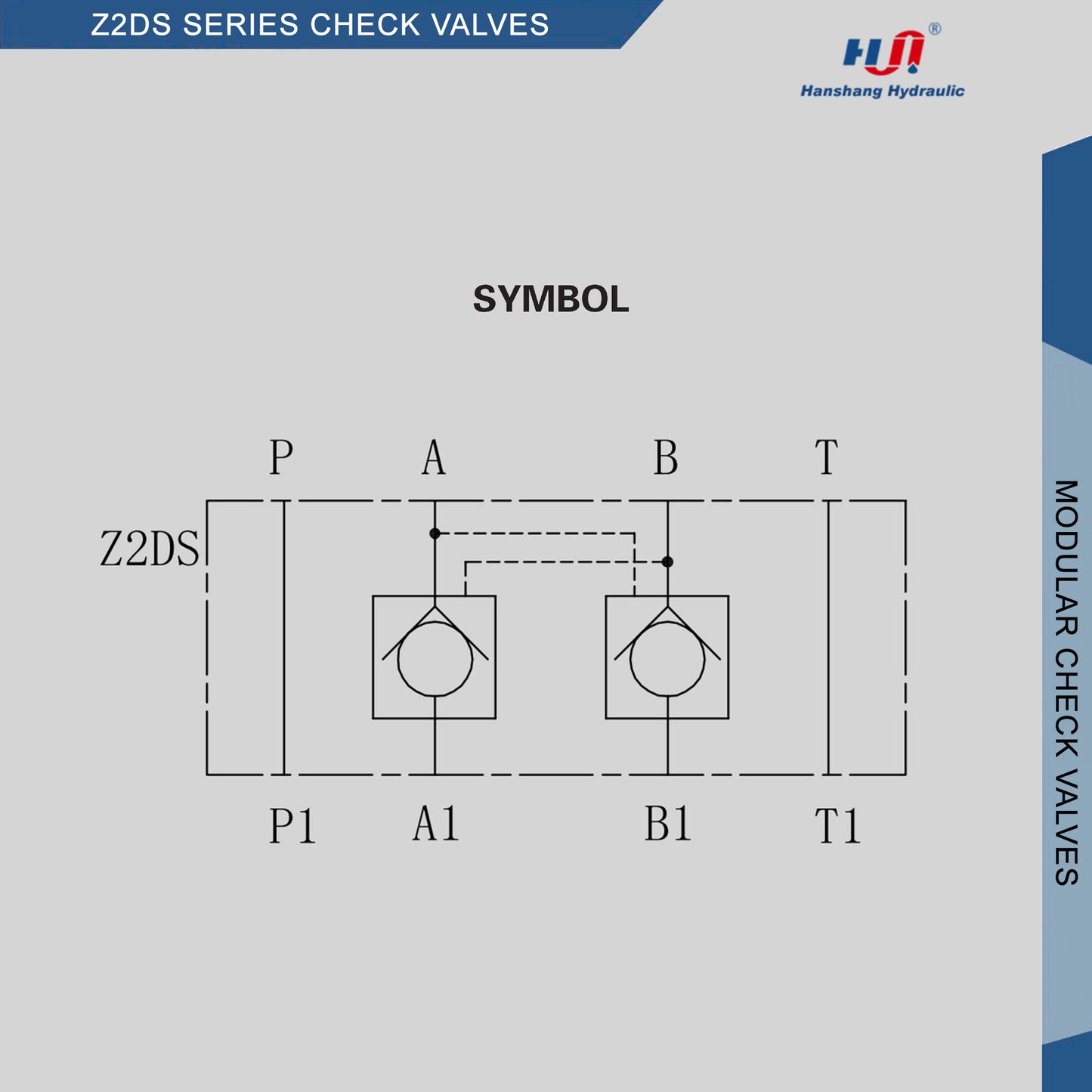

Z2DS series are pilot operated style sandwich valves. These valves used to close one or two actuator ports.
- Size: 6
- Operating pressure (MPa): 31.5 MPa
- Flow rate (L/min): 50 L/min
- Fluid temperature range(C): -30~80C
- Weight(KGS): 1 KG
- Valve body (Material) Surface treatment: casting phosphating surface
- Oil cleanliness: NAS1638 class 9 and ISO4406 20/18/15
