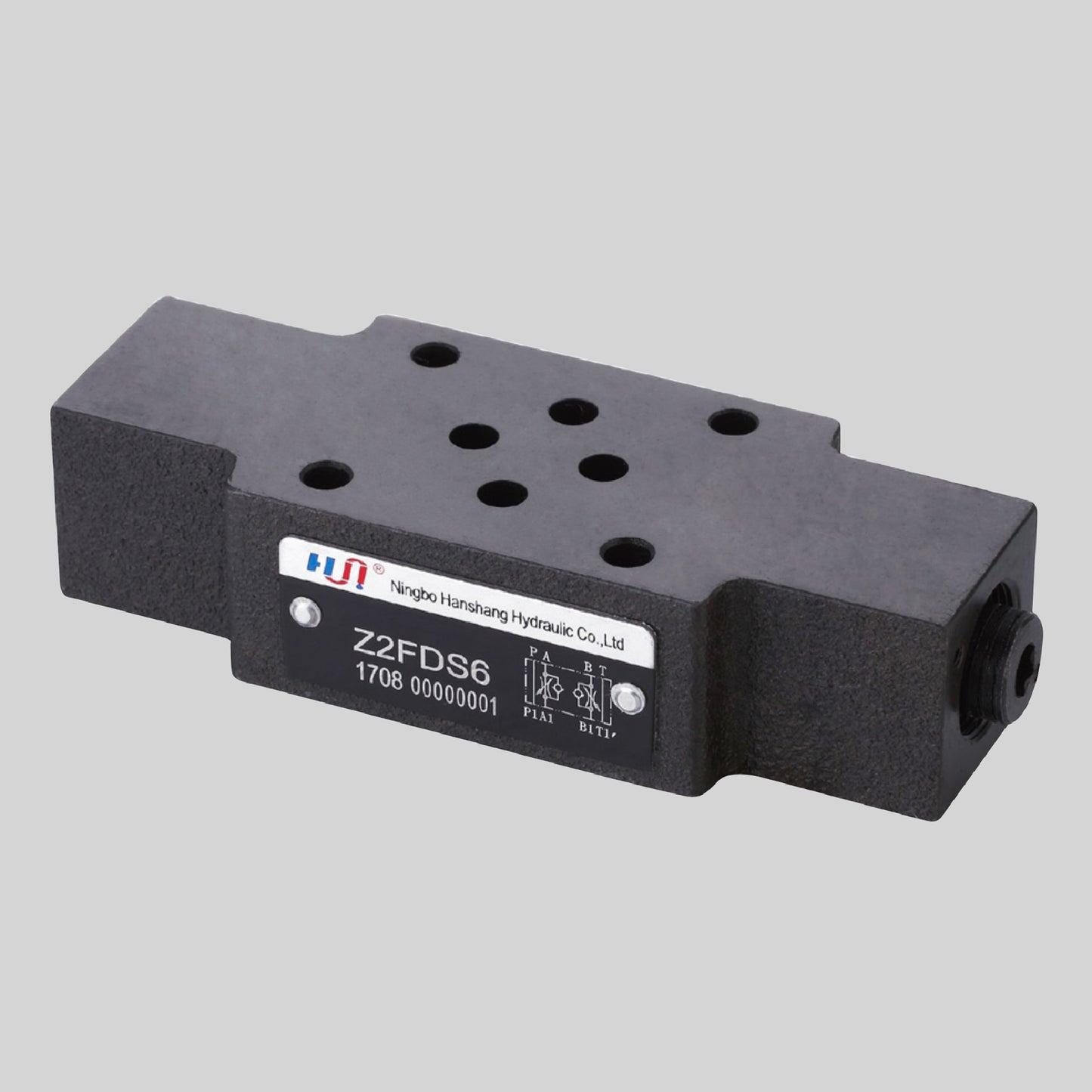

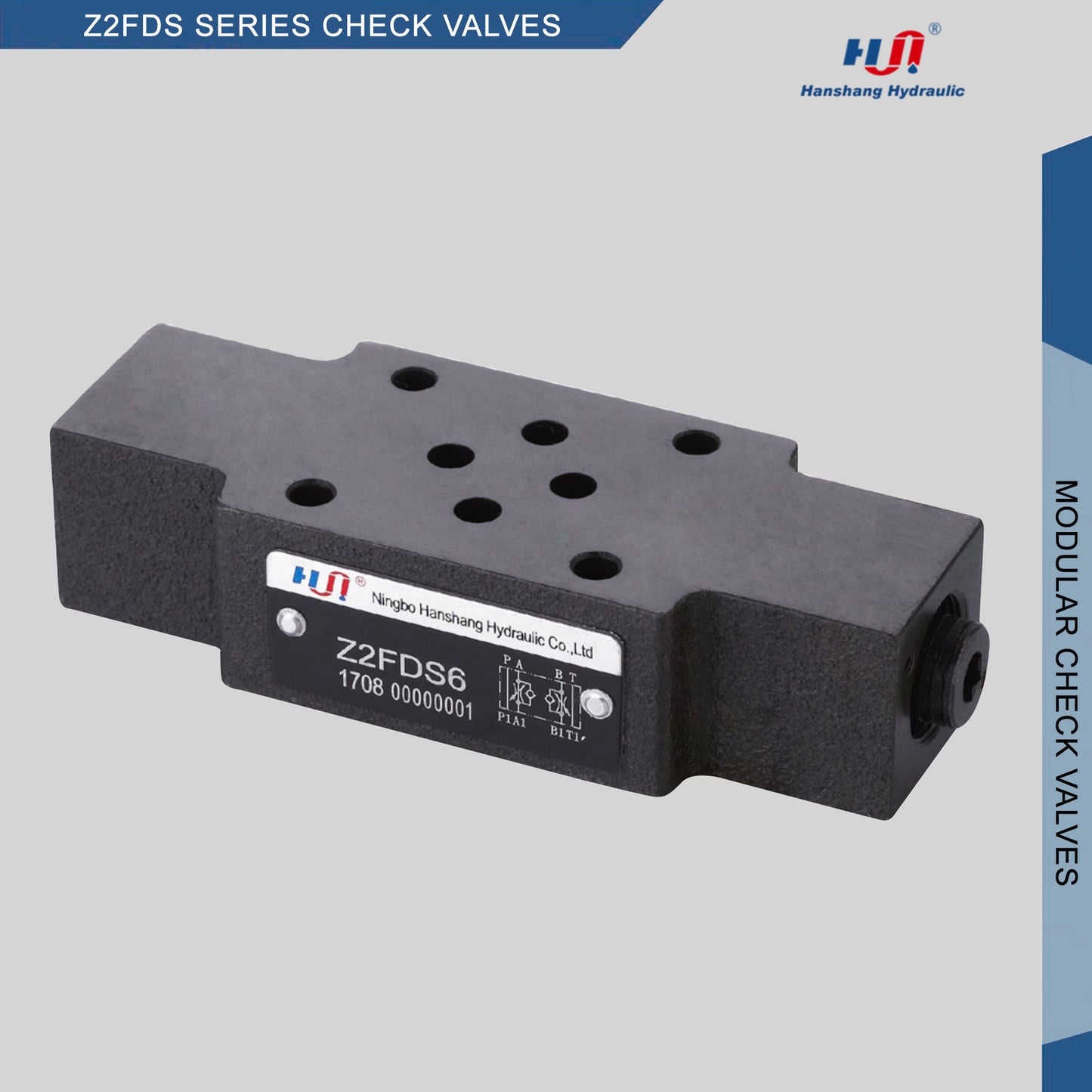

Z2FDS6S2 DOUBLE THROTTLE CHECK VALVES

Z2FDS SERIES DOUBLE THROTTLE CHECK VALVES

Z2FDS series double throttle/check valves are used to restrict flow in one direction while allowing free-flow in the opposite direction as check valves.

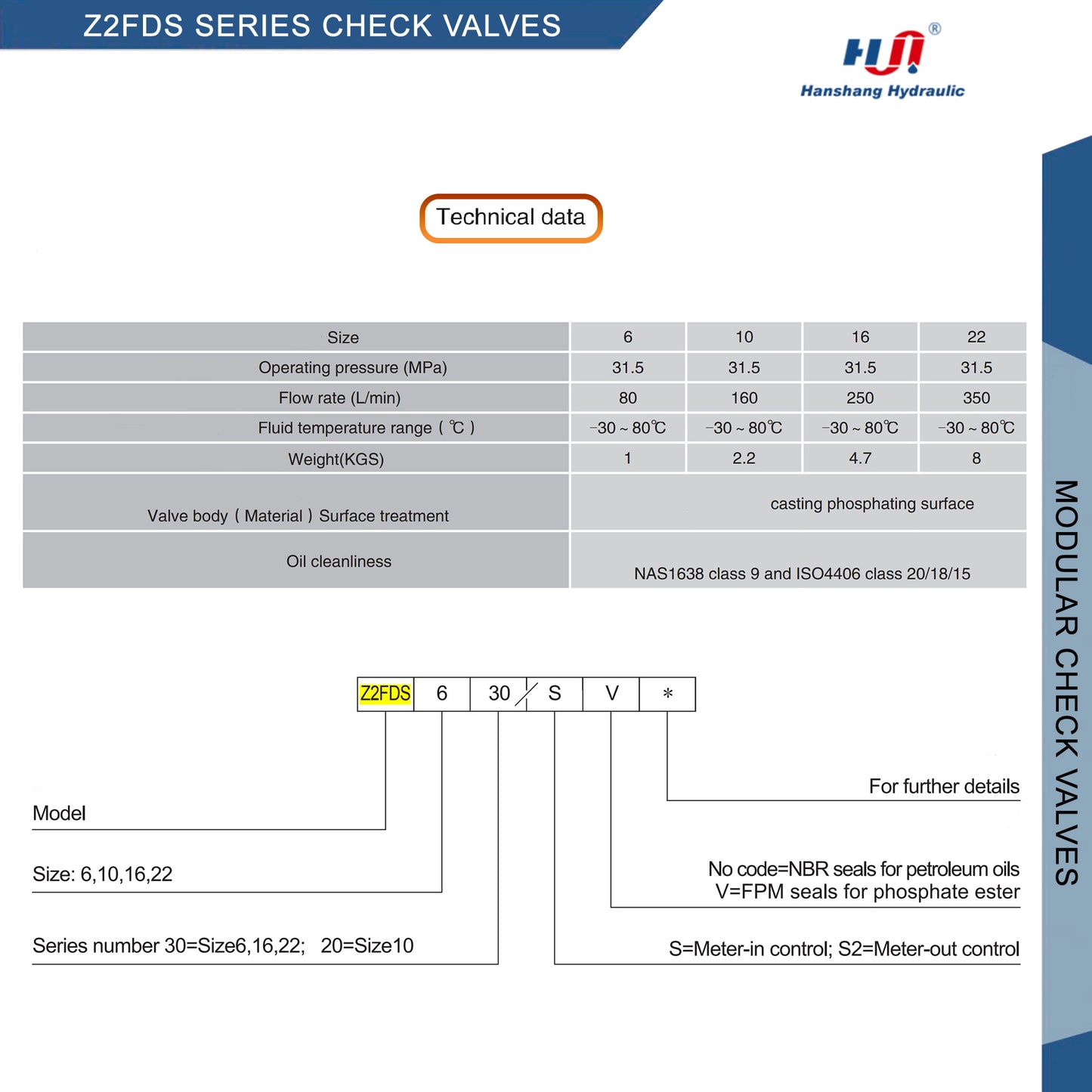

• Size: 6
• Operating pressure (MPa): 31.5 MPa
• Flow rate (L/min): 80 L/min
• Fluid temperature range(C): -30~80 C
• Weight(KGS): 1 KG
• Valve body(Material)Surface treatment: casting phosphating surface
• Oil cleanliness
• NAS1638 9??ISO4406 20/18/15?: NAS1638 class 9 and ISO4406 class 20/18/15

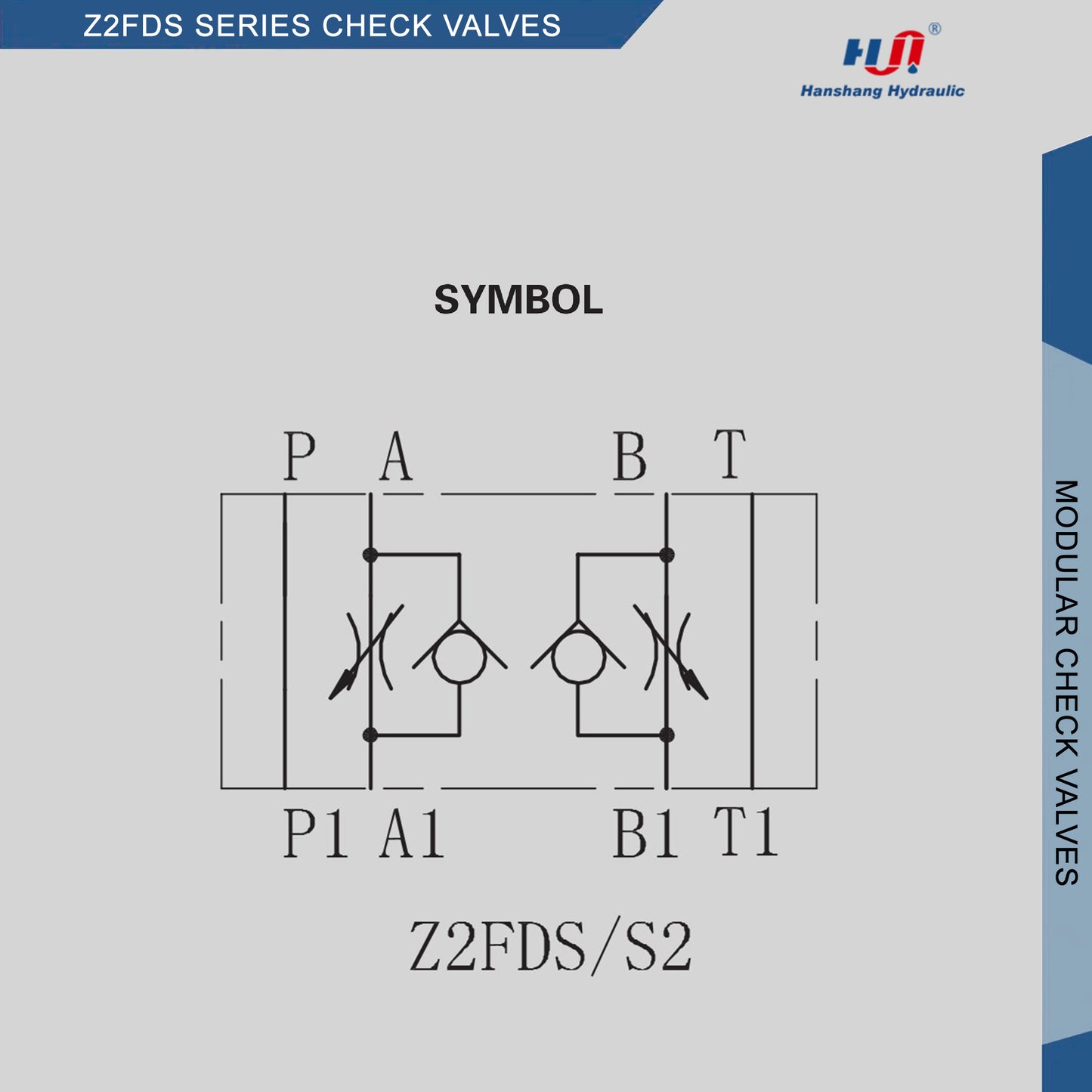

• S2=Meter-out control
